TWC (Manifold)

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

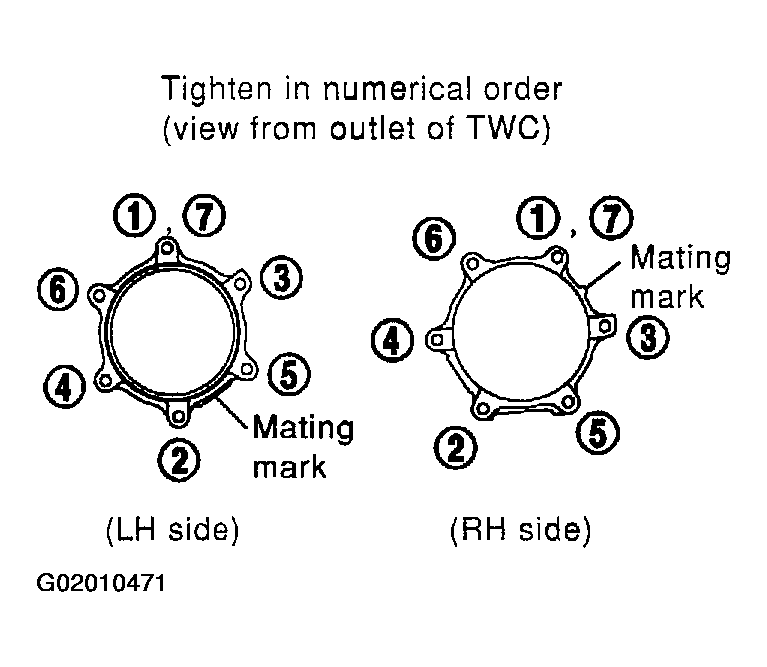

Align the mating mark as shown for locating exhaust flange.

Fig 1: Identifying TWC (Manifold) LH And RH
Courtesy of NISSAN MOTOR CO., U.S.A.

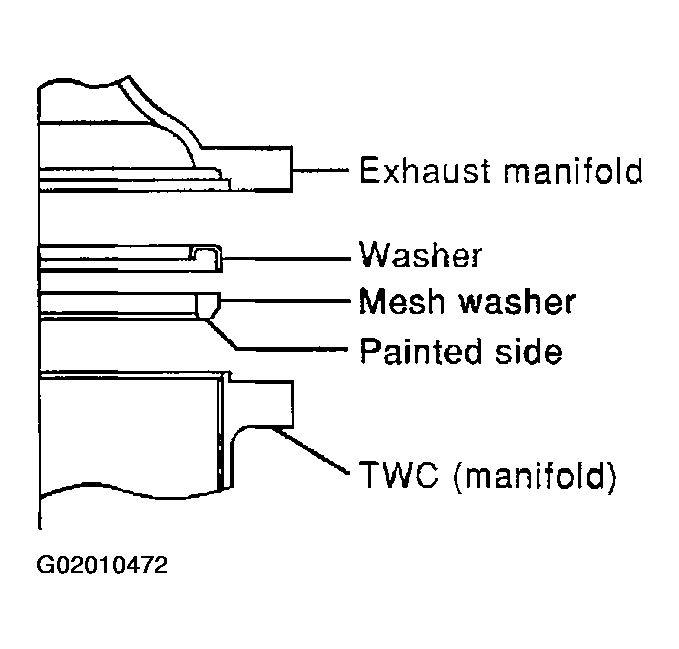

Install washer and mesh washer as shown.

Fig 2: Installing Washer And Mesh Washer
Courtesy of NISSAN MOTOR CO., U.S.A.
