Intake Manifold
WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

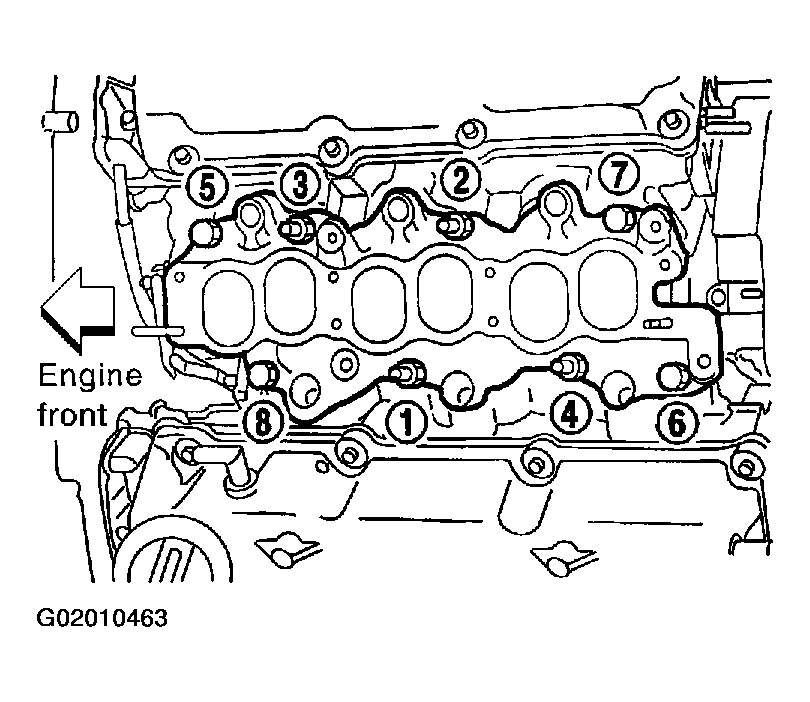

- Tighten in numerical order shown in the figure.
- Tighten all bolts and nuts to 5 to 10 N.m (0.5 to 1.0 kg-m, 44 to 86 in-lb).
- Finally tighten all bolts and nuts to 26 to 31 N.m (2.7 to 3.2 kg-m, 20 to 23 ft-lb).
- Tighten all bolts and nuts to the final torque, evenly dividing the tightening into at least five steps.
