Rear Oil Seal

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove transmission. Refer to REMOVAL AND INSTALLATION or Removal .
  2. Remove flywheel or drive plate.
  3. Remove oil pan. Refer to "REMOVAL ".
  4. Remove rear oil seal retainer.

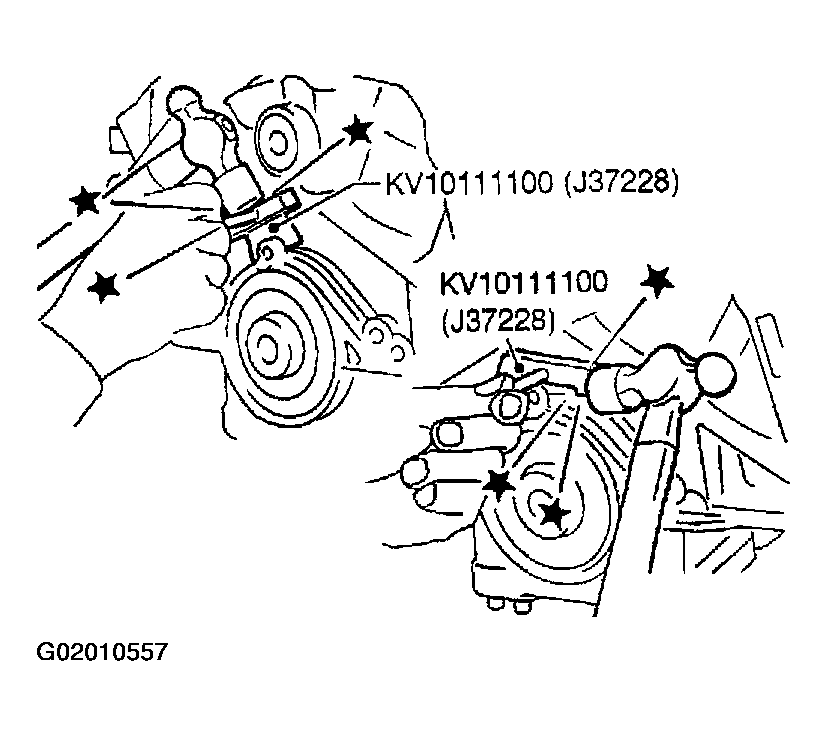

    Fig 1: Removing Rear Oil Seal Retainer
    G02010557Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove old liquid gasket using scraper.
    • Remove old liquid gasket from the bolt hole and thread.

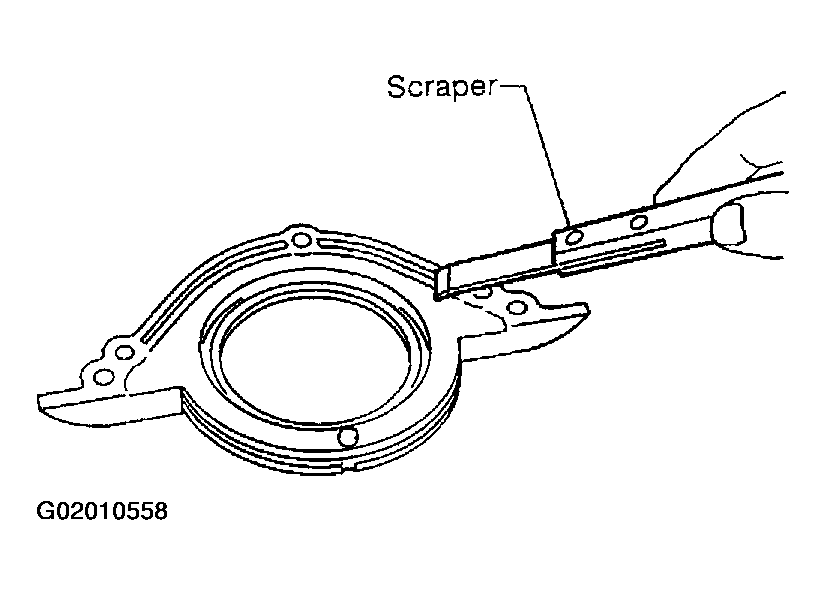

      Fig 2: Removing Old Liquid Gasket Using Scraper
      G02010558Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Apply liquid gasket to rear oil seal retainer.

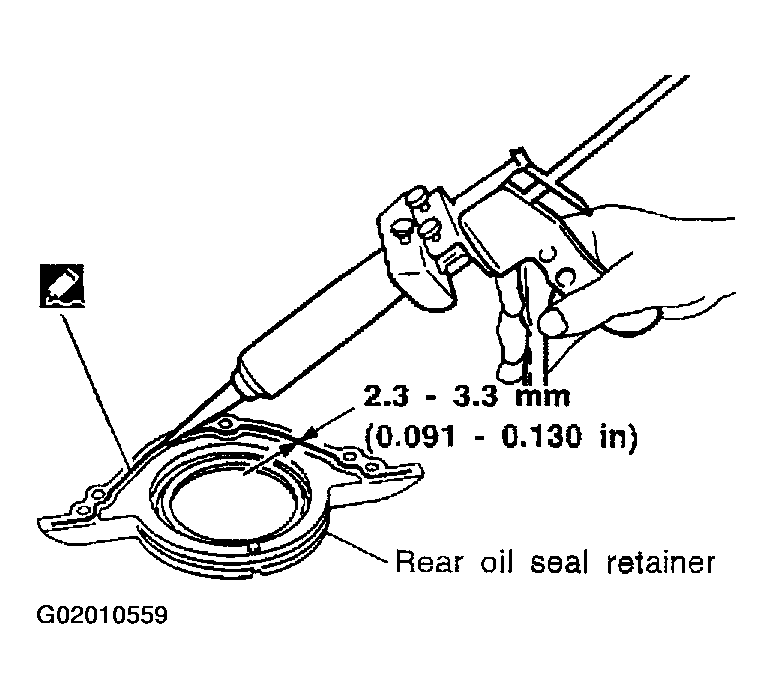

    Fig 3: Applying Liquid Gasket To Rear Oil Seal Retainer
    G02010559Courtesy of NISSAN MOTOR CO., U.S.A.
