Camshaft Sprocket RUNOUT
WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
- Install sprocket on camshaft.

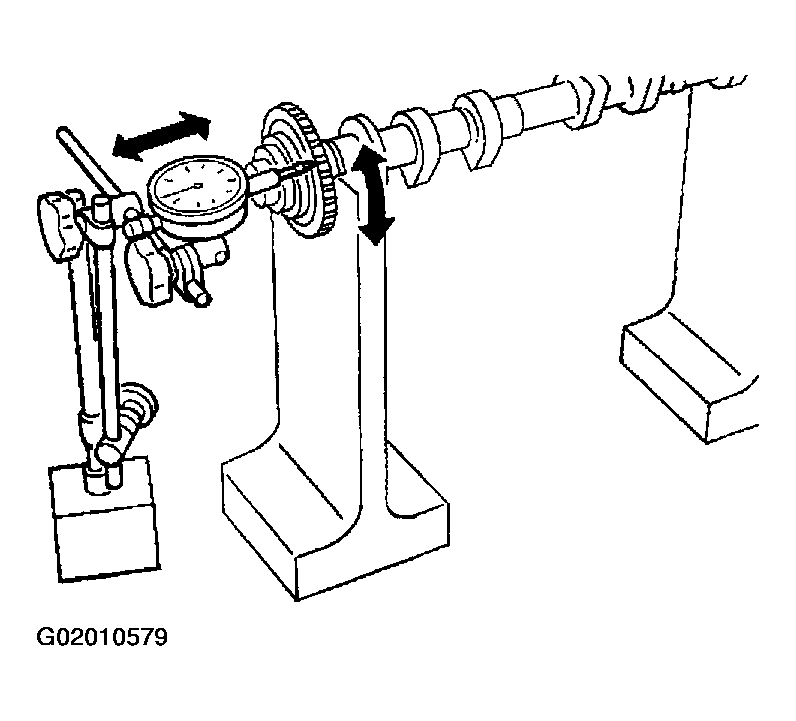

- Measure camshaft sprocket runout.
Runout (Total indicator reading):
Less than 0.15 mm (0.0059 in)
- If it exceeds the limit, replace camshaft sprocket.
Courtesy of NISSAN MOTOR CO., U.S.A.
