Camshaft RUNOUT
WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

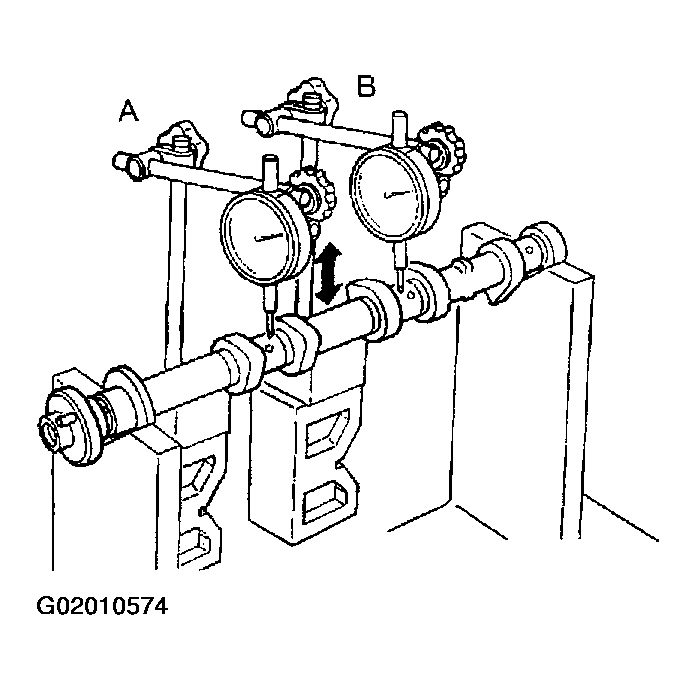

- Measure camshaft runout at A and B as shown in the figure.
Runout (Total indicator reading):
Limit 0.05 mm (0.0020 in)
- If it exceeds the limit, replace camshaft.
Courtesy of NISSAN MOTOR CO., U.S.A.
