Camshaft End Play
WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
- Install camshaft in cylinder head.

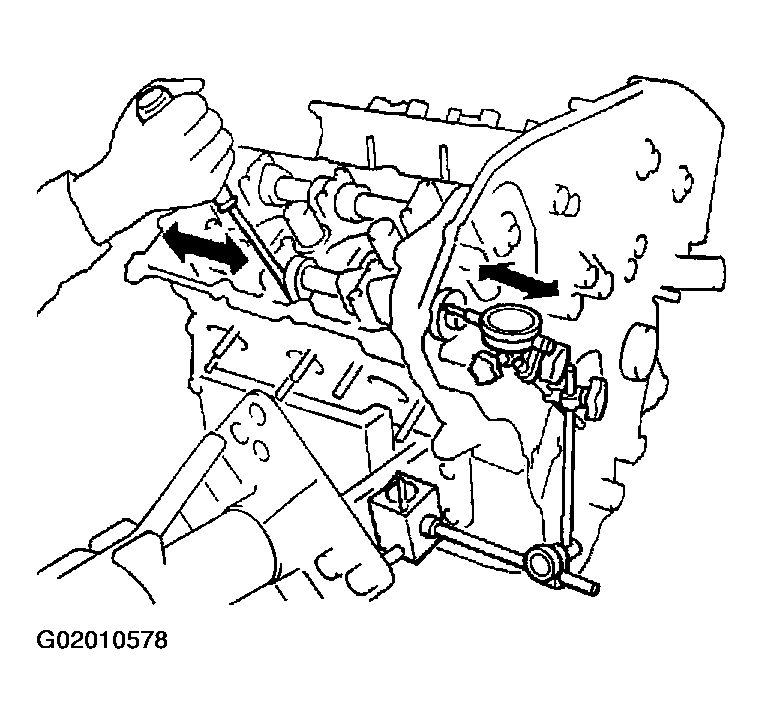

- Measure camshaft end play.
Camshaft end play:
Standard
0.115 - 0.188 mm (0.0045 - 0.0074 in)
Limit
0.24 mm (0.0094 in)
Courtesy of NISSAN MOTOR CO., U.S.A.
