Connecting Rod Bearing (Big end)

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Install connecting rod bearing to connecting rod and cap.
Install connecting rod cap to connecting rod.
Tighten bolts to the specified torque.
.

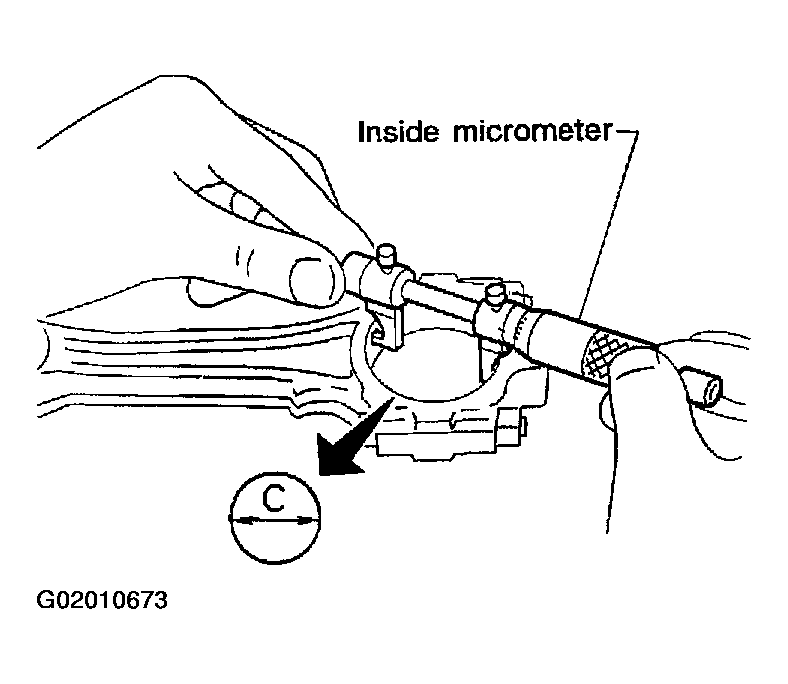

Fig 1: Measuring Inner Diameter Of Connecting Rod
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure outer diameter "Dp" of each crankshaft pin journal.
Calculate connecting rod bearing clearance.
Connecting rod bearing clearance = C - Dp

Standard: 0.034 - 0.059 mm (0.0013 - 0.0023 in)

Limit: 0.070 mm (0.0028 in)
If it exceeds the limit, replace bearing.
If clearance cannot be adjusted within the standard of any bearing, grind crankshaft journal and use undersized bearing. Refer to "BEARING CLEARANCE ", - Main bearing.

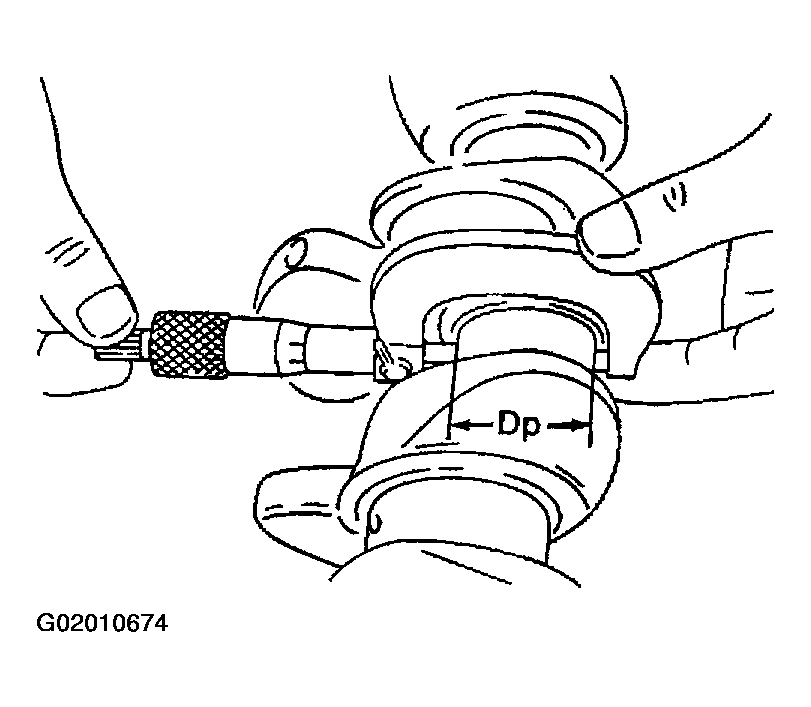

Fig 2: Measuring Outer Diameter Of Each Crankshaft Pin Journal
Courtesy of NISSAN MOTOR CO., U.S.A.
If crankshaft is replaced with a new one, select connecting rod bearing according to the following table.
Connecting rod bearing grade number (Identification color):

These numbers are punched in either Arabic or Roman numerals.

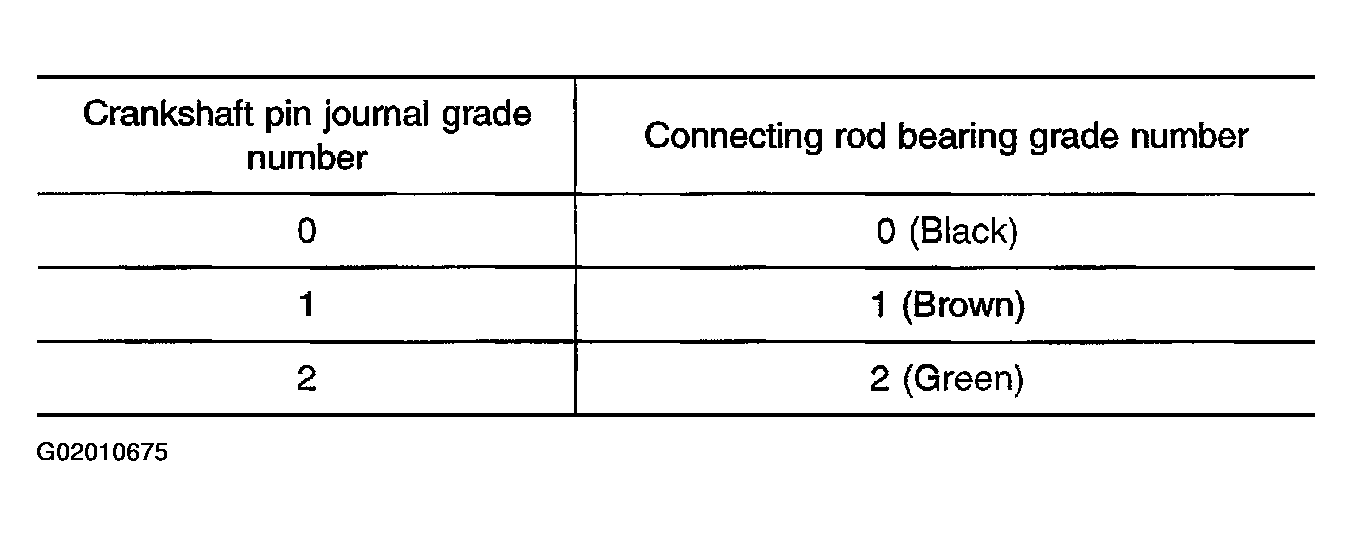

Fig 3: Connecting Rod Bearing Grade Number (Identification Color) Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

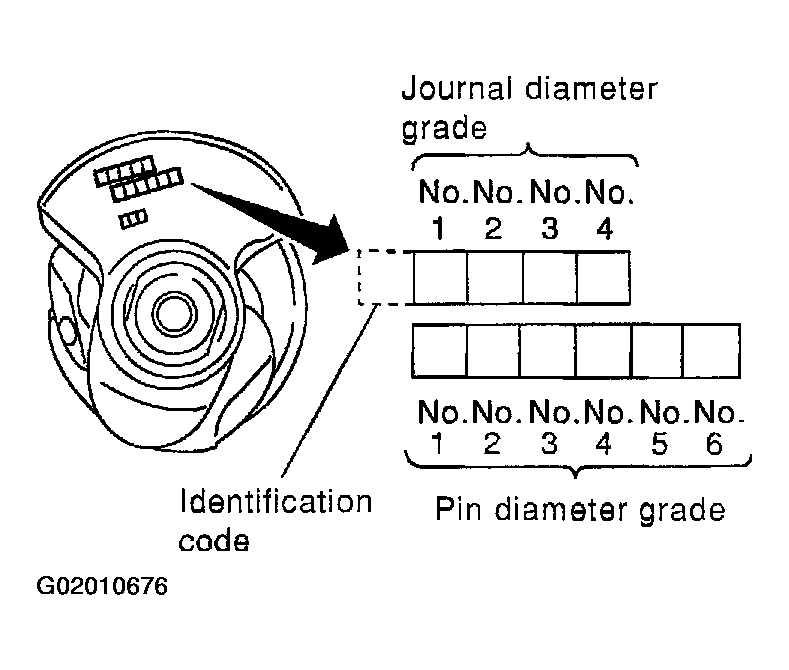

Fig 4: Locating Journal Diameter Identification Code
Courtesy of NISSAN MOTOR CO., U.S.A.
