Replacement Of Pilot Bushing (M/T) Or Pilot Converter (A/T)

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove pilot bushing or pilot converter using tool or suitable tool.

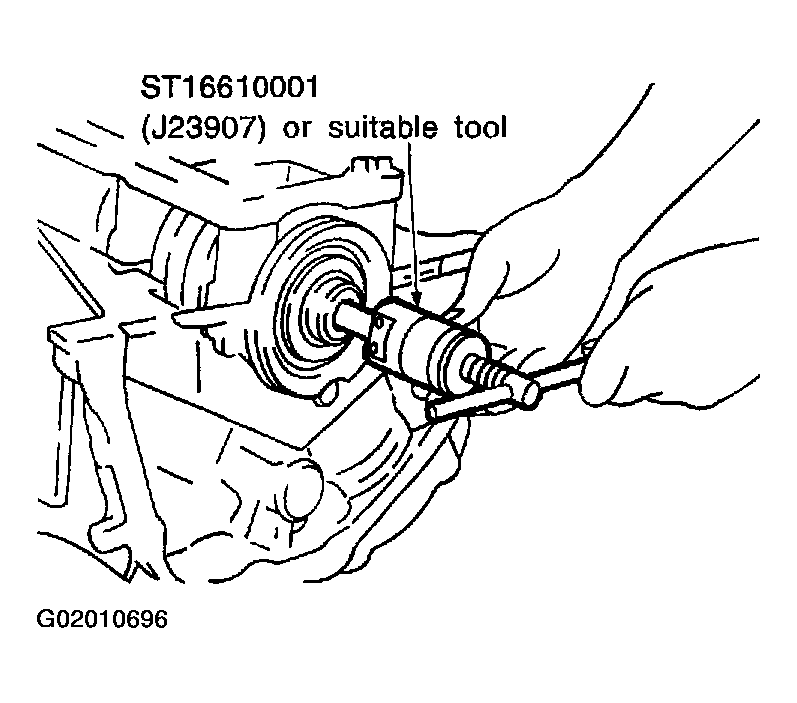

    Fig 1: Removing Pilot Bushing Or Pilot Converter Using Tool
    G02010696Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install pilot bushing or pilot converter as shown.

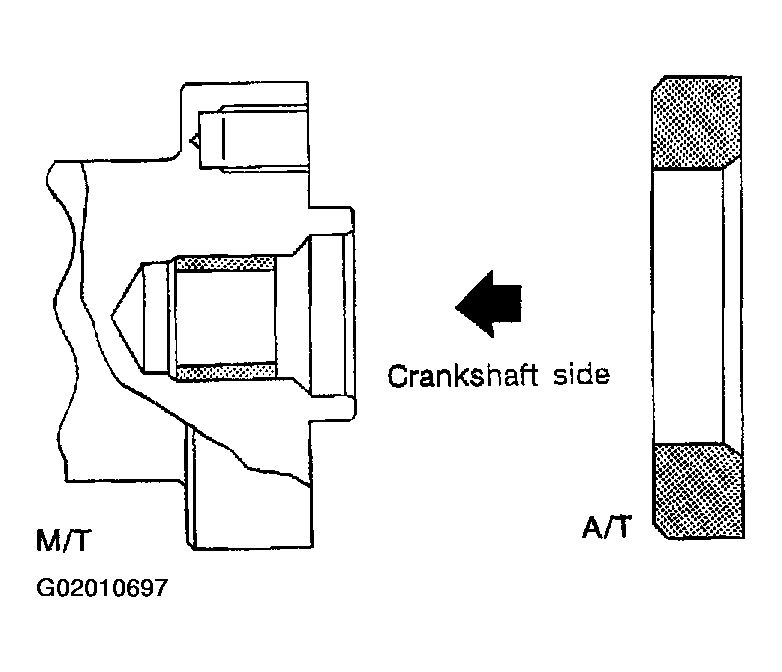

    Fig 2: Installing Pilot Bushing Or Pilot Converter From Crankshaft Side
    G02010697Courtesy of NISSAN MOTOR CO., U.S.A.
