Lower Driver Instrument Panel

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove cluster lid C. Refer to "CLUSTER LID C ".
Remove fuse box cover.

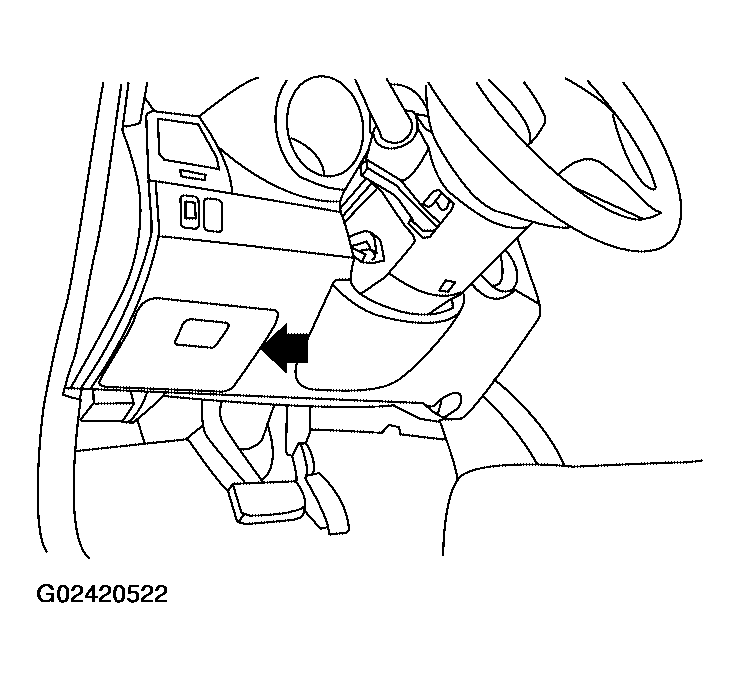

Fig 1: Removing Fuse Box Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove screws using power tool, and remove lower driver instrument panel.
- Pull to disconnect clips.
- Disconnect aspirator tube and in vehicle temperature sensor.
- Disconnect harnesses from back of lower driver instrument panel.

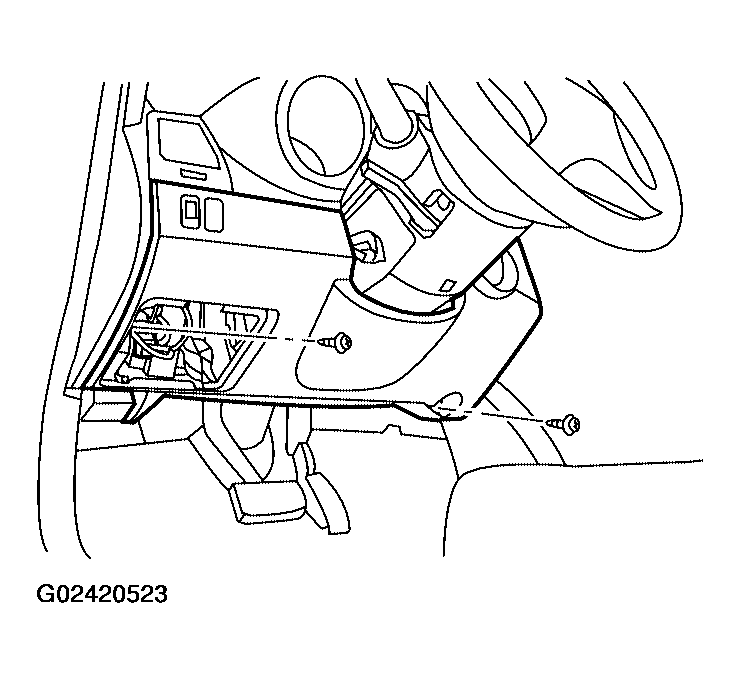

  Fig 2: Removing Screws And Lower Driver Instrument Panel
  Courtesy of NISSAN MOTOR CO., U.S.A.
