Instrument Passenger Lower Panel and Glove Box

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

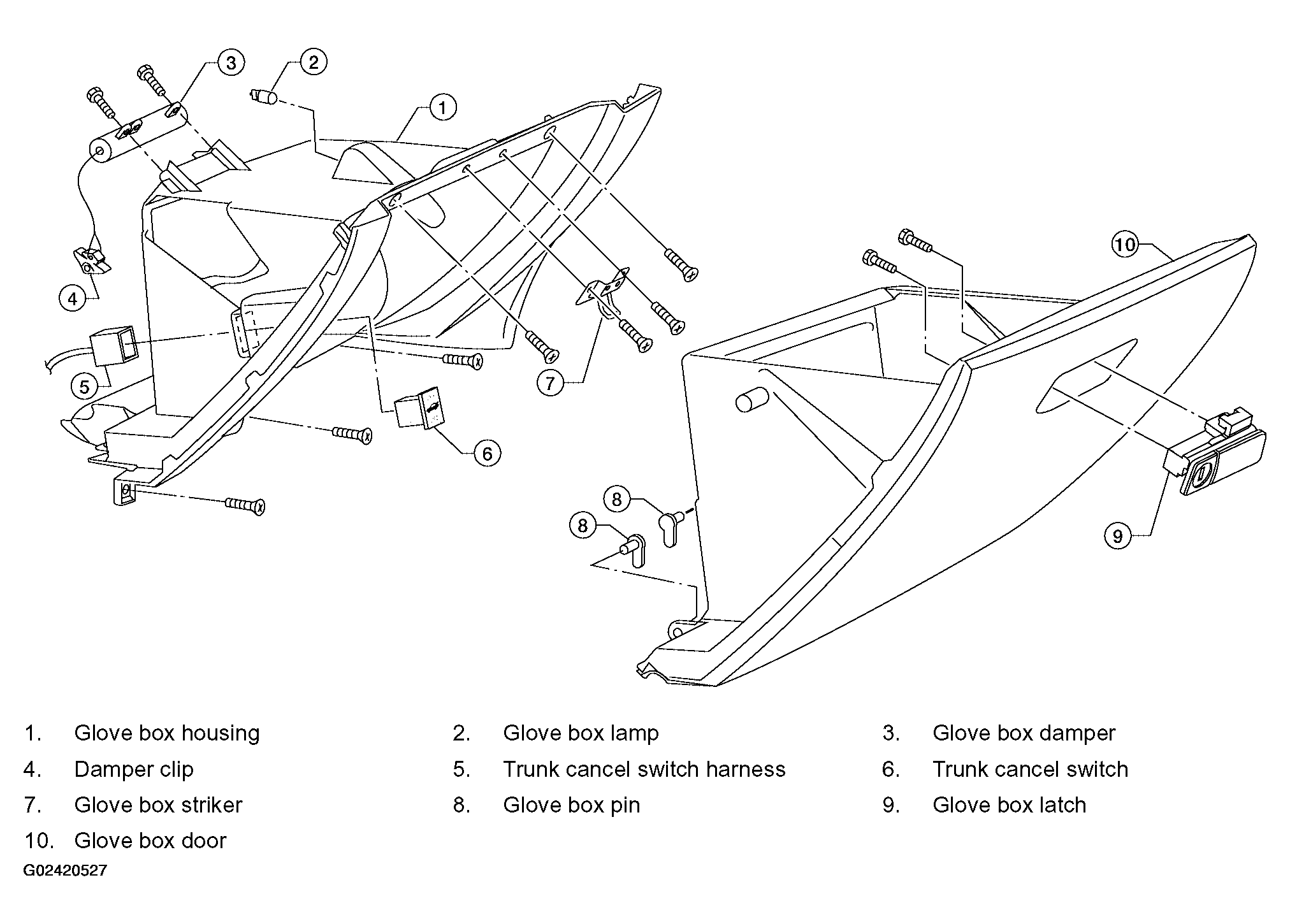

Fig 1: Identifying Instrument Lower Cover RH And Glove Box Components
G02420527Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove glove box door.
    • Remove damper clip from glove box door.
  2. Remove screws and remove glove box knob.
  3. Remove glove box hinges.
  4. Remove screws from glove box striker and glove box using power tool.
  5. Remove screws and remove instrument passenger lower panel.
  6. Disconnect glove box lamp harness.
  7. Disconnect harness from trunk switch.
  8. Remove trunk switch.
  9. Remove screws and remove damper from back of instrument passenger lower panel.
