Combination Meter

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove the combination meter covers.
Remove screws using power tool and remove the combination meter assembly.
- Disconnect electrical connectors.

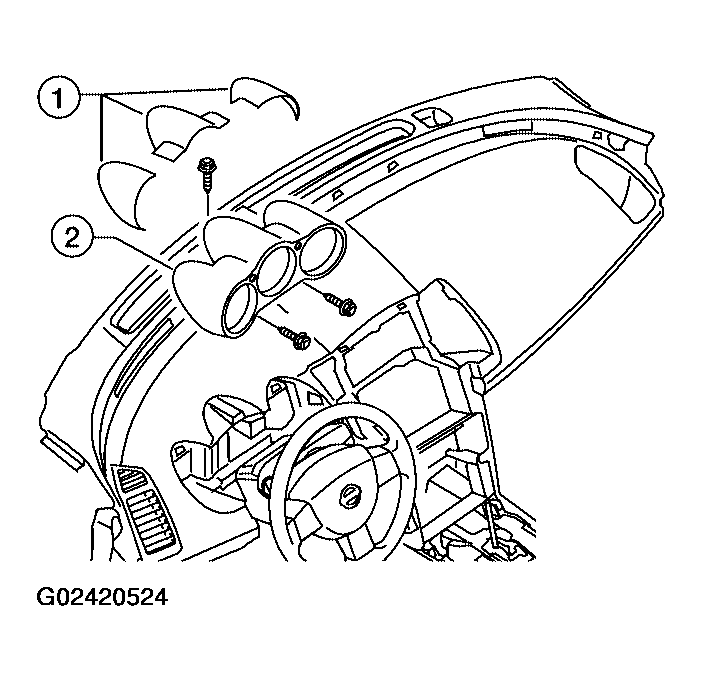

  Fig 1: Disconnecting Combination Meter Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.
