Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

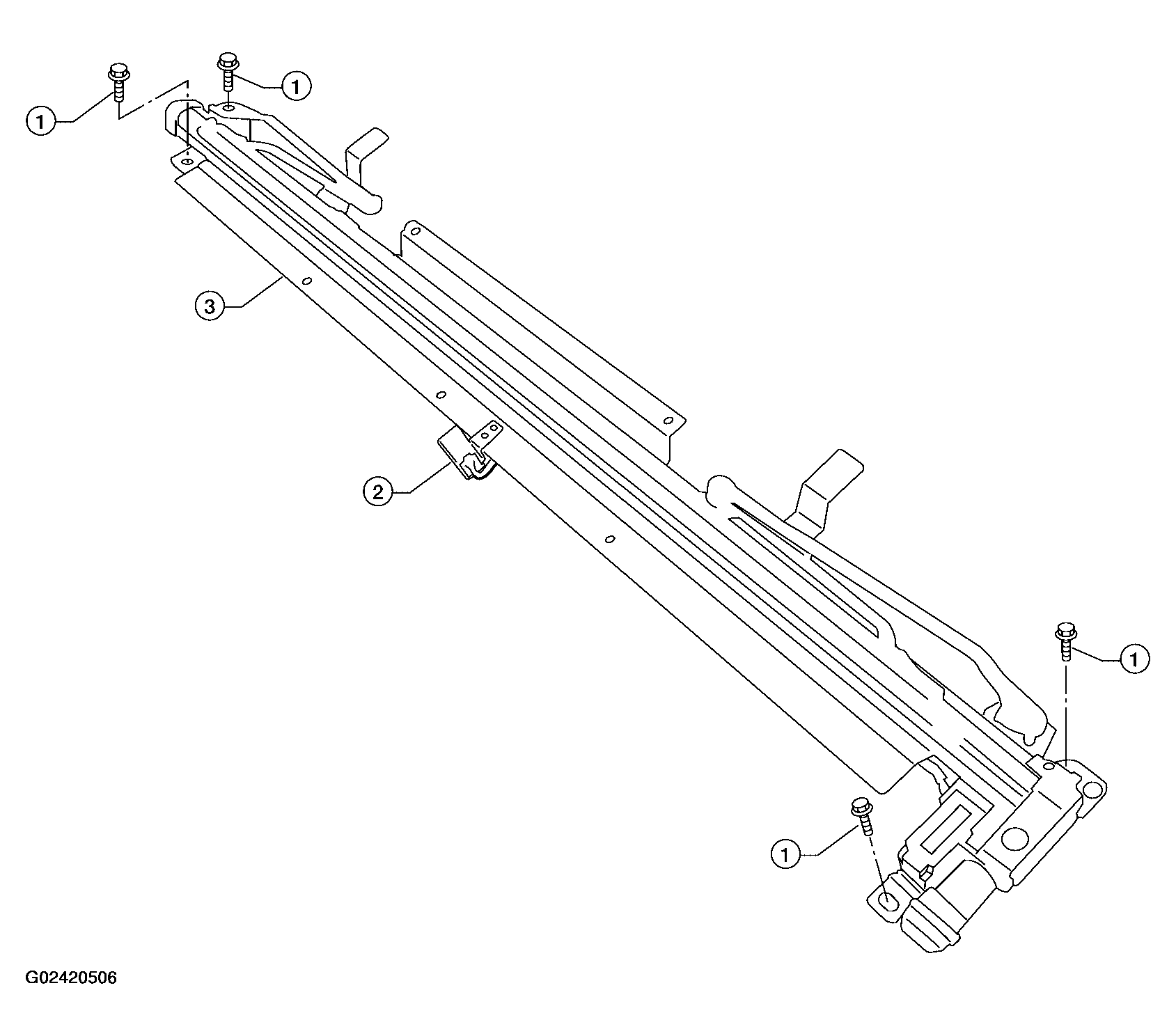

Fig 1: Removing Sunshade

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove rear parcel shelf finisher. Refer to "REAR PARCEL SHELF FINISHER ".
Remove screws.
Disconnect wiring harness.
Remove rear sunshade.

Installation is in the reverse order of removal.
