Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Rear Parcel Shelf Finisher

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove rear seat. Refer to "REAR SEAT ".
Remove rear seat belt anchor bolts. Refer to "REMOVAL AND INSTALLATION OF REAR SEAT BELT ".
Remove rear pillar finisher. Refer to "BODY SIDE TRIM ".
Remove high mounted stop lamp and disconnect connectors.
Remove halo trim.
Remove rear parcel shelf trim.

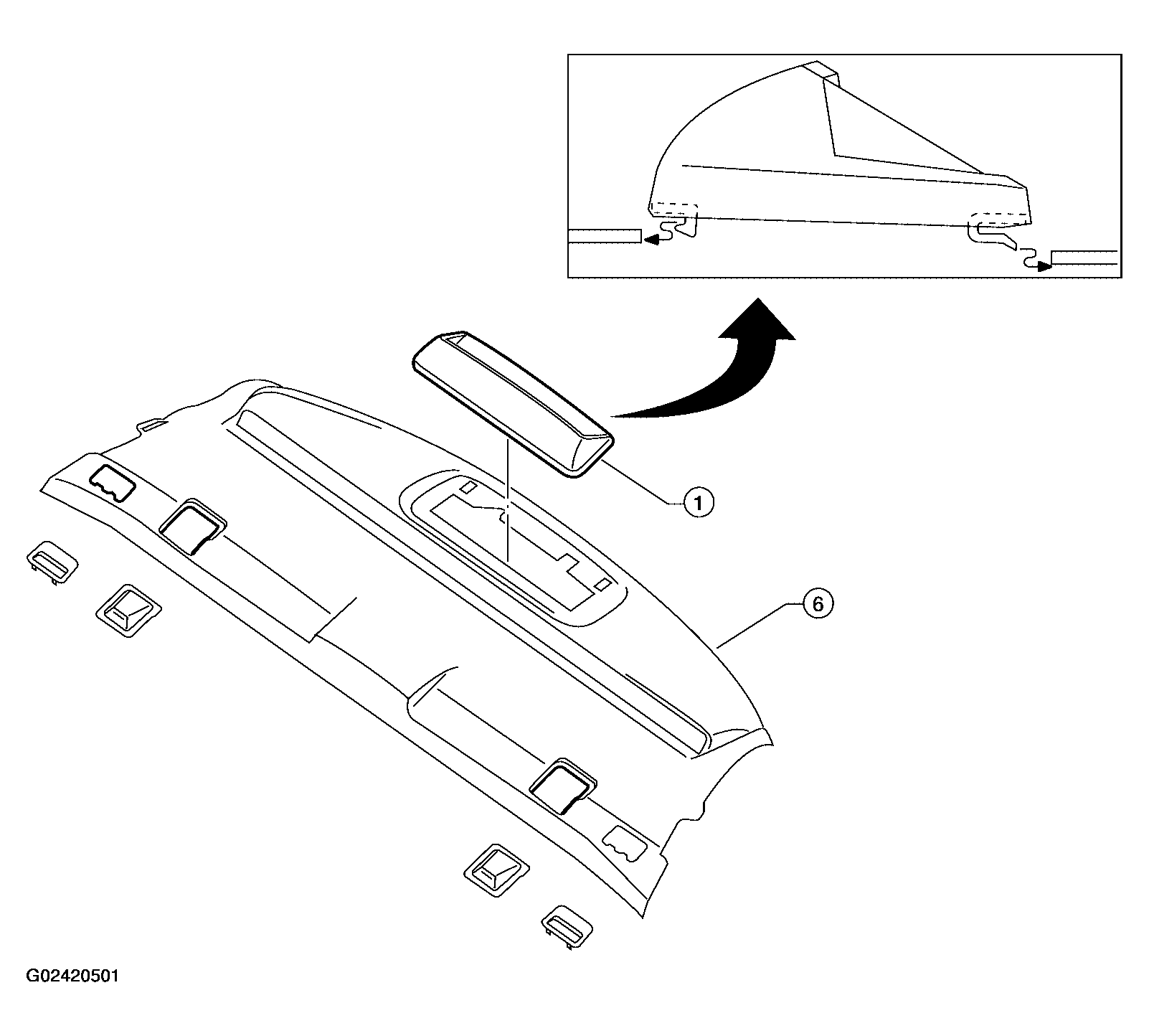

Fig 2: Removing Rear Parcel Shelf Trim
Courtesy of NISSAN MOTOR CO., U.S.A.

Installation is in the reverse order of removal.
