Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

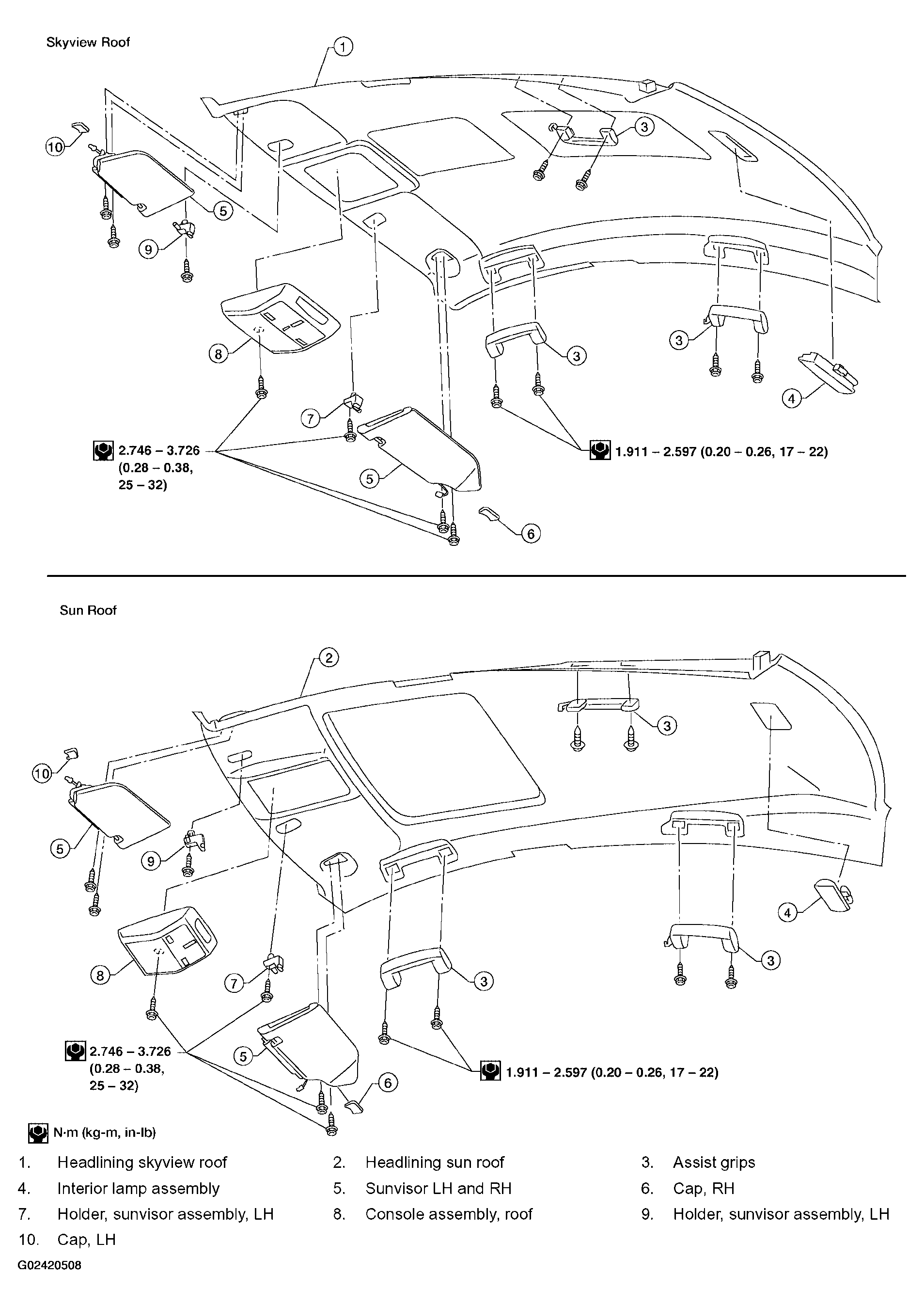

Fig 1: Removing Headlining With Torque Specifications
G02420508Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Disconnect both terminals from battery in advance.
  1. Remove front and rear door kicking plates. Refer to "BODY SIDE TRIM ".
  2. Remove lower dash side trim. Refer to "BODY SIDE TRIM ".
  3. Remove front pillar garnish, center pillar lower and upper garnish, and rear pillar garnish. Refer to "BODY SIDE TRIM ".
  4. Remove front and rear door welts. Refer to "BODY SIDE TRIM ".
  5. Remove assist grips.
  6. Remove interior lamp assembly.
  7. Remove roof console assembly.
  8. Remove RH and LH caps from sunvisor mounting brackets.
  9. Remove screws from each sunvisor mounting bracket and remove RH and LH sunvisor.
  10. Remove sunvisor assembly holders.
  11. Remove windshield garnish molding. Refer to "BODY SIDE TRIM ".
  12. Remove clips attaching headlining to roof.
  13. Take out headlining from the left rear door.

Installation is in the reverse order of removal.
