Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

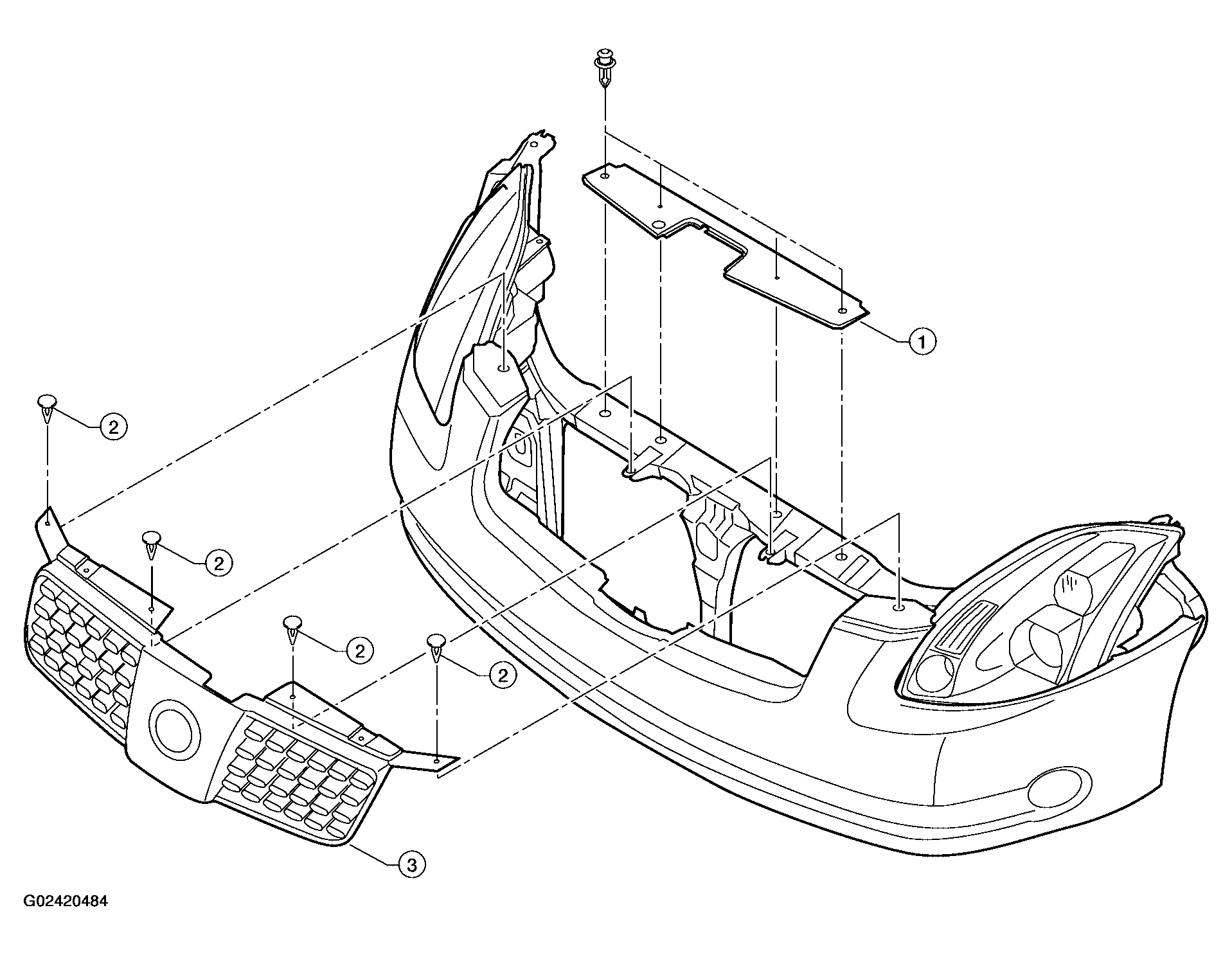

Fig 1: Removing Front Grille

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove 4 clips attaching grille top cover and remove grille top cover.
Remove 4 clips on top of radiator grille.
Remove radiator grille.
- Pull out of 4 tabs on the bottom.

Installation is in the reverse order of removal.
