Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

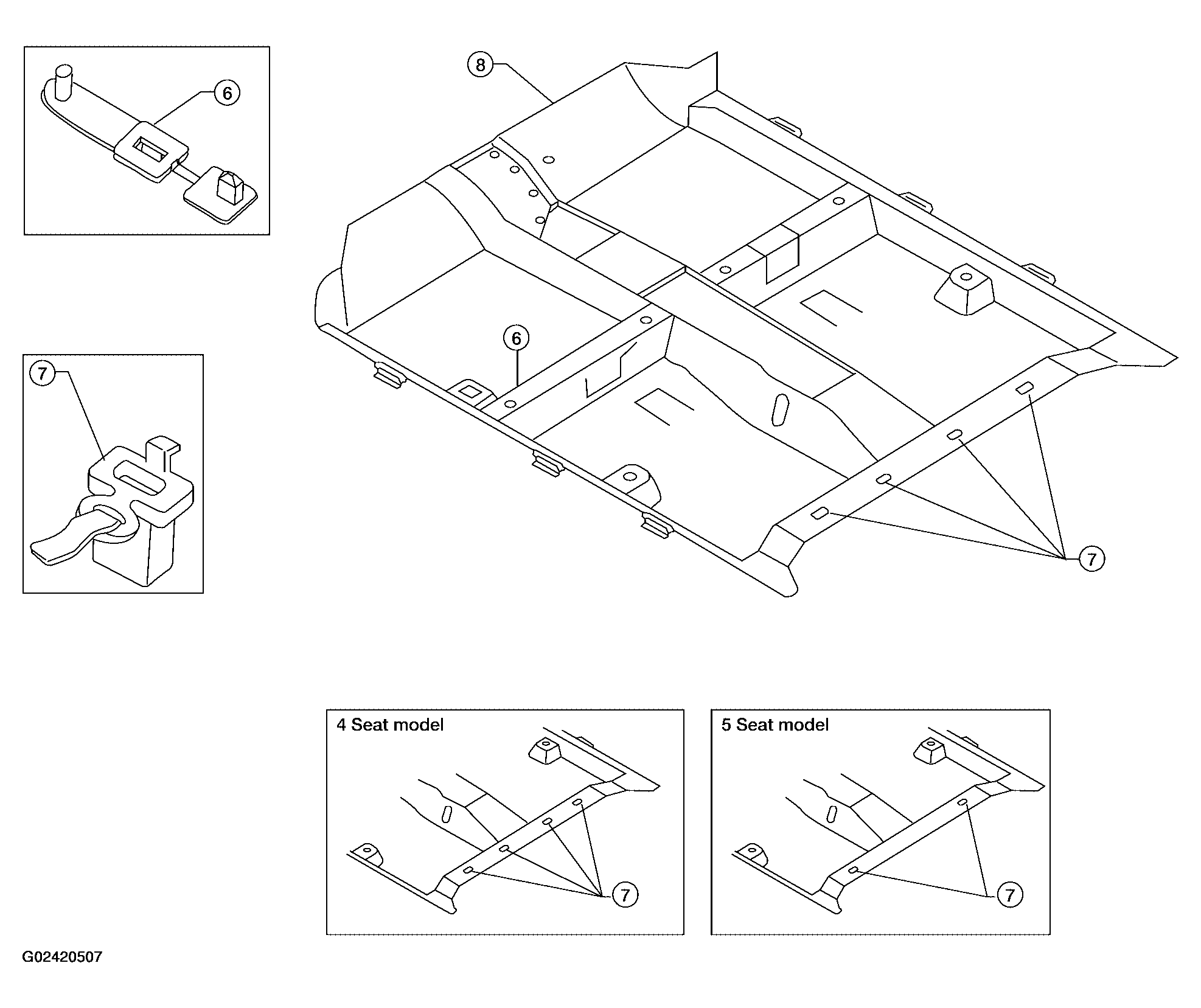

Fig 1: Removing Floor Trim

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove lower body side trim. Refer to "BODY SIDE TRIM ".
Remove front seats. Refer to "FRONT SEAT ".
Remove rear seat cushion. Refer to "REAR SEAT ".
- On 4 seat model, remove seat backs.
Remove center console. Refer to "INSTRUMENT PANEL ".
Remove lower seat belt anchors. Refer to "SEAT BELTS ".
Remove service mat brackets.
Remove rear seat cushion hooks.
Remove carpet.

Installation is in the reverse order of removal.
