Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

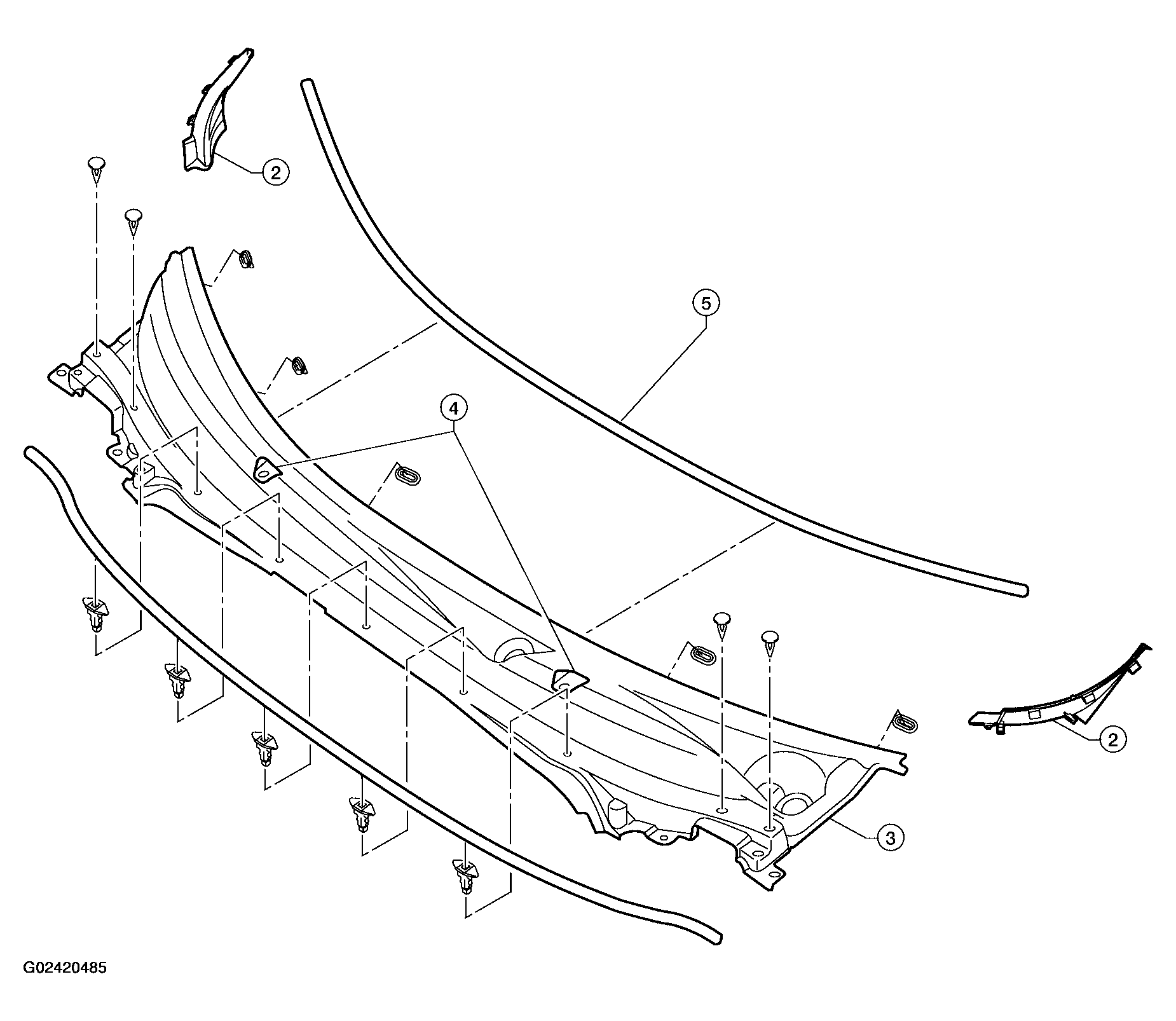

Fig 1: Removing Cowl Top

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove both the right and left wiper arms from the vehicle. Refer to "REMOVAL AND INSTALLATION FOR FRONT WIPER ARMS, ADJUSTMENT FOR WIPER ARMS STOP LOCATION ".
Remove fender covers.
Remove clips attaching cowl top cover and remove cowl top cover.
Disconnect windshield washer hose.
Remove cowl top seal.
Remove cowl weather-strip seal.
Remove windshield washer nozzles and hoses from cowl. Refer to "WASHER TUBE LAYOUT ".

Installation is in the reverse order of removal.
