Wiring Diagram - AUT/DP -

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

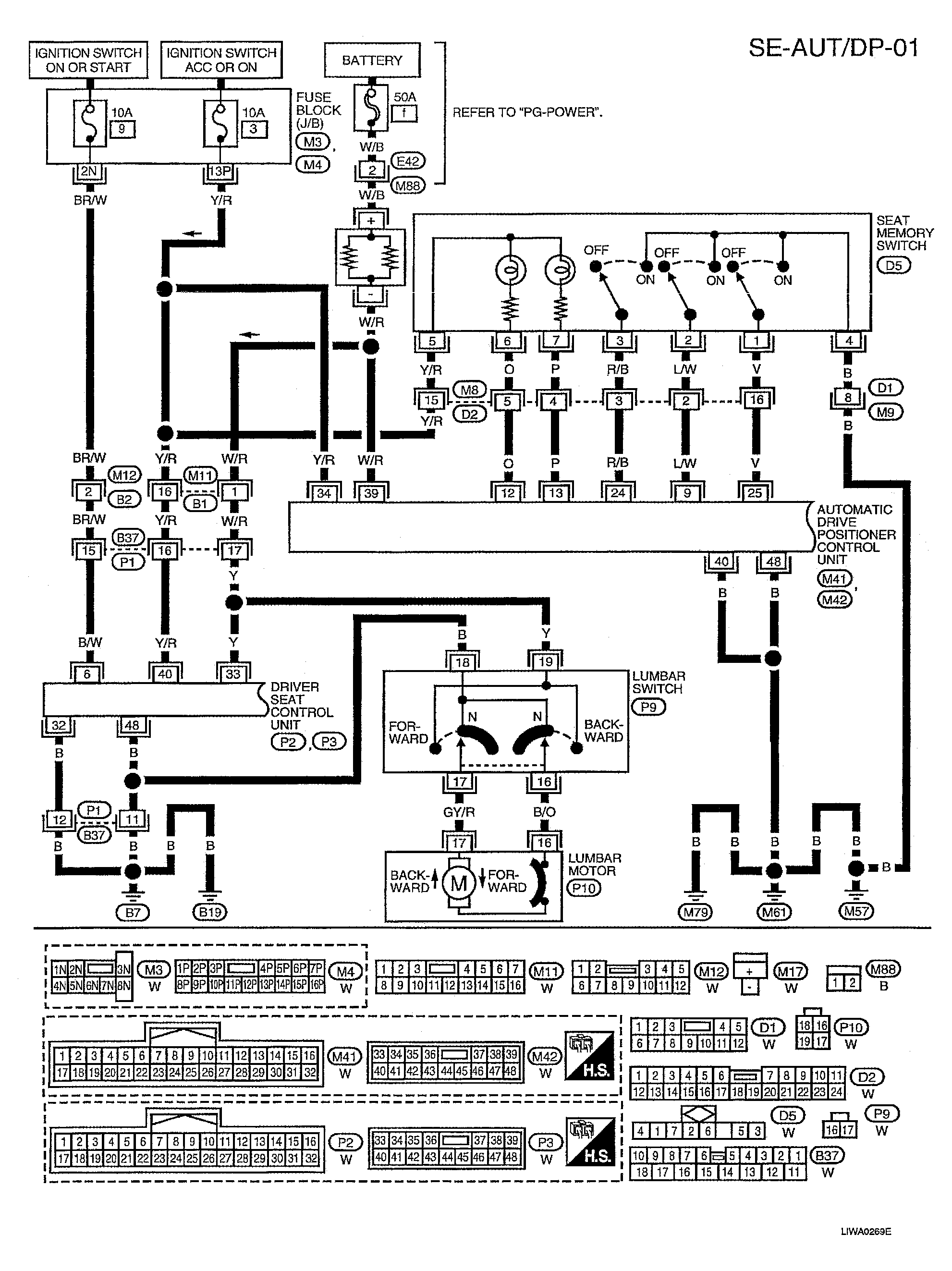

Fig 1: Wiring Diagram - SE-AUT/DP-01

Courtesy of NISSAN MOTOR CO., U.S.A.

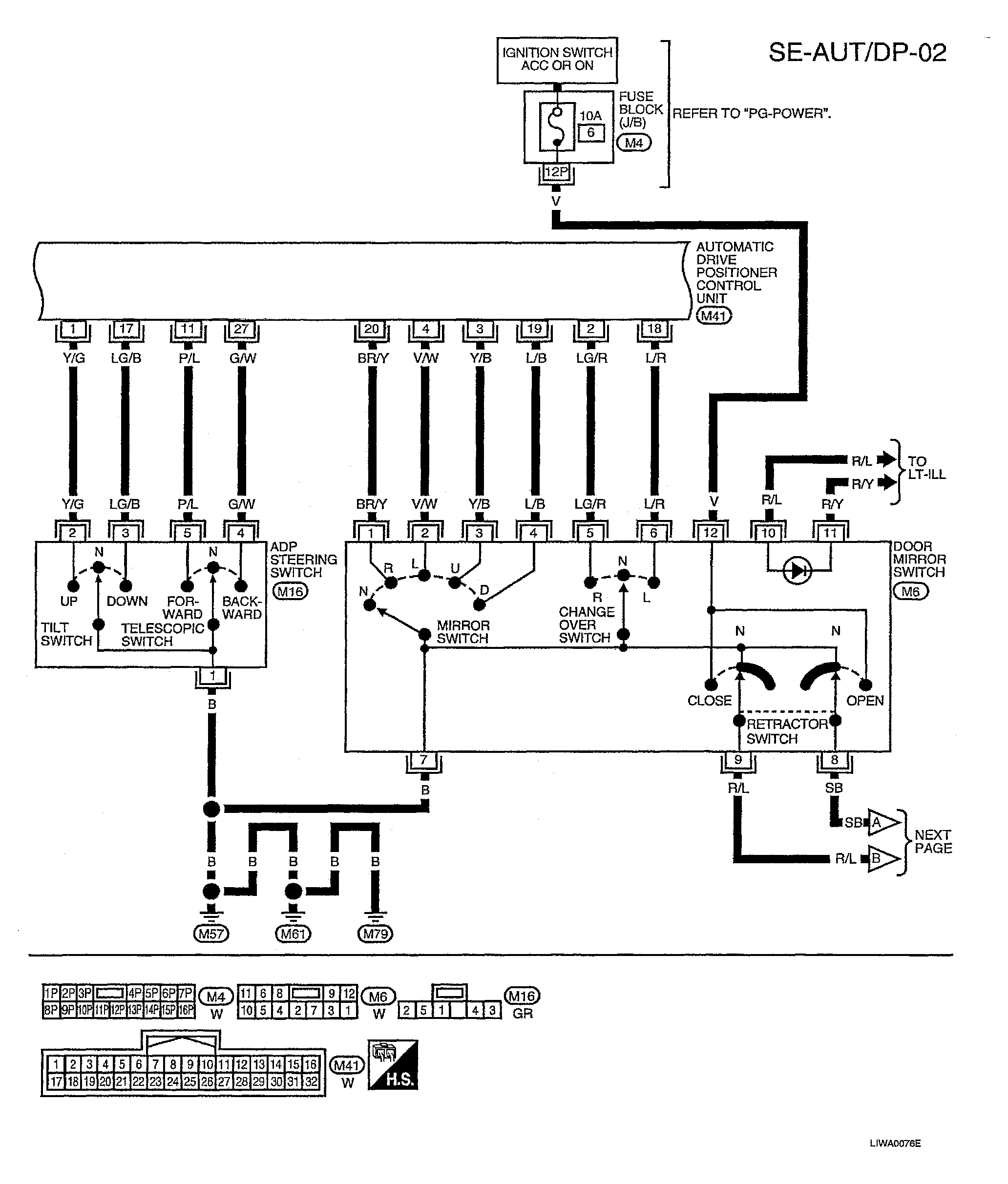

Fig 2: Wiring Diagram - SE-AUT/DP-02

Courtesy of NISSAN MOTOR CO., U.S.A.

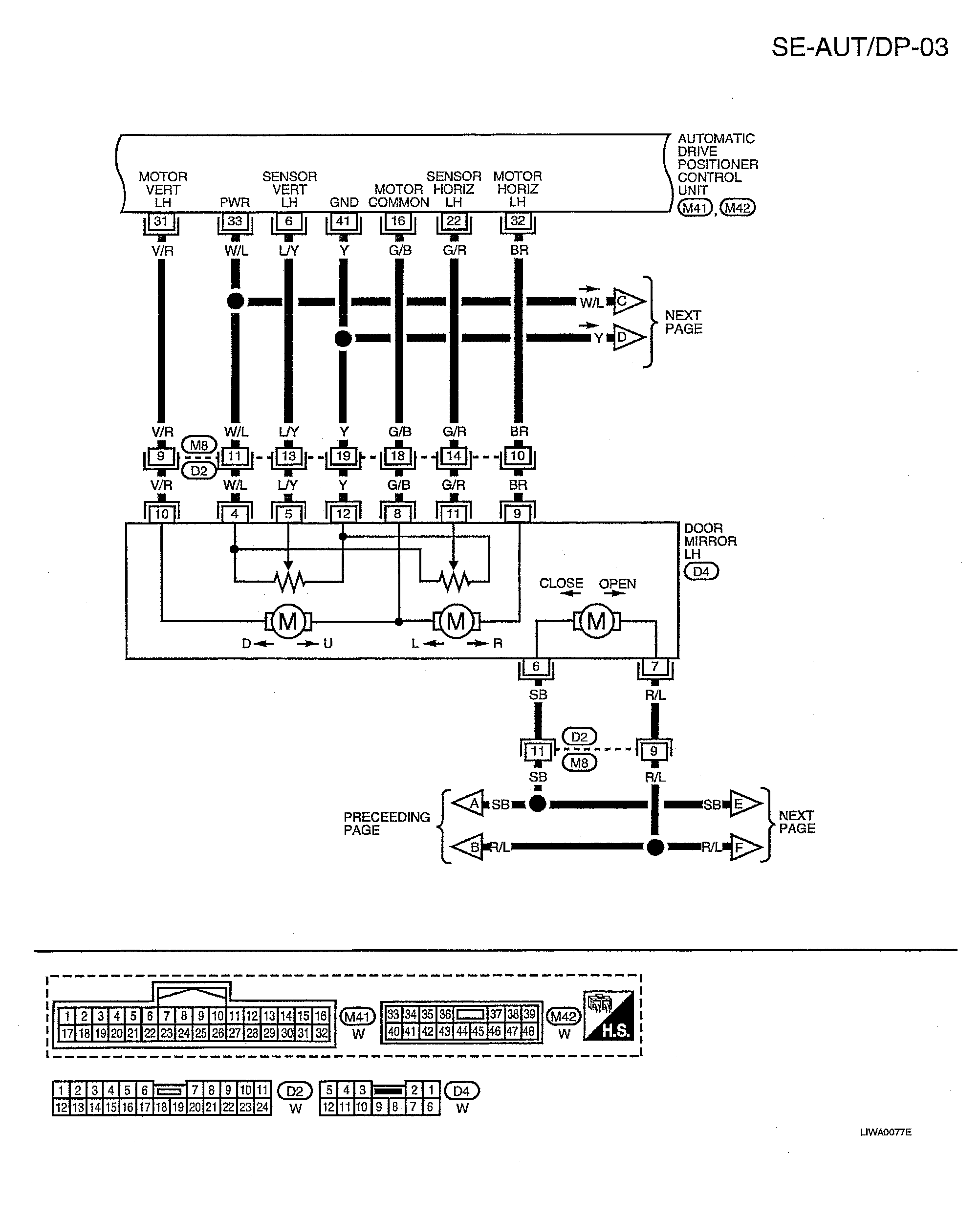

Fig 3: Wiring Diagram - SE-AUT/DP-03

Courtesy of NISSAN MOTOR CO., U.S.A.

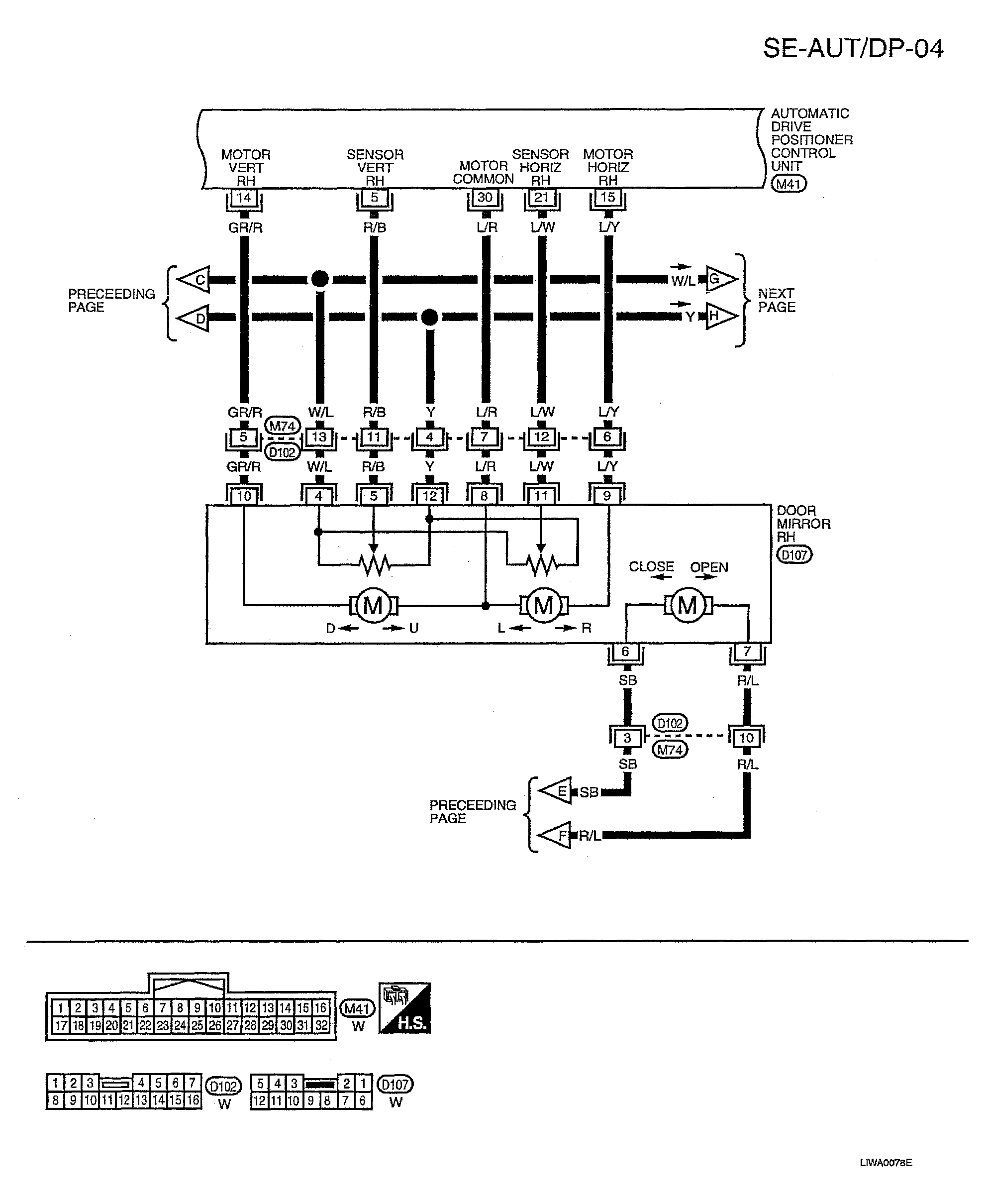

Fig 4: Wiring Diagram - SE-AUT/DP-04

Courtesy of NISSAN MOTOR CO., U.S.A.

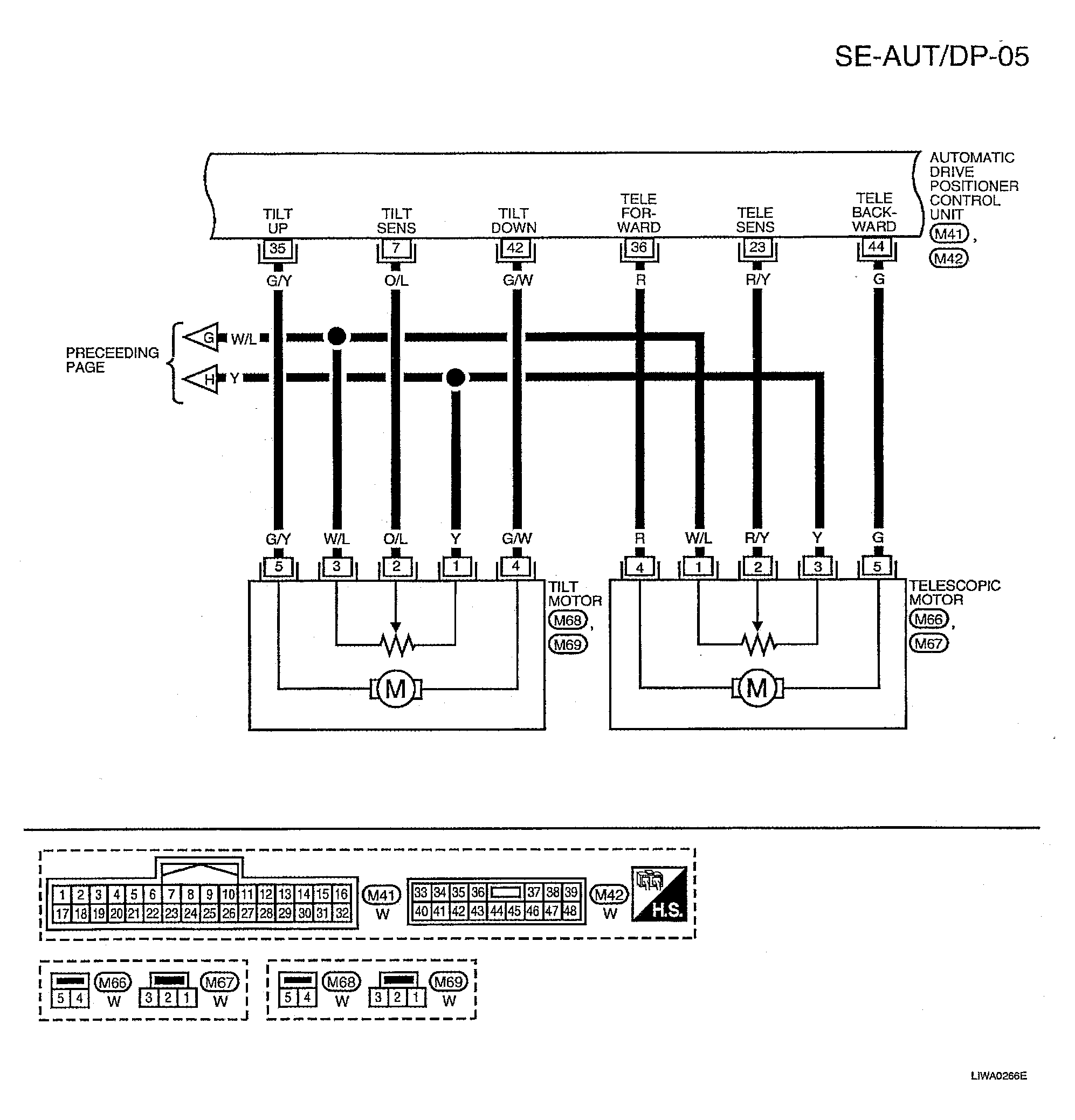

Fig 5: Wiring Diagram - SE-AUT/DP-05

Courtesy of NISSAN MOTOR CO., U.S.A.

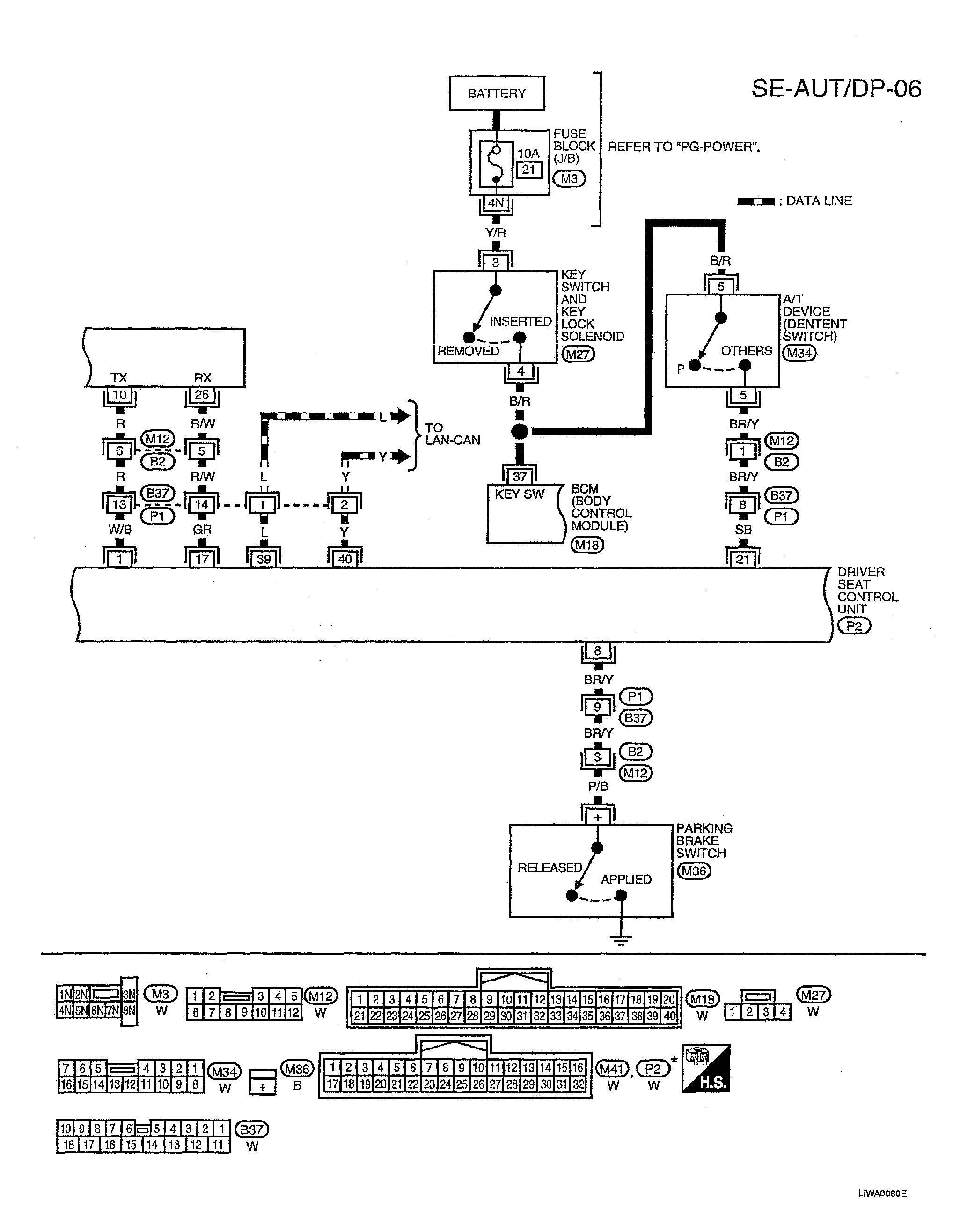

Fig 6: Wiring Diagram - SE-AUT/DP-06

Courtesy of NISSAN MOTOR CO., U.S.A.

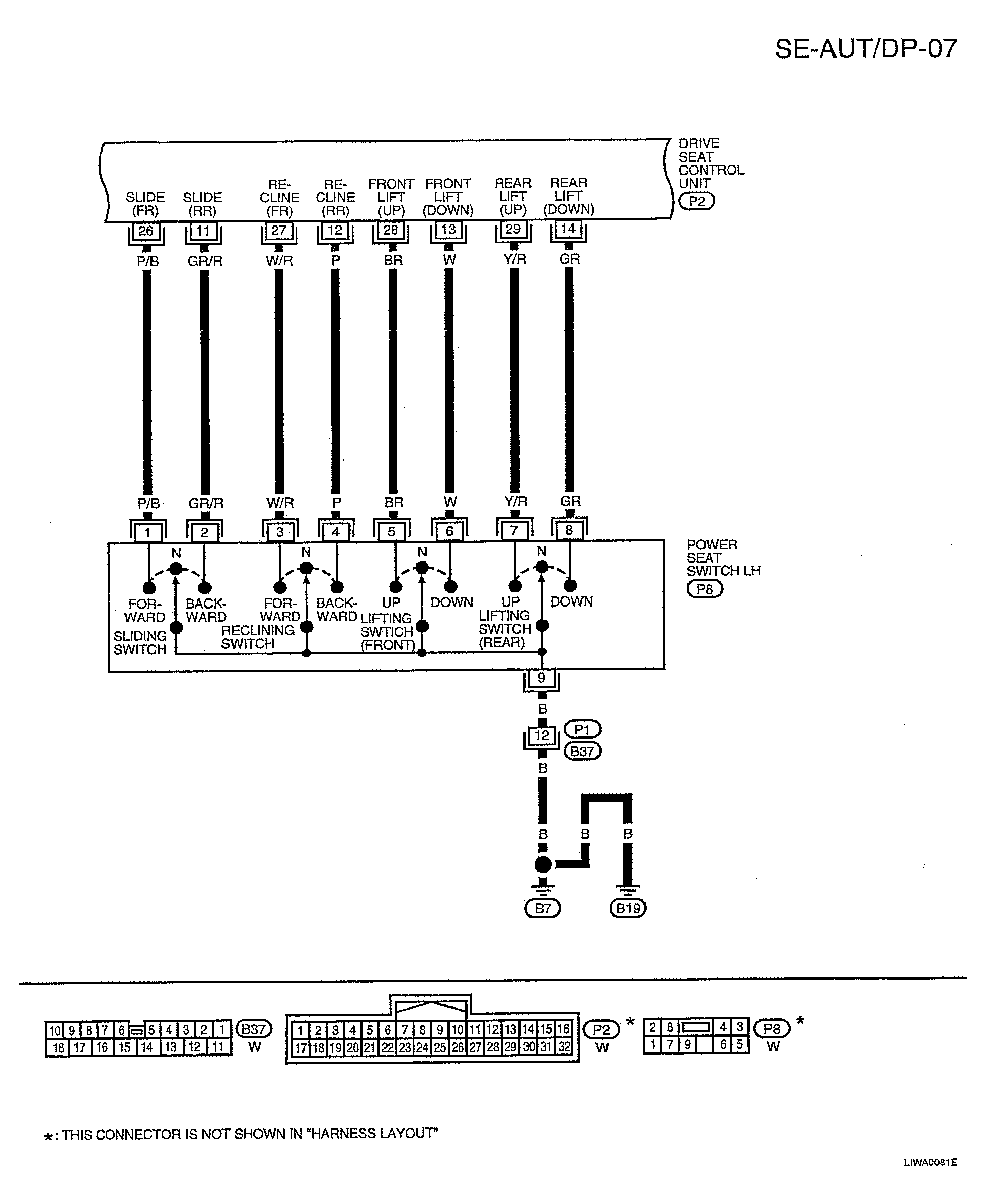

Fig 7: Wiring Diagram - SE-AUT/DP-07

Courtesy of NISSAN MOTOR CO., U.S.A.

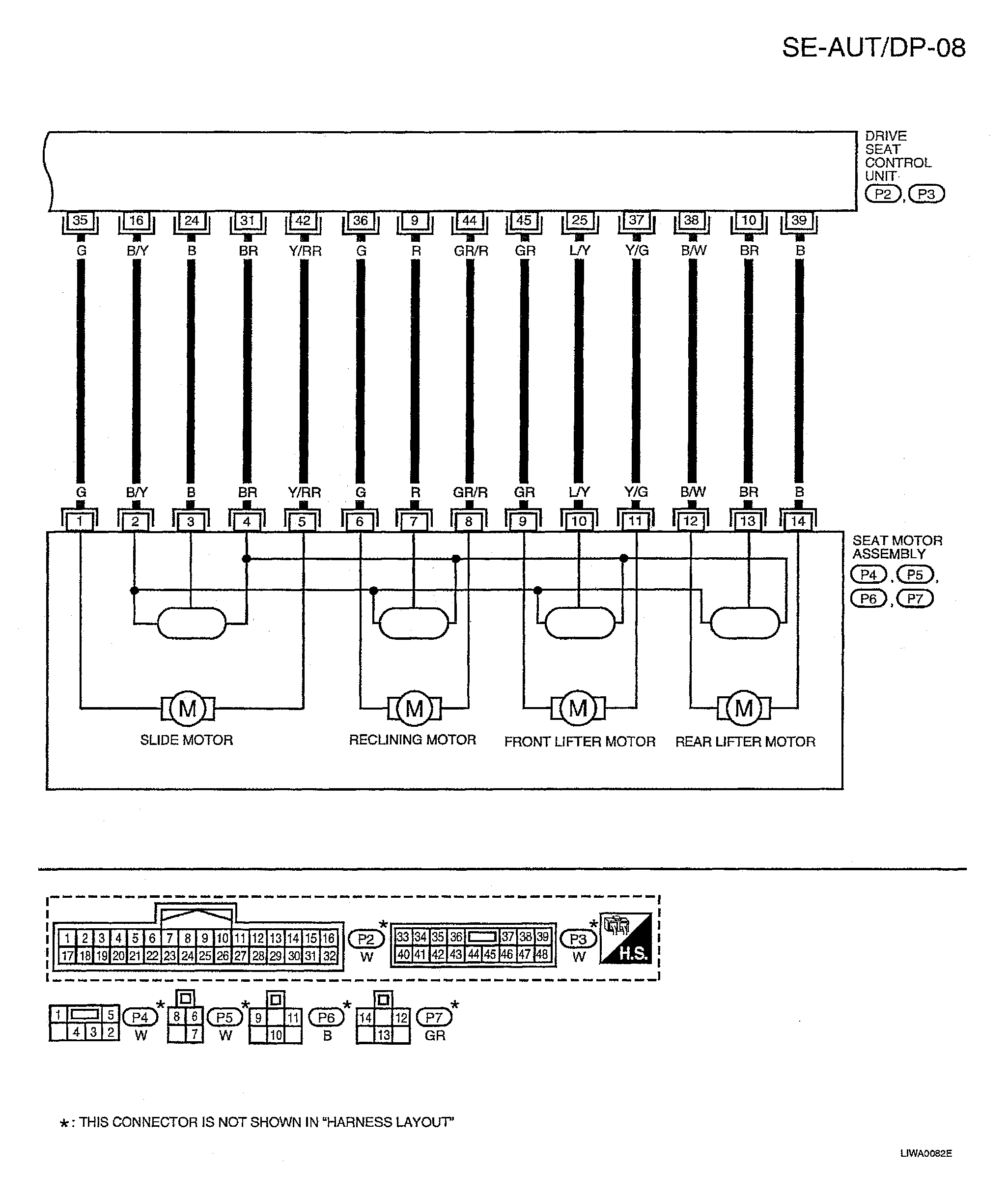

Fig 8: Wiring Diagram - SE-AUT/DP-08

Courtesy of NISSAN MOTOR CO., U.S.A.

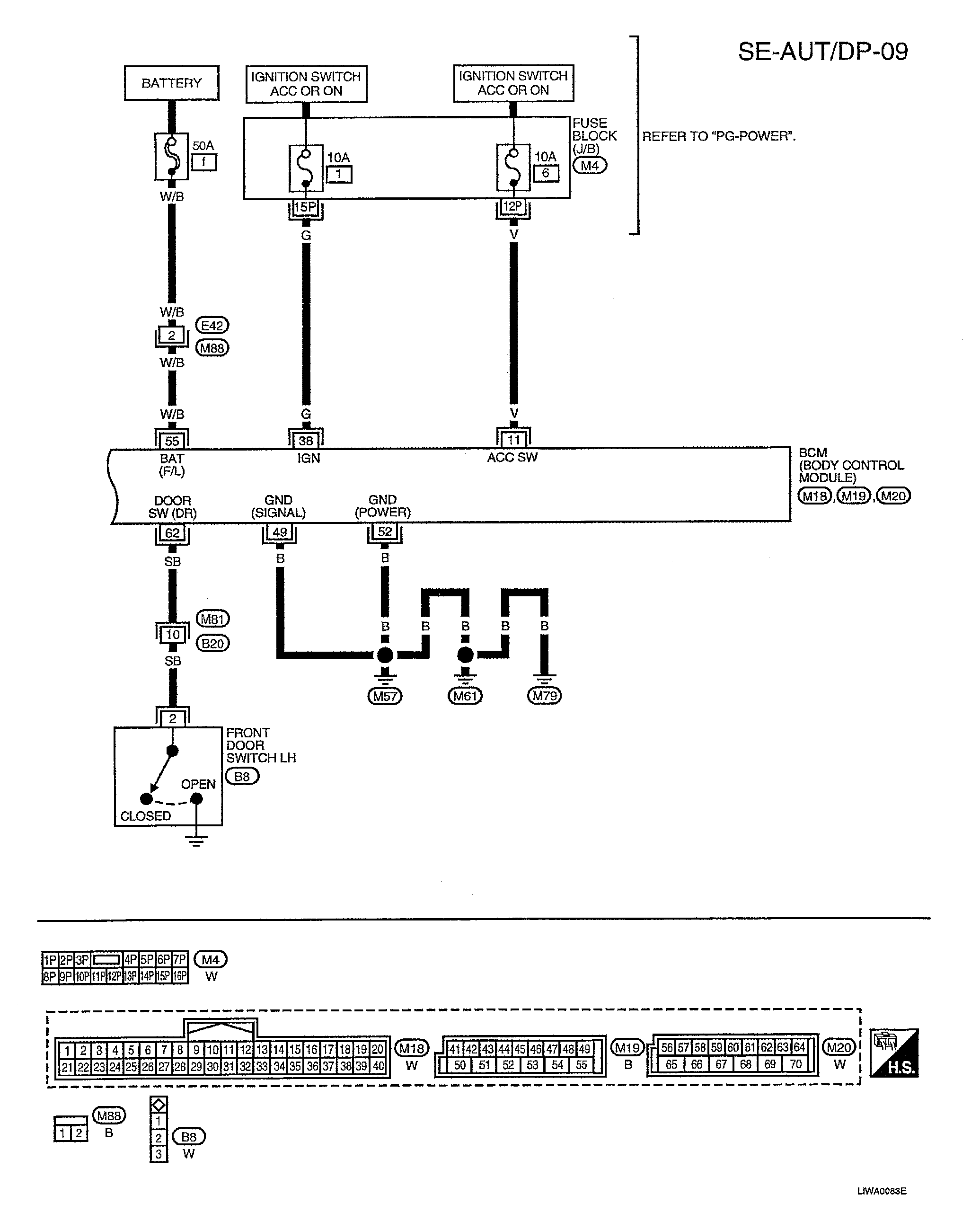

Fig 9: Wiring Diagram - SE-AUT/DP-09

Courtesy of NISSAN MOTOR CO., U.S.A.
