Telescopic Sensor Circuit Inspection

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUNCTION
With CONSULT-II

Operate the ADP steering switch with "TELESCO SEN" on the DATA MONITOR to make sure the voltage changes.

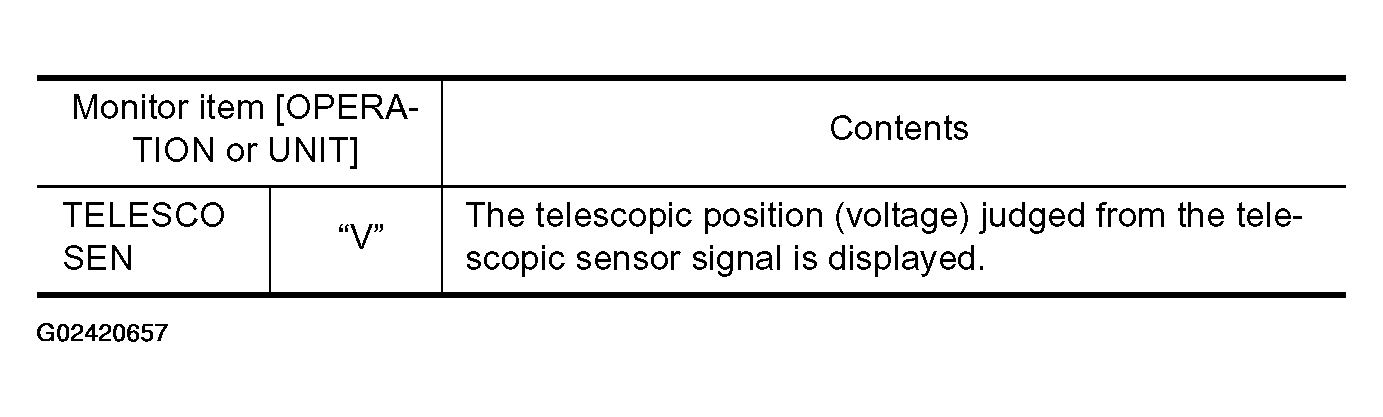

Fig 1: Telescopic Sensor Circuit - Monitor Item Contents Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

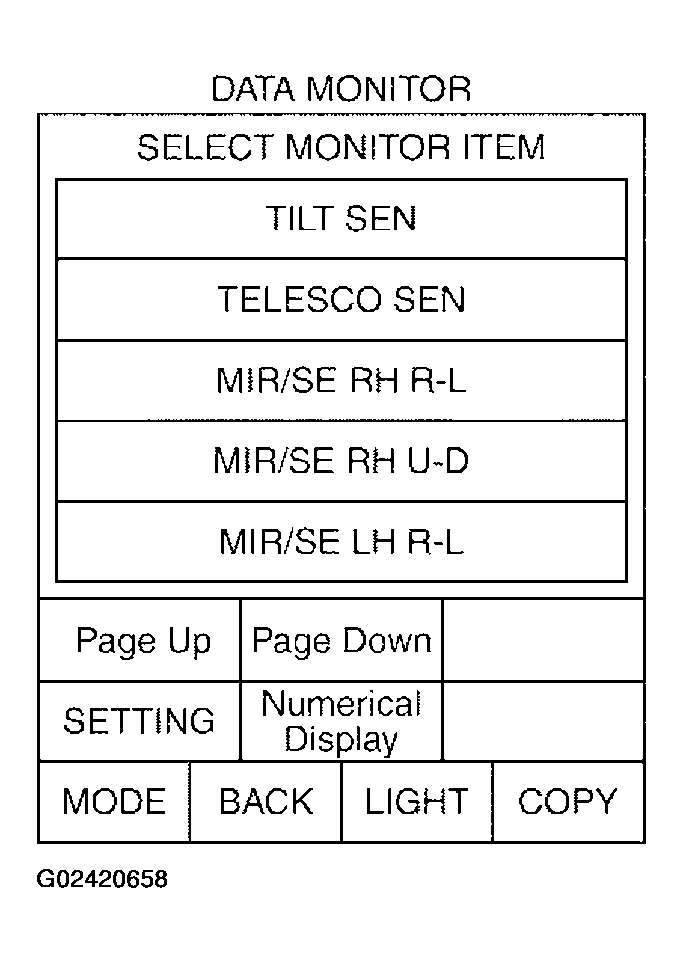

Fig 2: DATA MONITOR - CONSULT II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between automatic drive positioner connector and ground.

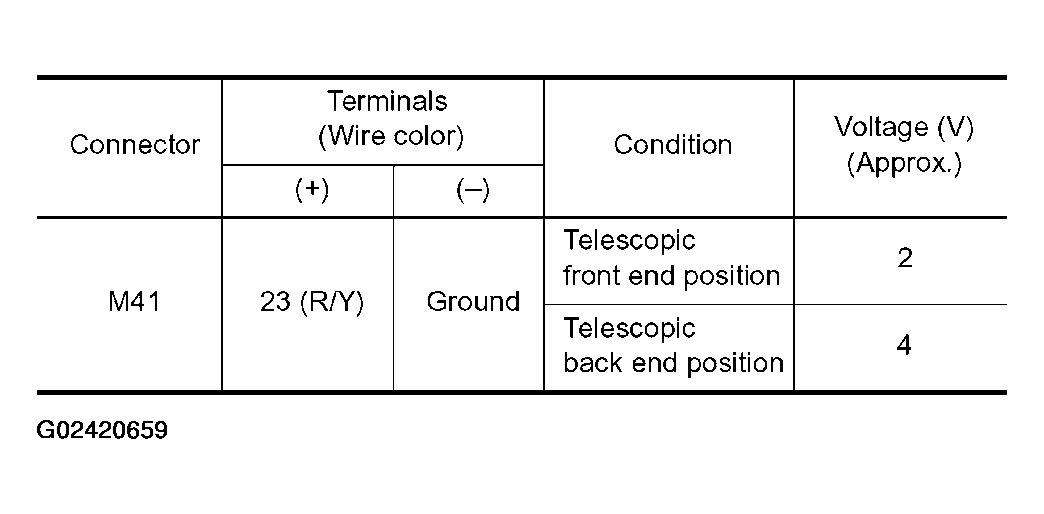

  Fig 3: Terminals Voltage Reference Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

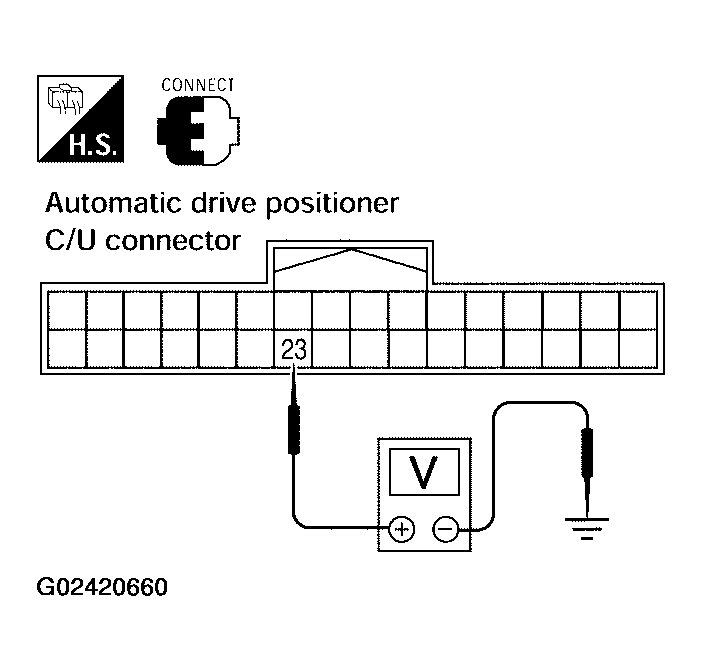

  Fig 4: Checking Voltage Between Automatic Drive Positioner Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Telescopic sensor circuit is OK.
- NG: GO TO 2.
CHECK HARNESS CONTINUITY
1. Disconnect automatic drive positioner control unit and steering wheel telescopic sensor.
2. Check continuity between automatic drive positioner connector M41, M42 terminals 23, 33, 41 and telescopic sensor connector M67 terminals 1, 2, 3.
  23 (R/Y) - 2 (R/Y): Continuity should exist.

  33 (W/L) - 1 (W/L): Continuity should exist.

  41 (Y/G) - 3 (Y/G): Continuity should exist.
3. Check continuity between automatic drive positioner control unit connectors M41, M42 terminals 23, 33, 41 and ground.
  23 (R/Y) - Ground: Continuity should not exist.

  33 (W/L) - Ground: Continuity should not exist.

  41 (Y/G) - Ground: Continuity should not exist.
OK or NG
- OK: Replace telescopic motor.
- NG: Repair or replace harness.

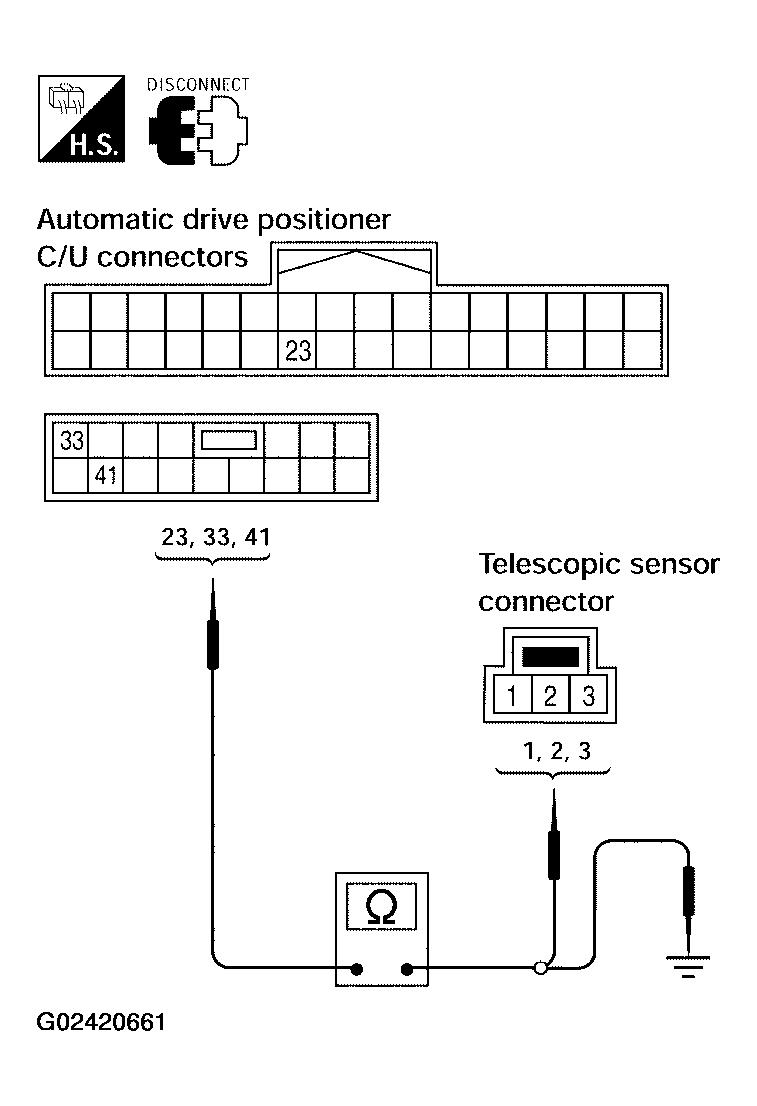

  Fig 5: Checking Harness Continuity
  Courtesy of NISSAN MOTOR CO., U.S.A.
