Seat Memory Indicator Lamp Circuit Inspection

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUNCTION

    With CONSULT-II

    With "MEMORY SW INDCTR" in ACTIVE TEST, check operation.

    TEST ITEM DESCRIPTION

    Test item Description
    MEMORY SW INDCTR The memory switch indicator is lit by receiving the drive signal.

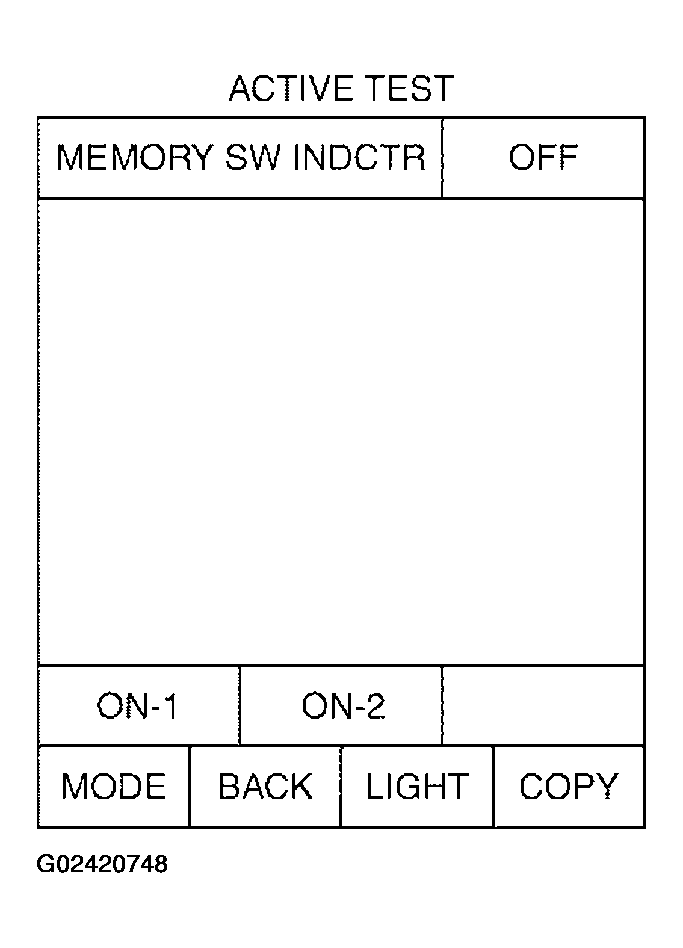

    Fig 1: ACTIVE TEST - CONSULT II Display Screen
    G02420748Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    GO TO 2.

    OK or NG

    • OK: Seat memory indicator lamp circuit is OK.
    • NG: GO TO 2.
  2. CHECK SEAT MEMORY SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect seat memory switch.
    3. Check voltage between seat memory switch connector D5 terminal 5 and ground.

      5 (Y/R) - Ground: Battery voltage

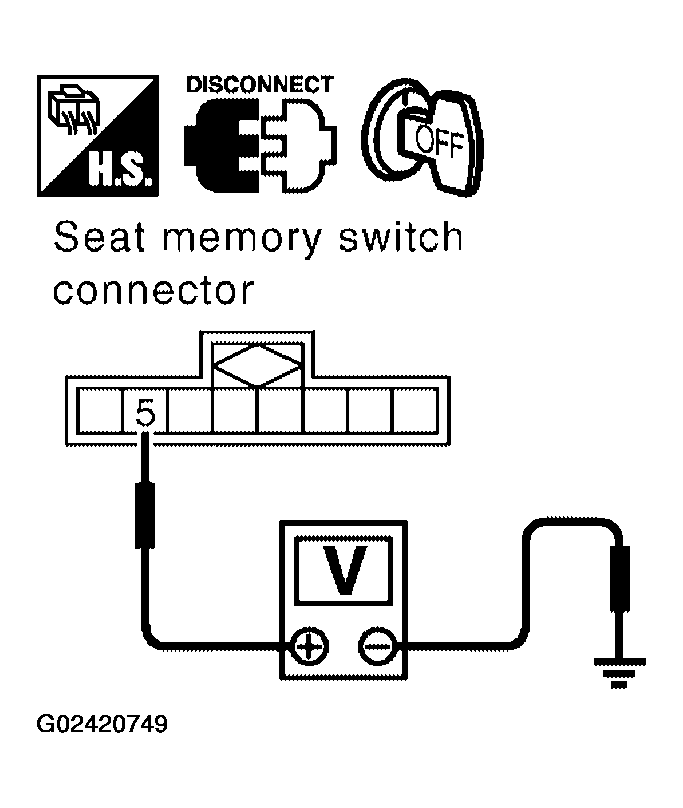

      Fig 2: Checking Voltage Between Seat Memory Switch Connector D5 Terminal 5 And Ground
      G02420749Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 3.
    • NG: Repair or replace harness.
  3. CHECK HARNESS CONTINUITY
    1. Disconnect automatic drive positioner control unit.
    2. Check continuity between automatic drive positioner control unit connector M41 terminals 12, 13 and seat memory switch connector D5 terminals 6, 7.

      12 (O) - 6 (O): Continuity should exist.

      13 (P) - 7 (P): Continuity should exist.

    3. Check continuity between automatic drive positioner control unit connector M41 terminals 12, 13 and ground.

      12 (O) - Ground: Continuity should not exist.

      13 (P) - Ground: Continuity should not exist.

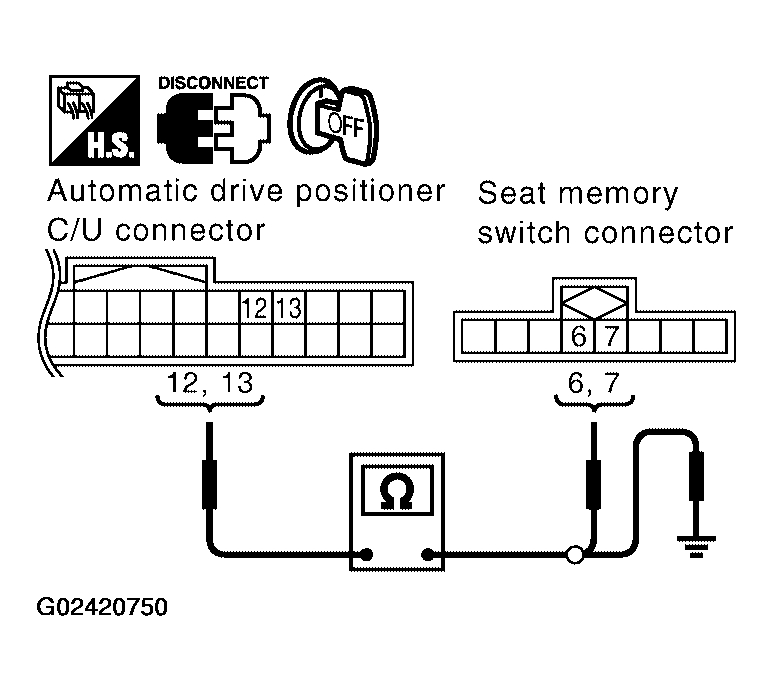

      Fig 3: Checking Harness Continuity
      G02420750Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 4.
    • NG: Repair or replace harness.
  4. CHECK SEAT MEMORY SWITCH INDICATOR SIGNAL
    1. Connect seat memory switch.
    2. Check voltage between automatic drive positioner control unit connector M41 terminals 12, 13 and ground.

      12 (O) - Ground: Battery voltage

      13 (P) - Ground: Battery voltage

    OK or NG

    • OK: Replace automatic drive positioner control unit.
    • NG: Replace seat memory switch.

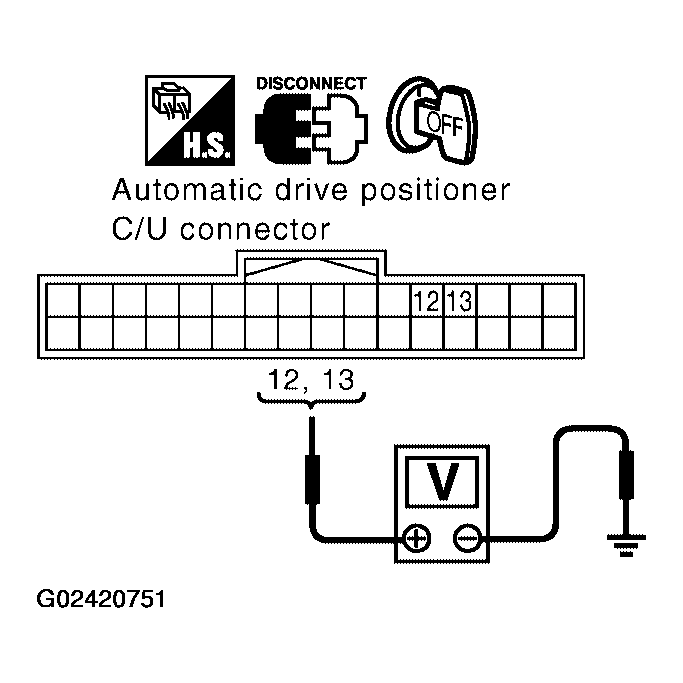

      Fig 4: Checking Voltage Between Automatic Drive Positioner Control Unit Connector M41 Terminals 12, 13 And Ground
      G02420751Courtesy of NISSAN MOTOR CO., U.S.A.
