Rear Lifting Switch Circuit Inspection

With CONSULT-II

With "LIFT RR SW-UP, LIFT RR SW-DN" on the DATA MONITOR, operate the rear lifting switch to check ON/OFF operation.

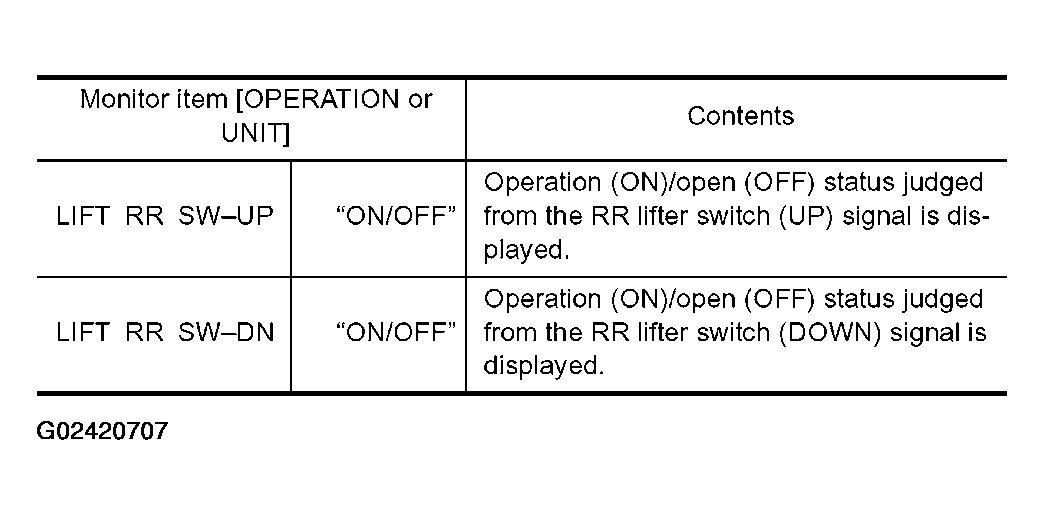

Fig 1: Rear Lifting Switch Circuit - Monitor Item Contents Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

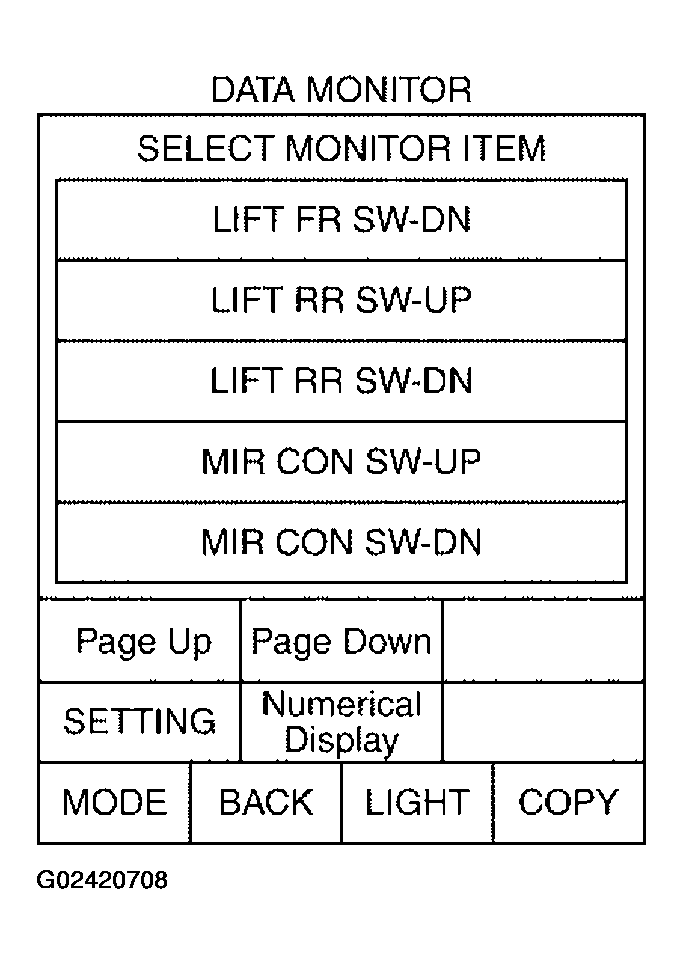

Fig 2: DATA MONITOR - CONSULT II Display Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

1. Turn ignition switch OFF.
2. Check voltage between driver seat control unit connector and ground.

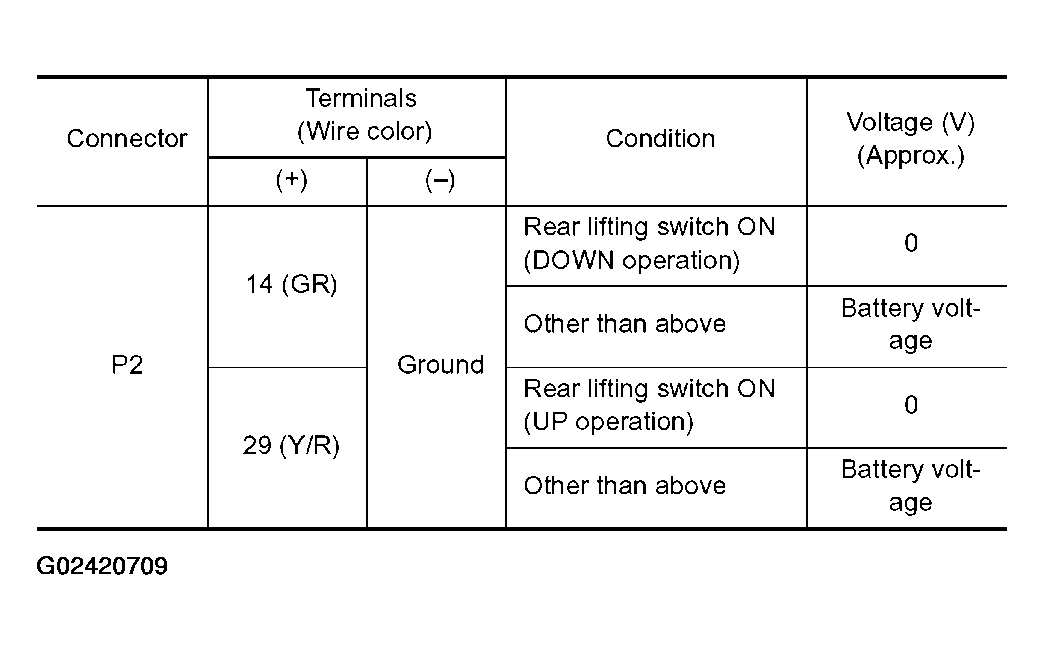

   Fig 3: Terminals Voltage Reference Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: Rear seat lifting switch circuit is OK.
• NG: GO TO 2.

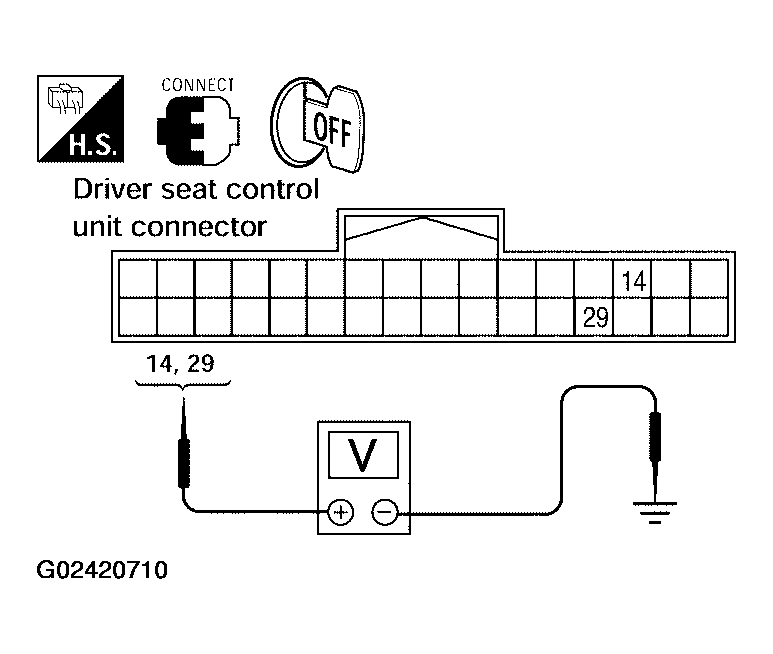

  Fig 4: Checking Voltage Between Driver Seat Control Unit Connector And Ground

  Courtesy of NISSAN MOTOR CO., U.S.A.

1. Disconnect driver seat control unit and power seat switch LH.
2. Check continuity between driver seat control unit connector P2 terminals 14, 29 and power seat switch connector P8 terminals 7, 8.

   14 (GR) - 8 (GR): Continuity should exist.

   29 (Y/R) - 7 (Y/R): Continuity should exist.

3. Check continuity between driver seat control unit connector P2 terminals 14, 29 and ground.

   14 (GR) - Ground: Continuity should not exist.

   29 (Y/R) - Ground: Continuity should not exist.

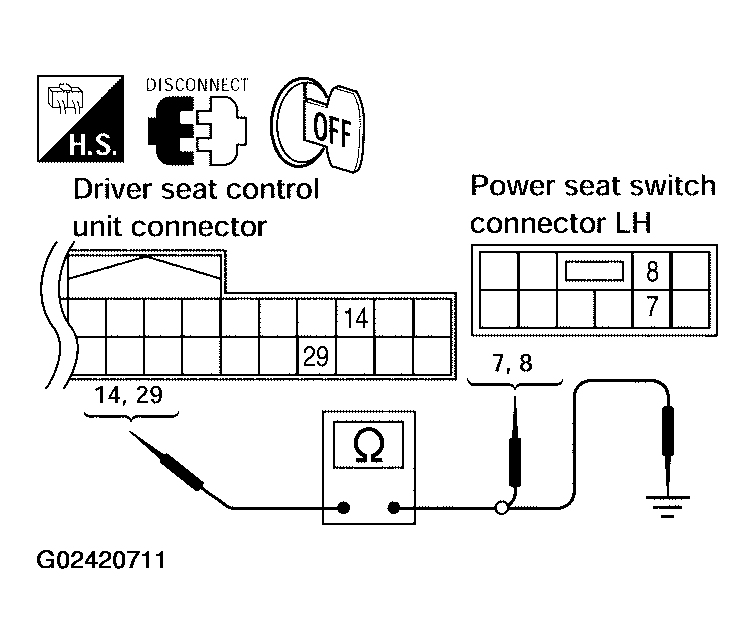

   Fig 5: Checking Continuity Between Driver Seat Control Unit Connector P2 Terminals 14, 29, Power Seat Switch Connector P8 Terminals 7, 8 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: GO TO 3.
• NG: Repair or replace harness.

Check continuity between power seat switch LH as follows.

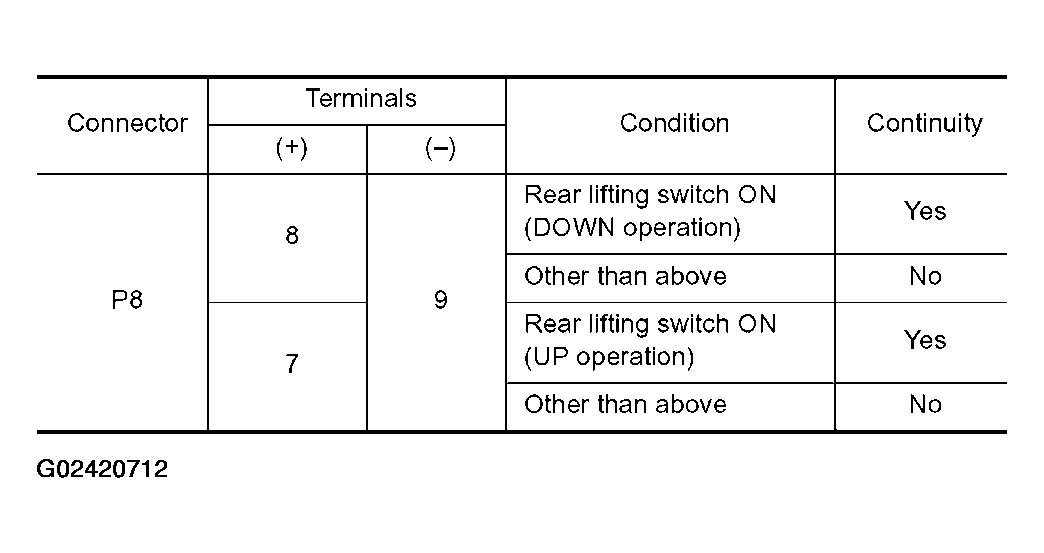

Fig 6: Terminals Continuity Reference Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

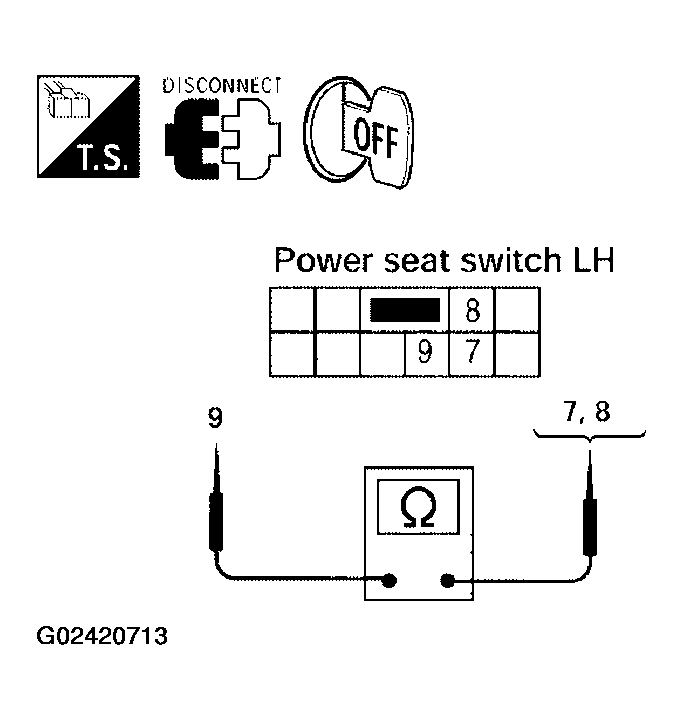

Fig 7: Checking Continuity Between Power Seat Switch LH

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: Check the condition of the harness and connector.
• NG: Replace power seat switch LH.
