Setting Change Function

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

The settings of the automatic driving position system can be changed, using CONSULT-II.

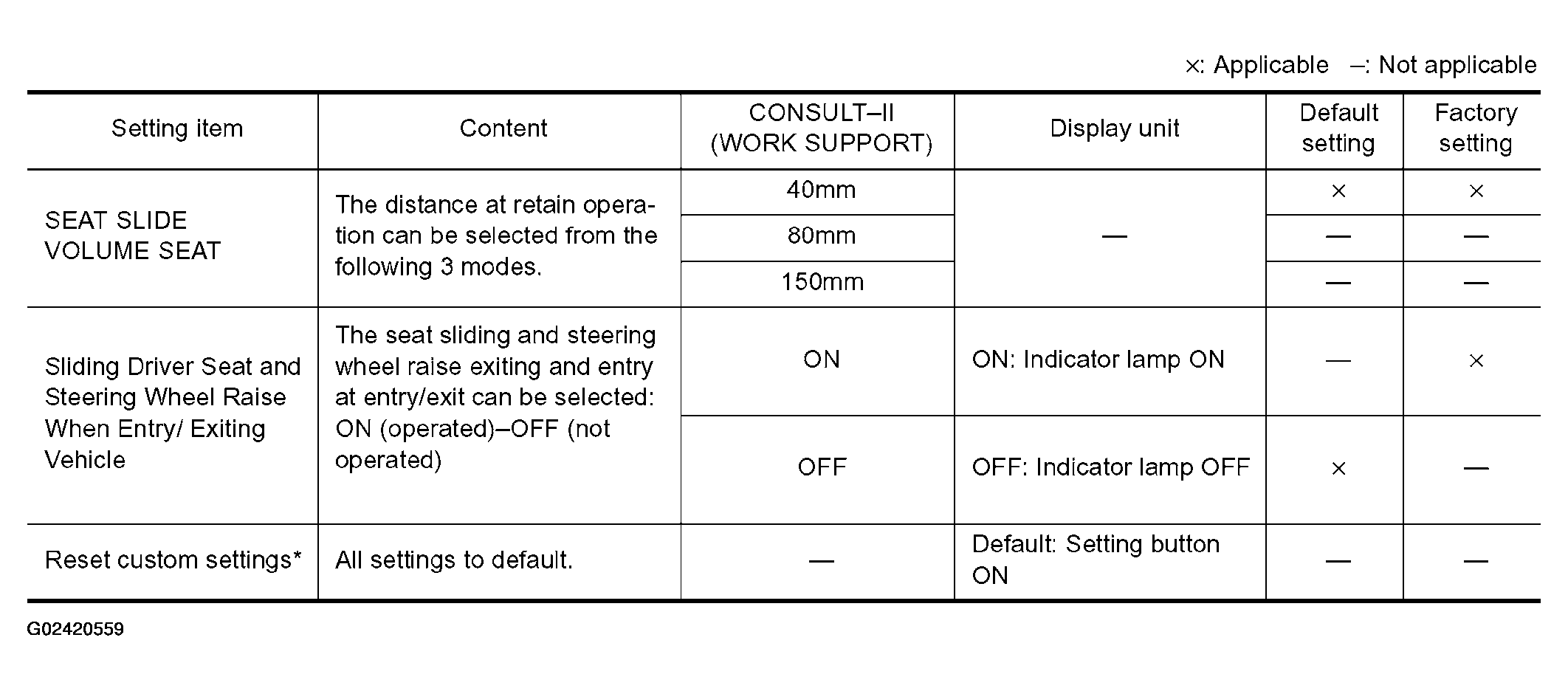

Fig 1: Setting Change Function Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

It is possible to set sliding driver seat and steering wheel raise for entry/exit of vehicle by pressing set switch.

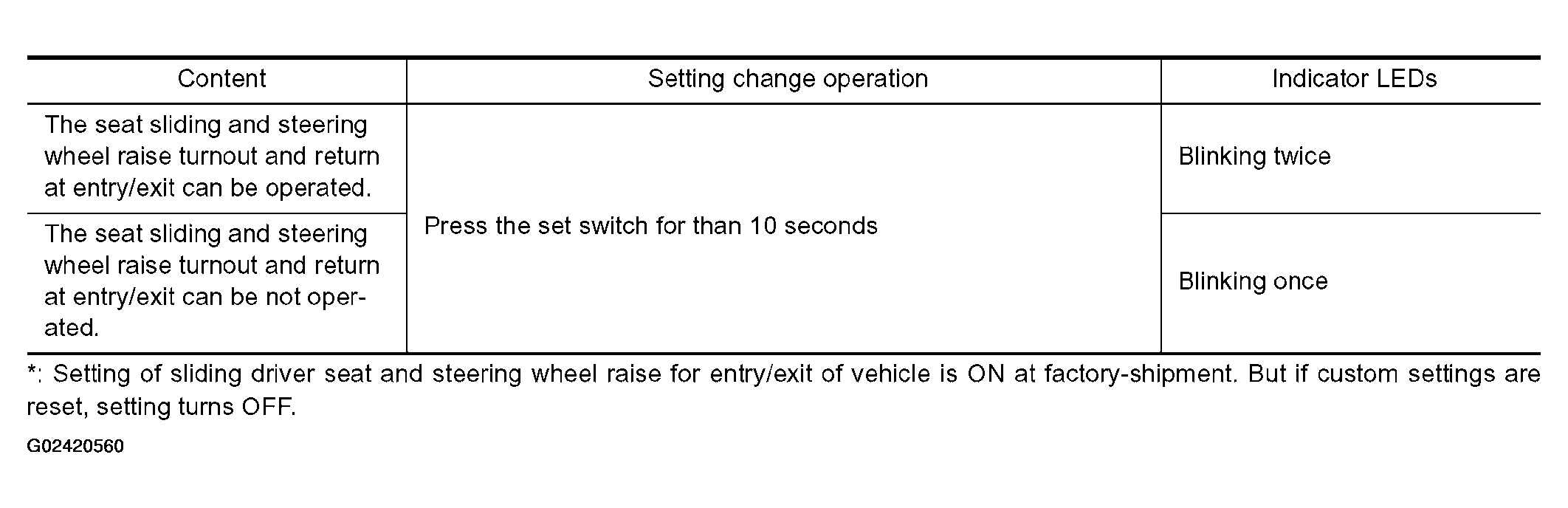

Fig 2: Set Switch Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

After the setting is registered, the new setting is effective, even if the battery is disconnected.
If setting change function cannot be set with CONSULT-II or display, refer to "CONSULT-II FUNCTION (AUTO DRIVE POS.) ".
If setting change function cannot be set with set switch, refer to "SEAT MEMORY SWITCH CIRCUIT INSPECTION ".
