Mirror Sensor RH Circuit Inspection

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK MIRROR SENSOR RH INPUT/OUTPUT SIGNAL
With CONSULT-II

Check operation with "MIR/SE RH R-L, MIR/SE RH U-D" on the DATA MONITOR to make sure pulse changes.

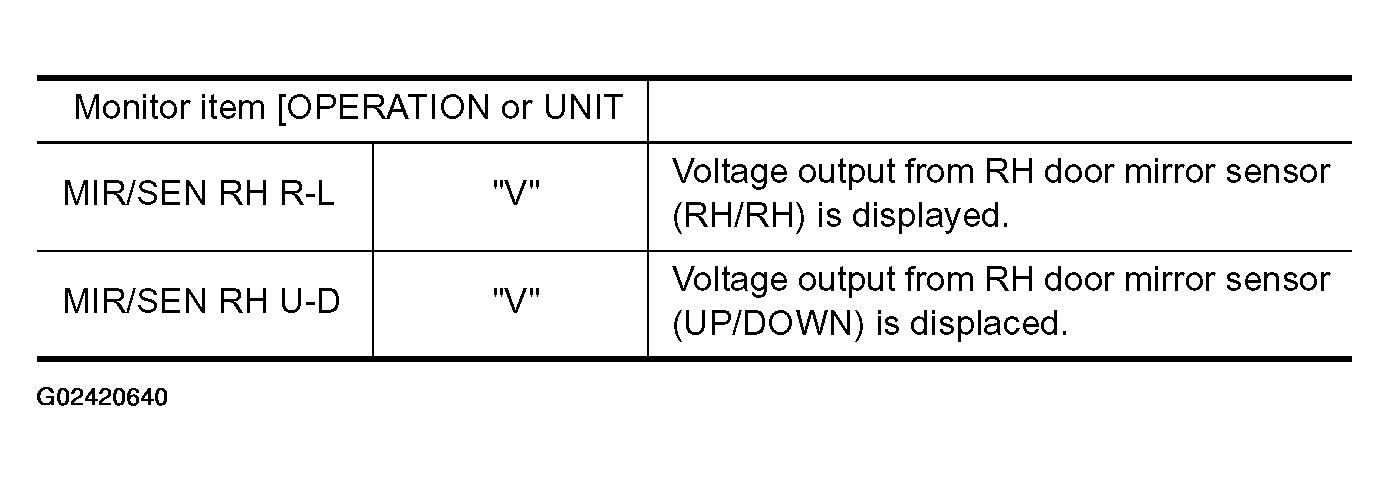

Fig 1: Mirror Sensor RH Circuit - Monitor Item Condition Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

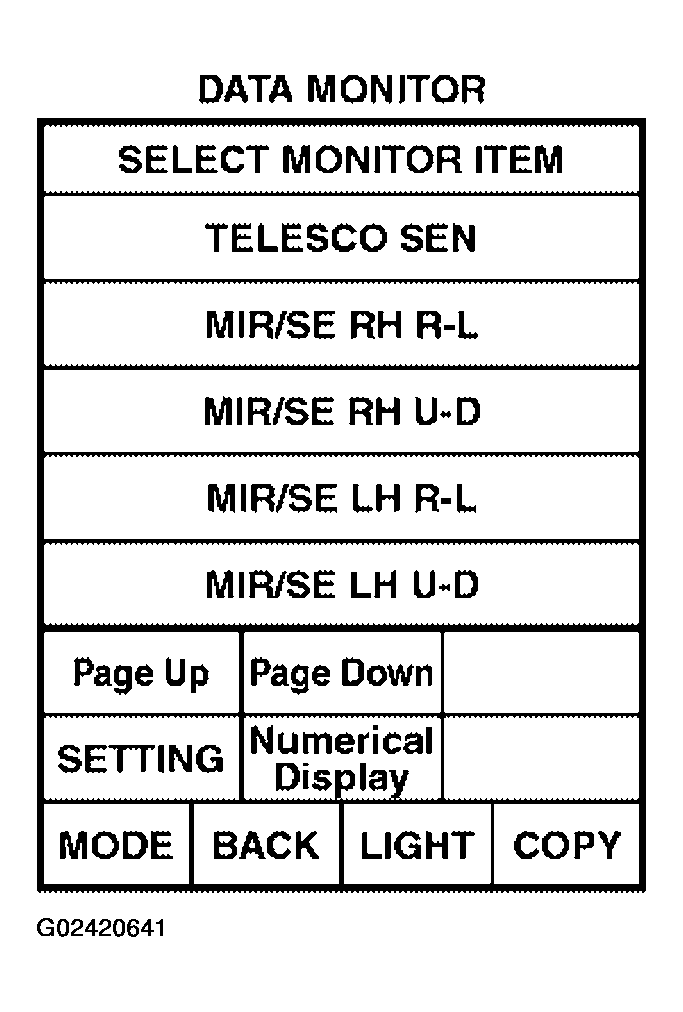

Fig 2: DATA MONITOR - CONSULT II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II
1. Turn ignition switch to ACC.
2. Check voltage between door mirror RH connector and ground.

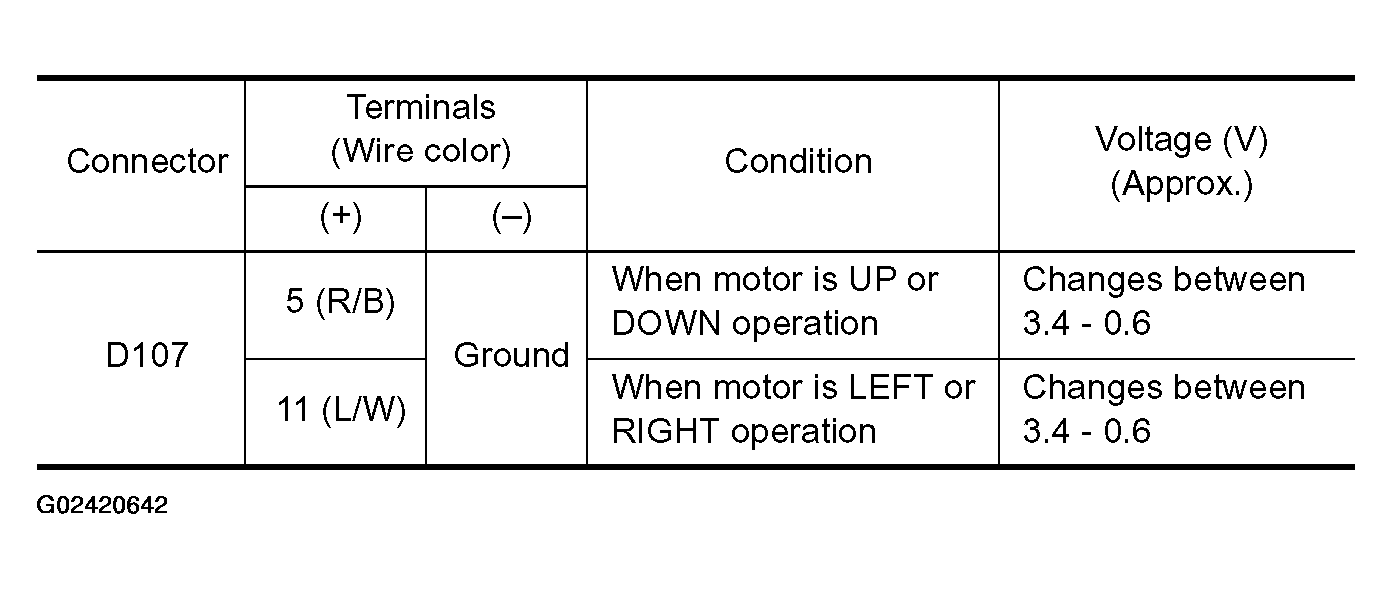

  Fig 3: Terminals Voltage Reference Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

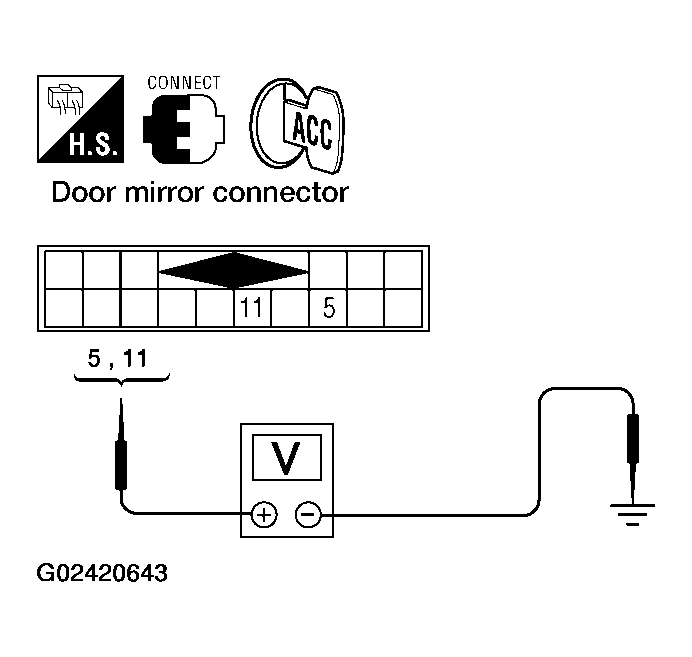

  Fig 4: Checking Voltage Between Door Mirror RH Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Mirror sensor RH circuit is OK.
- NG: GO TO 2.
CHECK HARNESS CONTINUITY 1
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mirror RH.
3. Check continuity between automatic drive positioner control unit connector M42 terminals 33, 41 and door mirror RH connector D107 terminals 4, 12.
  33 (W/L) - 4 (W/L): Continuity should exist.

  41 (Y/G) - 12 (LG): Continuity should exist.
4. Check continuity between driver seat control unit connector M42 terminals 33, 41 and ground.
  33 (W/L) - Ground: Continuity should not exist.

  41 (Y/G) - Ground: Continuity should not exist.
OK or NG
- OK: GO TO 3.
- NG: Repair or replace harness.

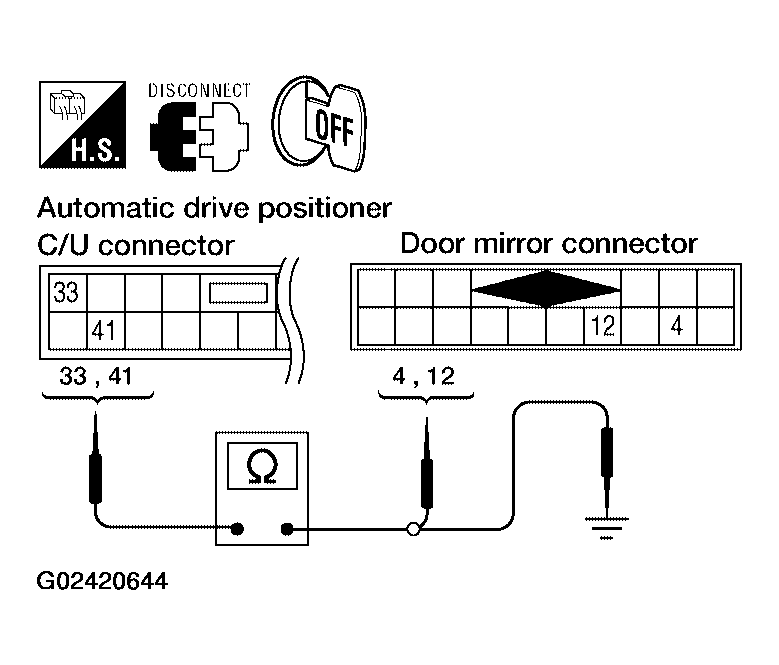

  Fig 5: Checking Continuity Between Automatic Drive Positioner Control Unit Connector M42 Terminals 33, 41, Door Mirror RH Connector D107 Terminals 4, 12 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK HARNESS CONTINUITY 2
1. Check continuity between automatic drive positioner control unit connector M41 terminals 5, 21 and door mirror RH connector D107 terminals 5, 11.
  5 (R/B) - 5 (R/B): Continuity should exist.

  21 (L/W) - 11 (L/W): Continuity should exist.
2. Check continuity between driver seat control unit connector M41 terminals 5, 21 and ground.
  5 (R/B) - Ground: Continuity should not exist.

  21 (L/W) - Ground: Continuity should not exist.

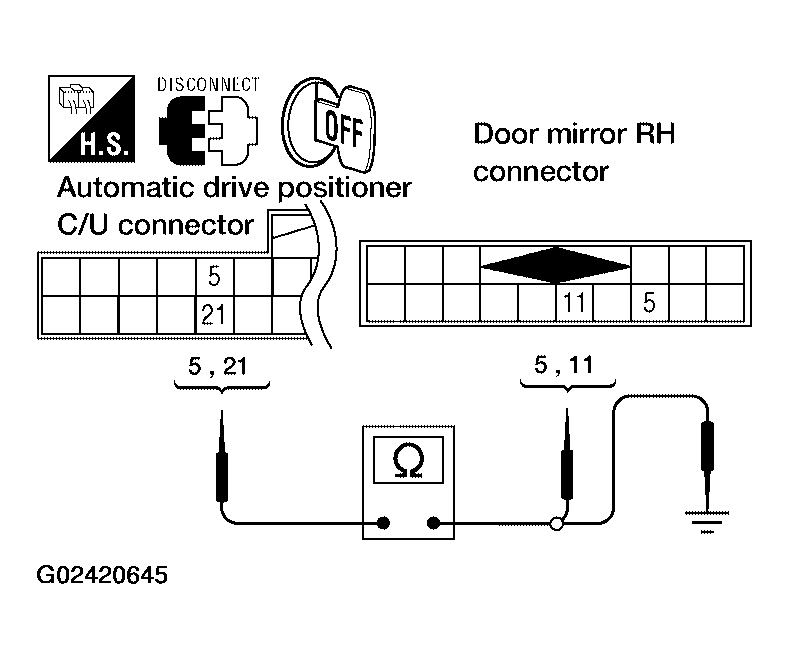

  Fig 6: Checking Continuity Between Automatic Drive Positioner Control Unit Connector M41 Terminals 5, 21, Door Mirror RH Connector D107 Terminals 5, 11 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Replace door mirror RH.
- NG: Repair or replace harness.
