Mirror Sensor LH Circuit Inspection

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK MIRROR SENSOR LH INPUT/OUTPUT SIGNAL
With CONSULT-II

Check operation with "MIR/SE LH R-L, MIR/SE LH U-D" on the DATA MONITOR to make sure pulse changes.

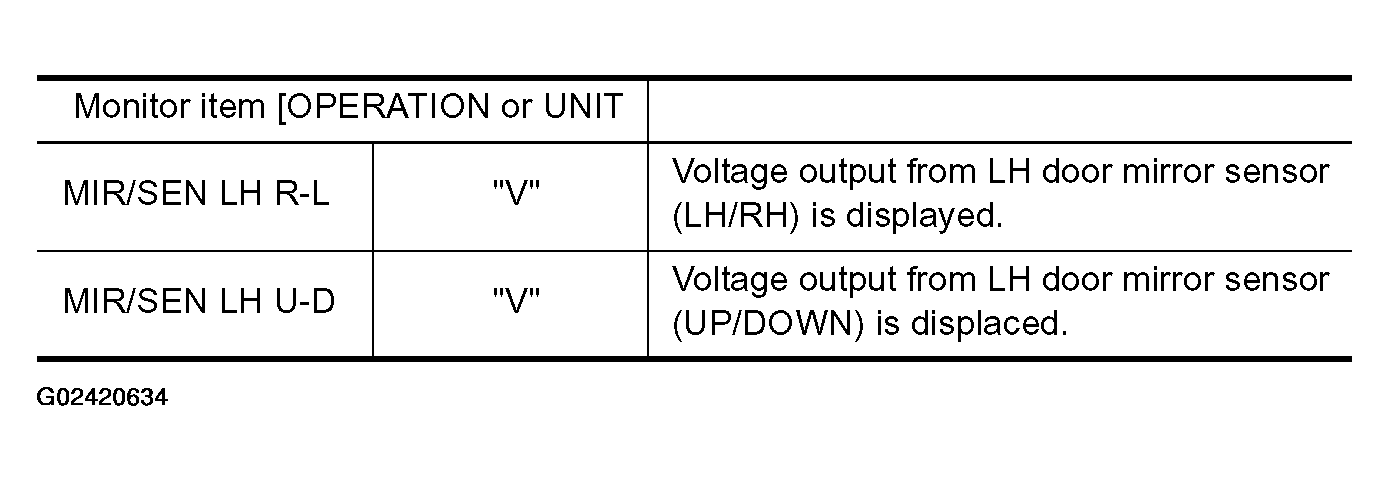

Fig 1: Mirror Sensor LH Circuit - Monitor Item Condition Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

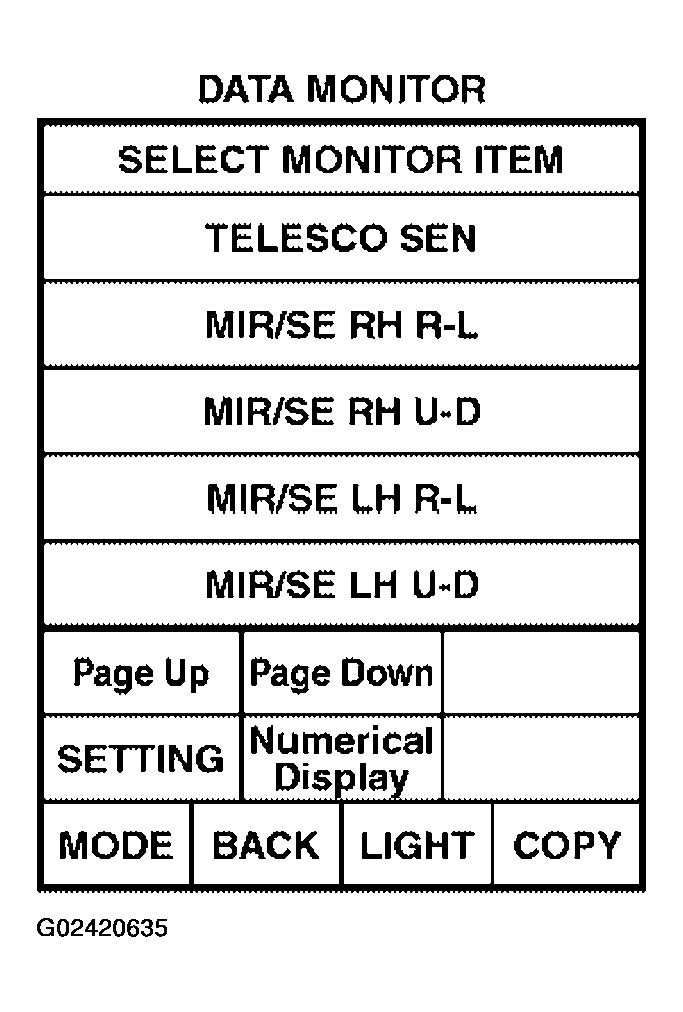

Fig 2: DATA MONITOR - CONSULT II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II
1. Turn ignition switch to ACC.
2. Check voltage between door mirror LH connector and ground.

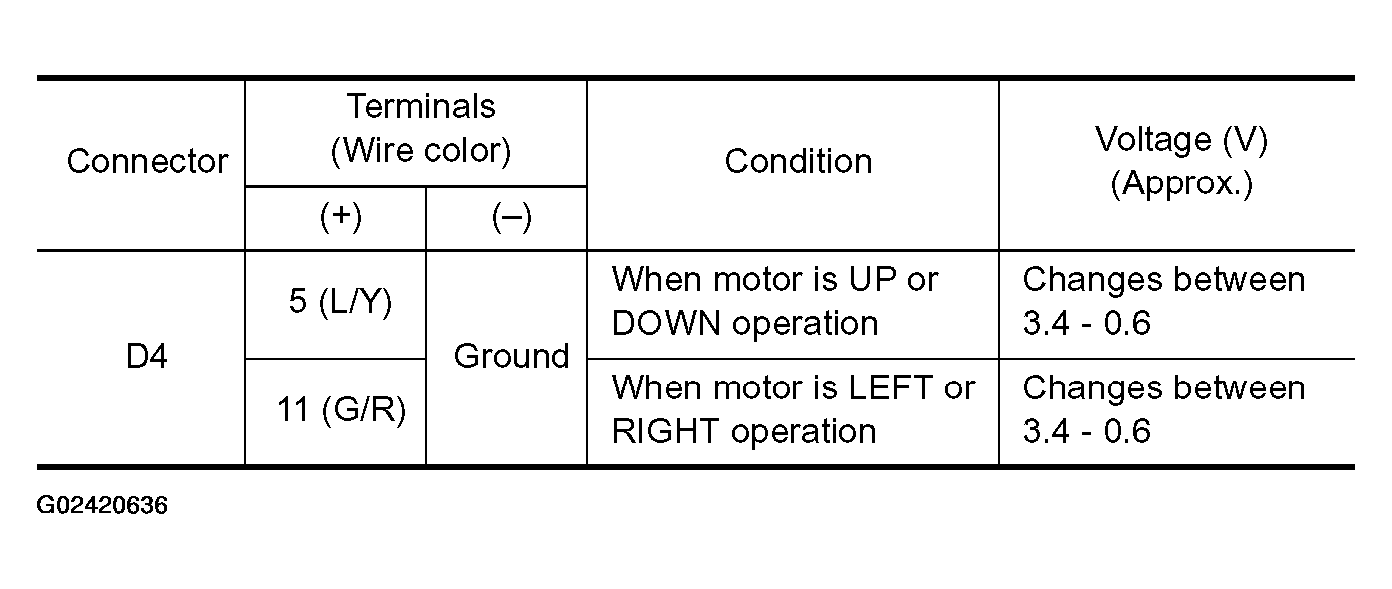

  Fig 3: Terminals Voltage Reference Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

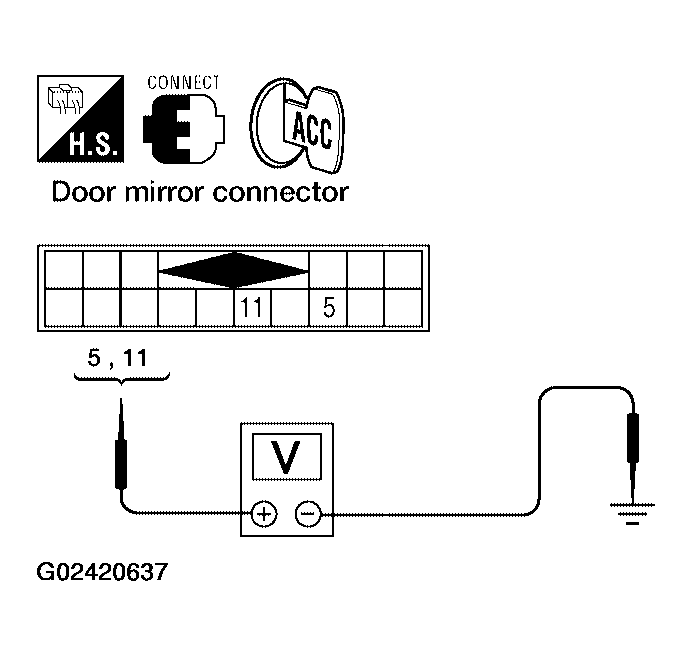

  Fig 4: Checking Voltage Between Door Mirror LH Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Mirror sensor LH circuit is OK.
- NG: GO TO 2.
CHECK HARNESS CONTINUITY 1
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mirror LH.
3. Check continuity between automatic drive positioner control unit connector 42 terminals 33, 41 and door mirror LH connector D4 terminals 4, 12.
  33 (W/L) - 4 (W/L): Continuity should exist.

  41 (Y/G) - 12 (LG): Continuity should exist.
4. Check continuity between driver seat control unit connector M42 terminals 33, 41 and ground.
  33 (W/L) - Ground: Continuity should not exist.

  41 (Y/G) - Ground: Continuity should not exist.
OK or NG
- OK: GO TO 3.
- NG: Repair or replace harness.

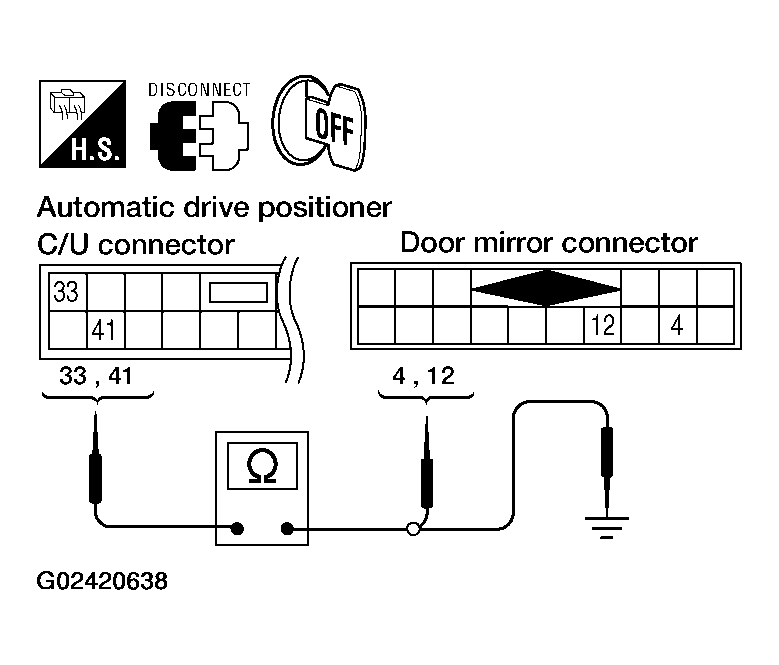

  Fig 5: Checking Continuity Between Automatic Drive Positioner Control Unit Connector 42 Terminals 33, 41, Door Mirror LH Connector D4 Terminals 4, 12 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK HARNESS CONTINUITY 2
1. Check continuity between automatic drive positioner control unit connector M41 terminals 6, 22 and door mirror LH connector D4 terminals 5, 11.
  6 (L/Y) - 5 (L/Y): Continuity should exist.

  22 (G/R) - 11 (G/R): Continuity should exist.
2. Check continuity between driver seat control unit connector M41 terminals 6, 22 and ground.
  6 (L/Y) - Ground: Continuity should not exist.

  22 (G/R) - Ground: Continuity should not exist.
OK or NG
- OK: Replace door mirror LH.
- NG: Repair or replace harness.

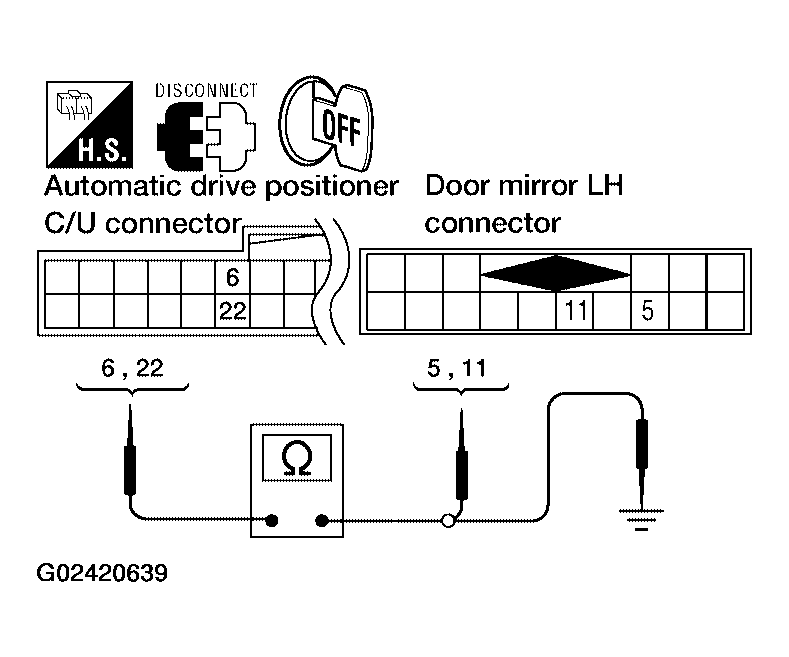

  Fig 6: Checking Continuity Between Automatic Drive Positioner Control Unit Connector M41 Terminals 6, 22 And Door Mirror LH Connector D4 Terminals 5, 11 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
