Mirror Motor RH Circuit Inspection

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK MIRROR MOTOR RH MECHANISM

    Check the following.

    • Operation malfunction caused by lifter mechanism deformation or pinched harness or other foreign materials
    • Operation malfunction caused by foreign materials adhered to the mirror motor or lead screws
    • Operation malfunction and interference with other parts by poor installation

    OK or NG

    • OK: GO TO 2.
    • NG: Repair the malfunctioning part and check again.
  2. CHECK FUNCTION

    With CONSULT-II

    Check operation with "MIRROR MOTOR RH" in ACTIVE TEST.

    TEST ITEM DESCRIPTION

    Test item Description
    MIRROR MOTOR RH The mirror motor LH is activated by receiving the drive signal.

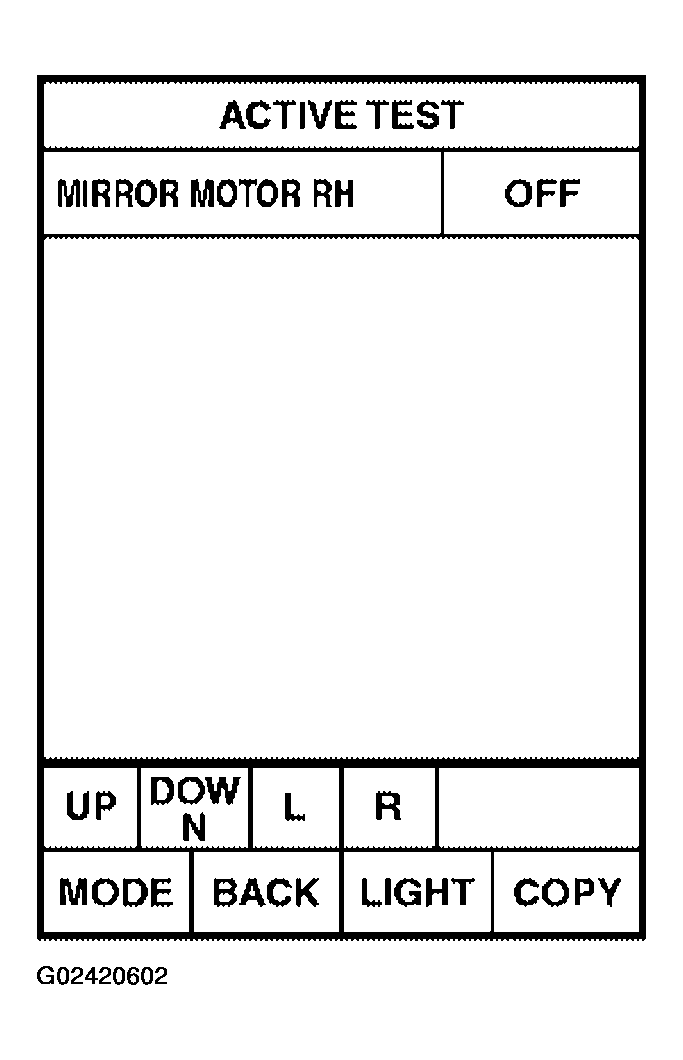

    Fig 1: ACTIVE TEST - CONSULT II Display Screen
    G02420602Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    GO TO 3.

    OK or NG

    • OK: Mirror motor RH circuit is OK.
    • NG: GO TO 3.
  3. CHECK MIRROR MOTOR RH HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect automatic drive positioner control unit and door mirror RH.
    3. Check continuity between automatic drive positioner control unit connector M41 terminals 14, 15, 30 and door mirror RH connector D107 terminals 8, 9, 10.

      14 (GR/R) - 10 (GR/R): Continuity should exist.

      15 (L/Y) - 9 (L/Y): Continuity should exist.

      30 (L/R) - 8 (L/R): Continuity should exist.

    4. Check continuity between automatic drive positioner control unit connector M41 terminals 14, 15, 30 and ground.

      14 (GR/R) - Ground: Continuity should not exist.

      15 (L/Y) - Ground: Continuity should not exist.

      30 (L/R) - Ground: Continuity should not exist.

    OK or NG

    • OK: GO TO 4.
    • NG: Repair or replace harness.

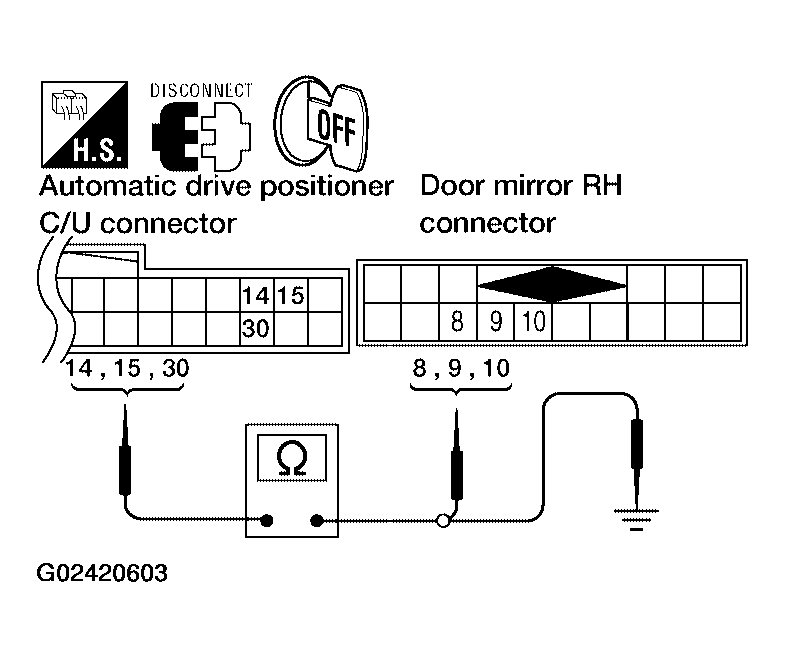

      Fig 2: Checking Continuity Between Automatic Drive Positioner Control Unit Connector M41 Terminals 14, 15, 30 And Door Mirror RH Connector D107 Terminals 8, 9, 10
      G02420603Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT OUTPUT SIGNAL
    1. Connect the automatic drive positioner control unit and door mirror RH.
    2. Turn ignition switch to ACC.
    3. Check voltage between door mirror RH connector and ground.

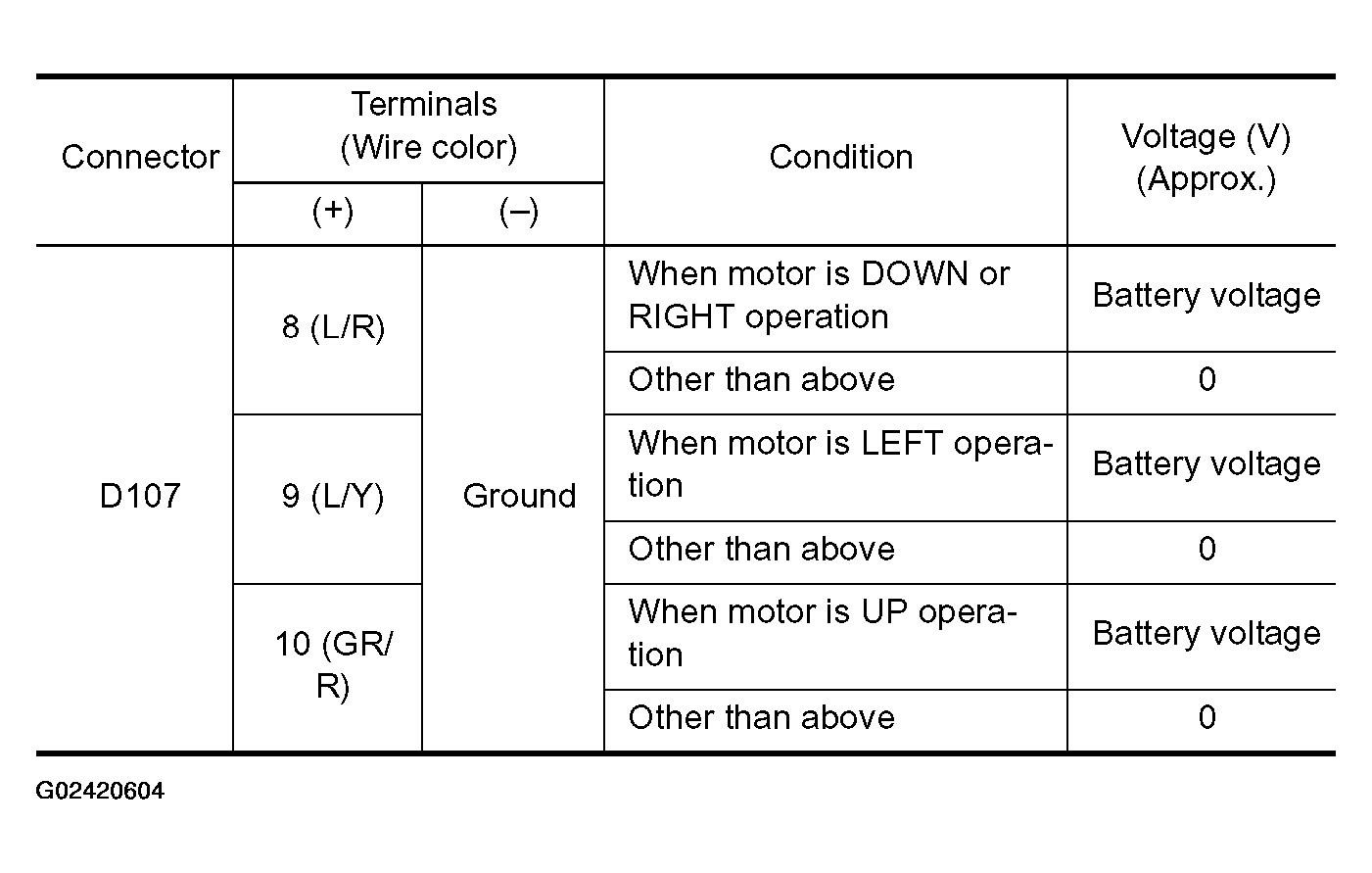

      Fig 3: Terminals Voltage Reference Chart
      G02420604Courtesy of NISSAN MOTOR CO., U.S.A.

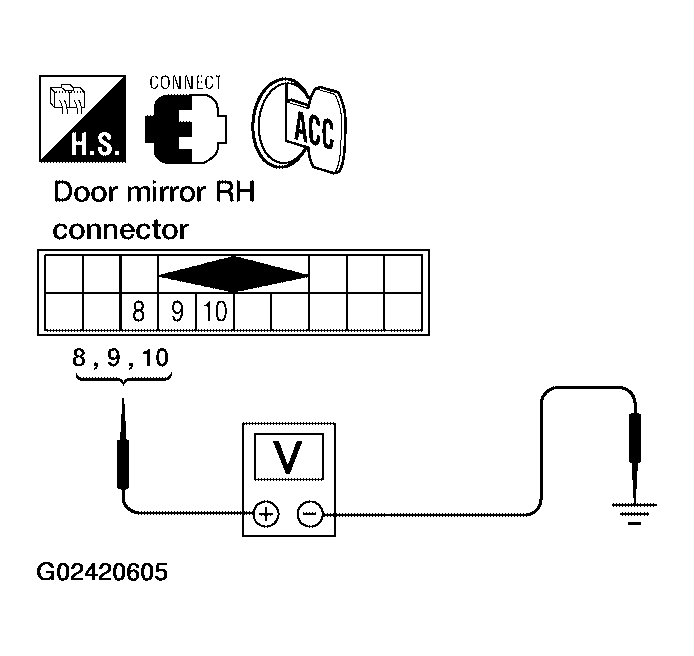

      Fig 4: Checking Voltage Between Door Mirror RH Connector And Ground
      G02420605Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: Replace door mirror RH.
    • NG: Replace automatic drive positioner control unit.
