Door Mirror Remote Control Switch Ground Circuit Check

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT
Check continuity between door mirror remote control switch connector M6 terminal 7 (B) and ground.

7 (B) - Ground: Continuity should exist.

OK or NG
- OK: GO TO 2.
- NG: Repair or replace harness.

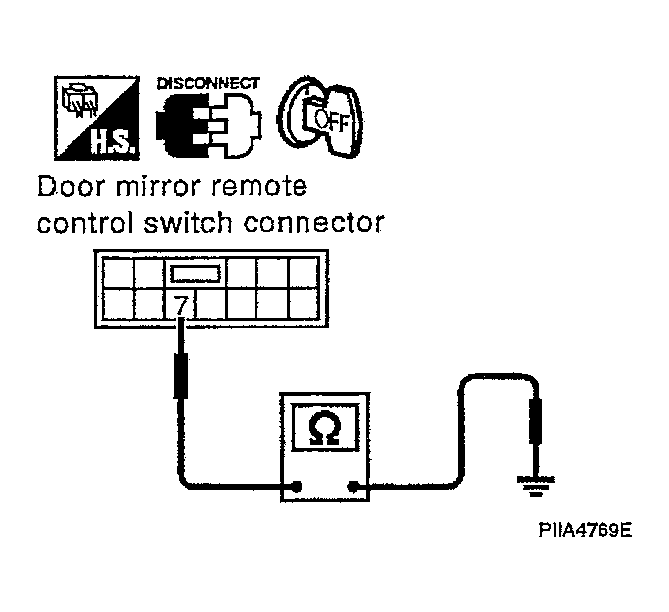

Fig 1: Checking Door Mirror Remote Control Switch Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT

Check continuity between door mirror remote control switch as follows.

Connector	Terminals (Wire Color)		Condition	Continuity
	(+)	(-)
M6	5	7	Changeover switch RIGHT position	Yes
			Changeover switch neutral position	No
	6		Changeover switch LEFT position	Yes
			Changeover switch neutral position	No

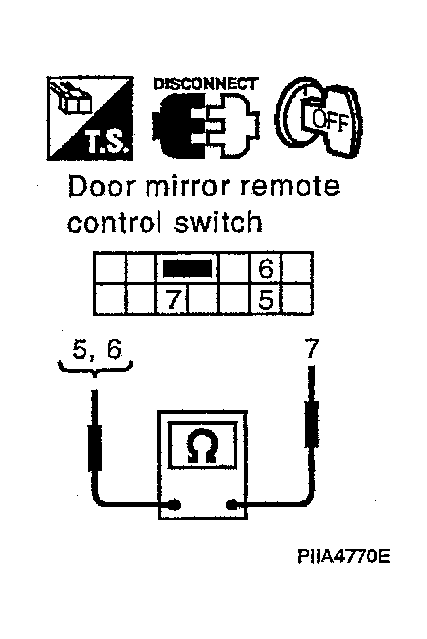

Fig 2: Checking Continuity Between Door Mirror Remote Control Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Check the condition of the harness and the connector.
NG: Replace door mirror remote control switch.
