ADP Steering Telescopic Switch Circuit Inspection

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUNCTION
With CONSULT-II

With "TELESCO SW-FR, TELESCO SW-RR" on the DATA MONITOR, operate the ADP steering telescopic switch to check ON/OFF operation.

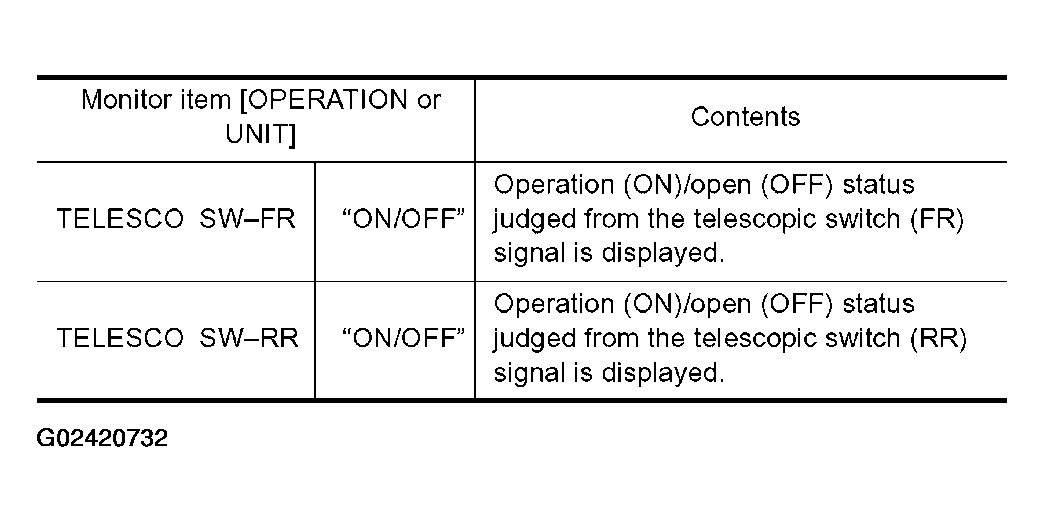

Fig 1: ADP Steering Telescopic Switch Circuit - Monitor Item Contents Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

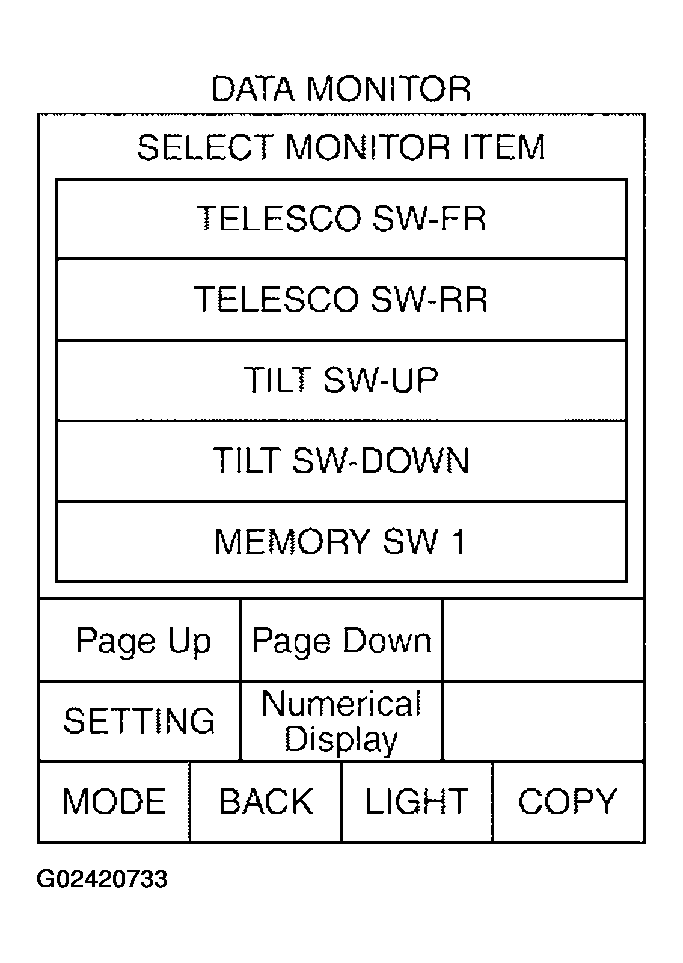

Fig 2: DATA MONITOR - CONSULT II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between automatic drive positioner control unit connector and ground.

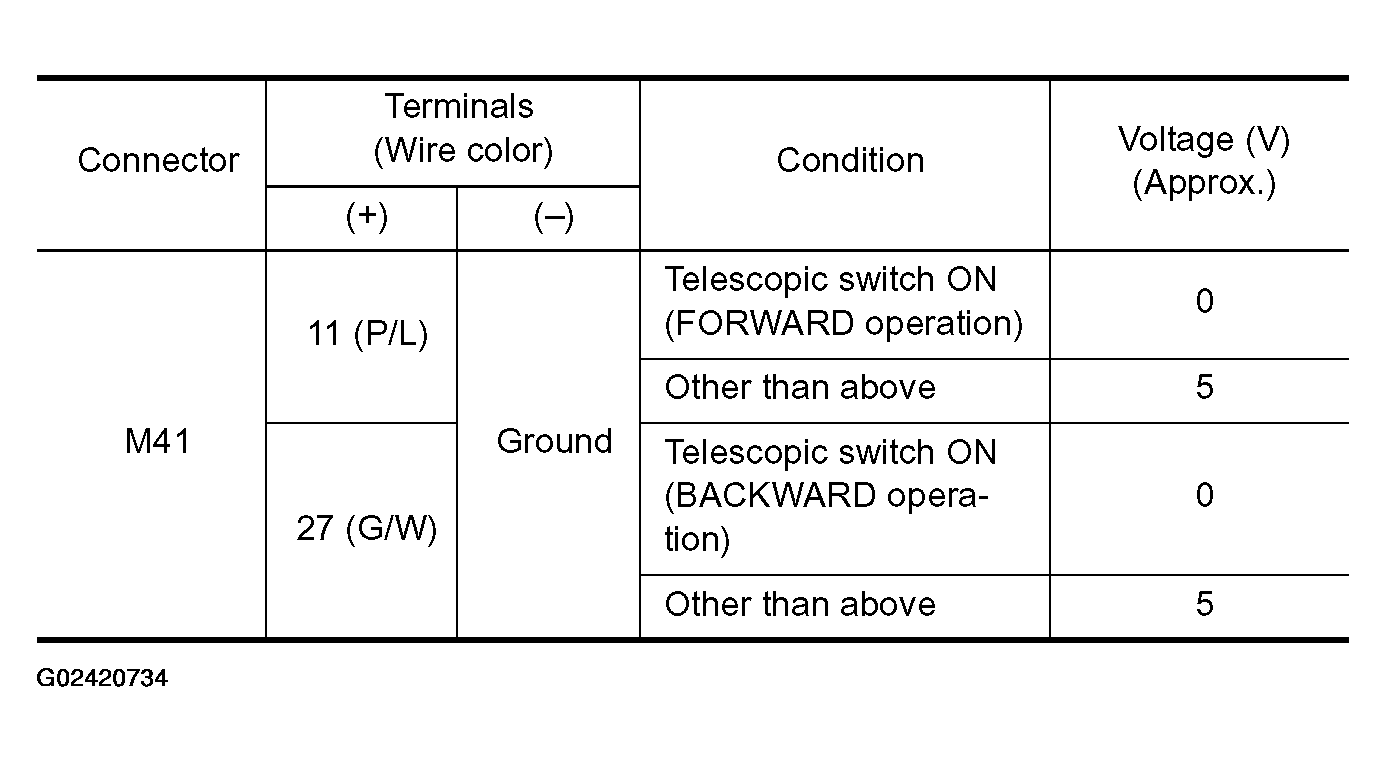

  Fig 3: Terminals Voltage Reference Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

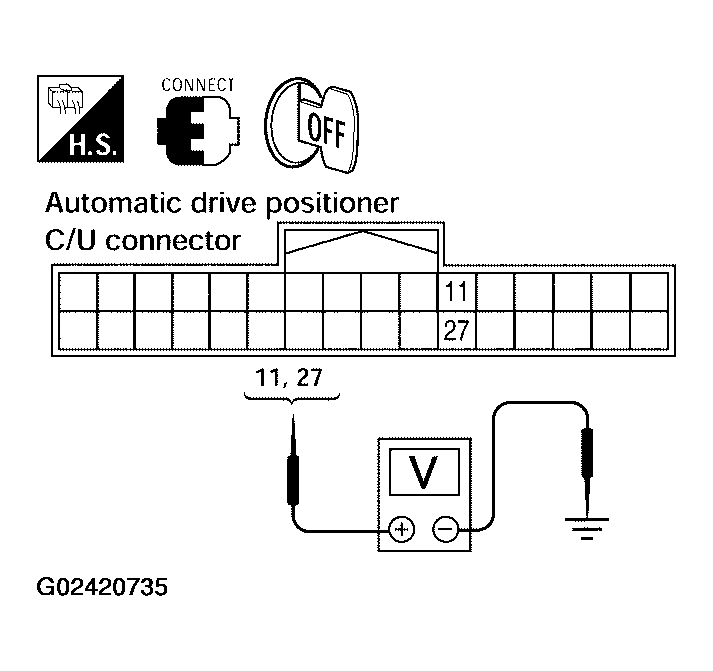

  Fig 4: Checking Voltage Between Automatic Drive Positioner Control Unit Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: ADP steering telescopic switch circuit is OK.
- NG: GO TO 2.
CHECK ADP STEERING TELESCOPIC SWITCH HARNESS CONTINUITY
1. Disconnect automatic drive positioner control unit and ADP steering switch.
2. Check continuity between automatic drive positioner control unit connector M41 terminals 11, 27 and ADP steering switch connector M16 terminals 4, 5.
  11 (P/L) - 5 (P/L): Continuity should exist.

  27 (G/W) - 4 (G/W): Continuity should exist.
3. Check continuity between automatic drive positioner control unit connector M41 terminals 11, 27 and ground.
  11 (P/L) - Ground: Continuity should not exist.

  27 (G/W) - Ground: Continuity should not exist.

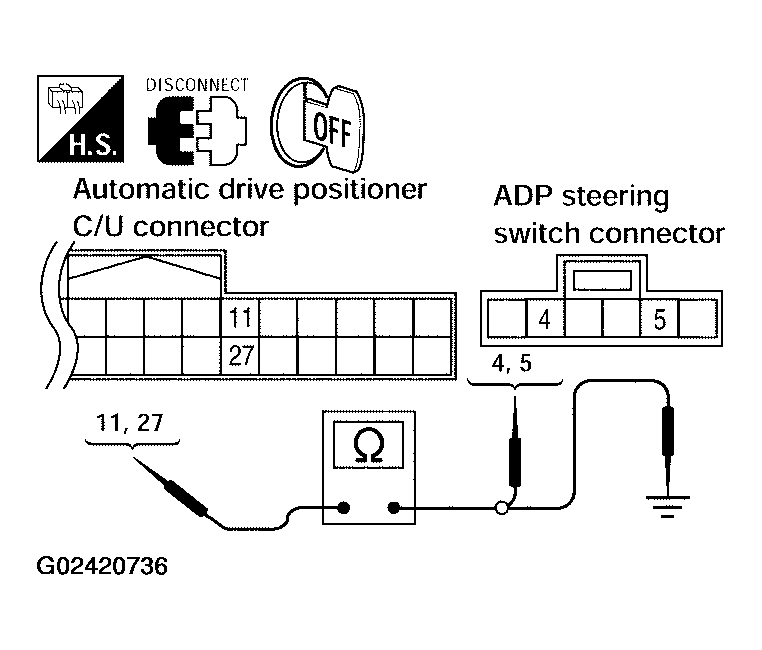

  Fig 5: Checking ADP Steering Telescopic Switch Harness Continuity
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: GO TO 3.
- NG: Repair or replace harness.
CHECK ADP STEERING TELESCOPIC SWITCH
Check continuity between ADP steering switch as follows.

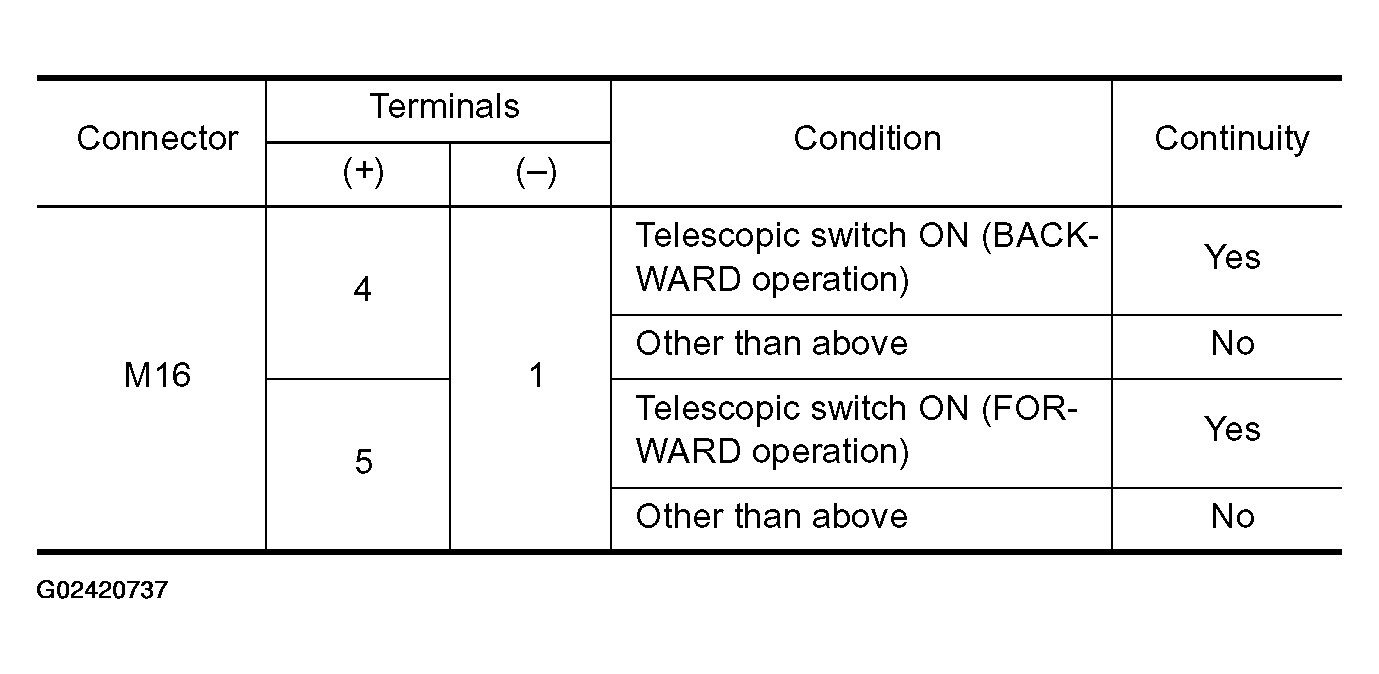

Fig 6: Terminals Continuity Reference Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

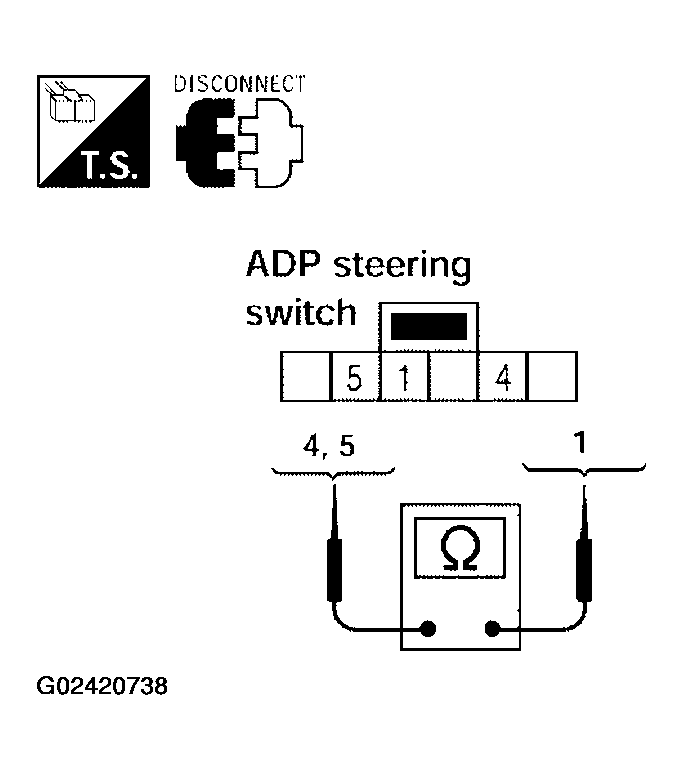

Fig 7: Checking Continuity Between ADP Steering Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK: GO TO 4.
- NG: Replace ADP steering switch.
CHECK ADP STEERING TELESCOPIC SWITCH GROUND CIRCUIT
Check continuity between ADP steering switch connector M16 terminal 1 and ground.

1 (B) - Ground: Continuity should exist.

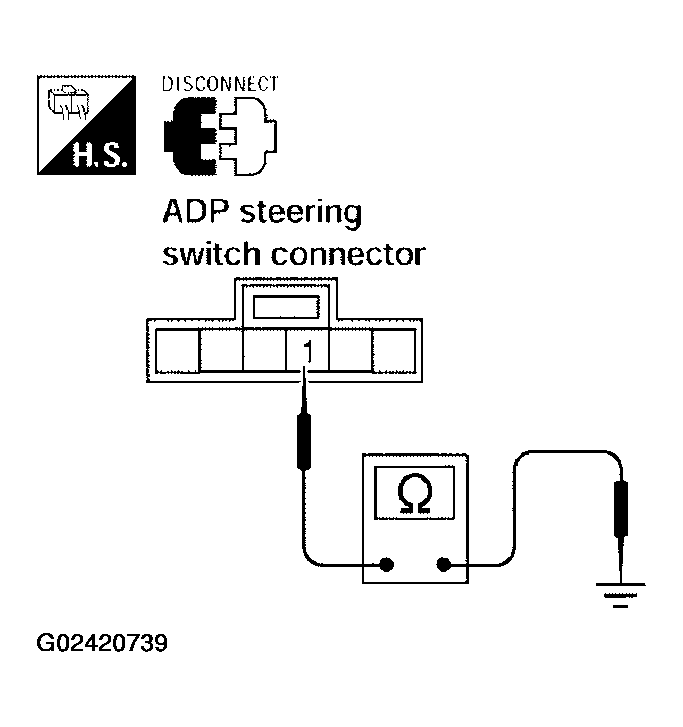

Fig 8: Checking Continuity Between ADP Steering Switch Connector M16 Terminal 1 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK: Check the condition of the harness and connector.
- NG: Replace or replace harness.
