A/T Device (Detent Switch) Circuit Inspection (A/T Model Only)

With CONSULT-II

Check that when the A/T selector lever is in P position, "DETENT SW" on the DATA MONITOR becomes OFF.

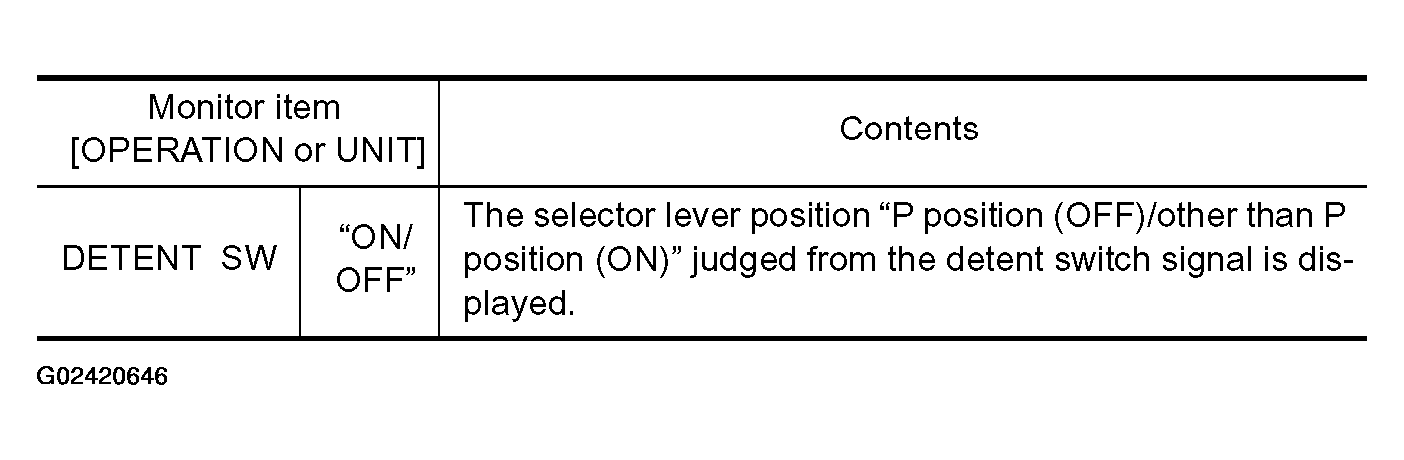

Fig 1: A/T Device (Detent Switch) Circuit - Monitor Item Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

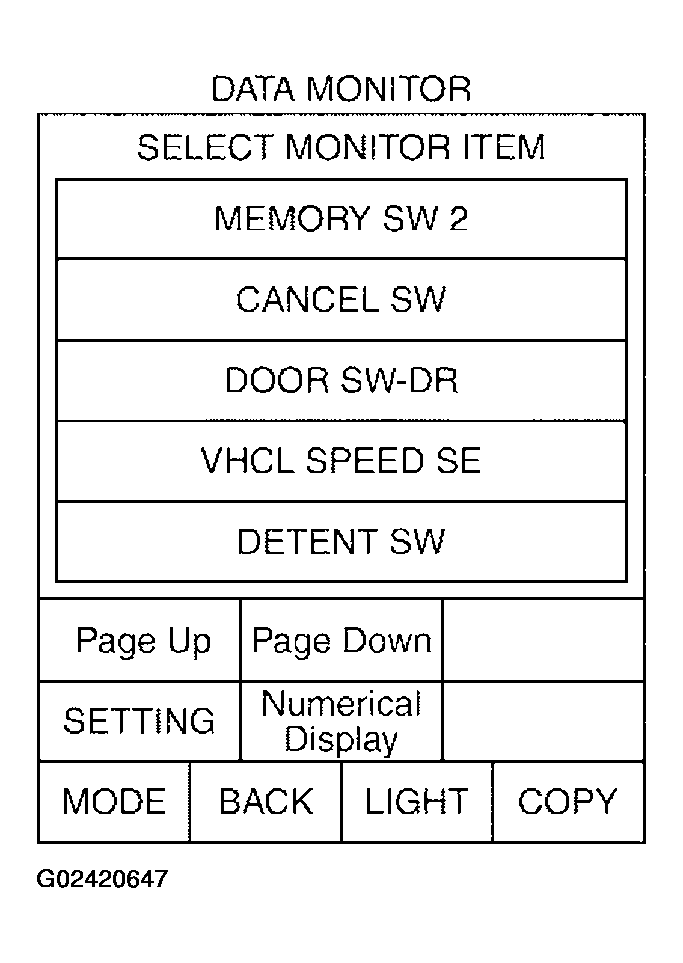

Fig 2: DATA MONITOR - CONSULT II Display Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

GO TO 2.

OK or NG

• OK: A/T device (detent switch) circuit is OK.
• NG: GO TO 2.

1. Turn ignition switch OFF.
2. Disconnect A/T device (detent switch) and key switch and key lock solenoid.
3. Check continuity between A/T device (detent switch) connector M34 terminal 5 and key switch and key lock solenoid connector M27 terminal 4.

   5 (B/R) - 4 (B/R): Continuity should exist.

4. Check continuity between A/T device (detent switch) connector M34 terminal 5 and ground.

   5 (B/R) - Ground: Continuity should not exist.

OK or NG

• OK: GO TO 3.
• NG: Repair or replace harness.

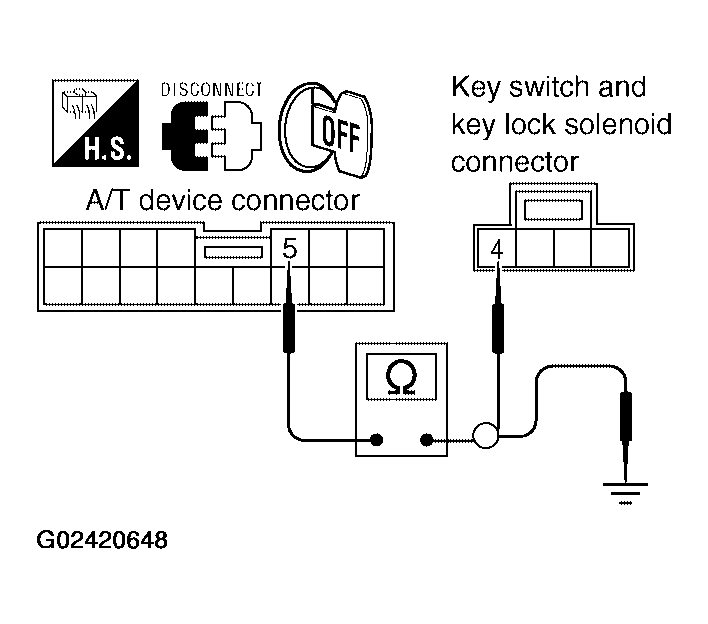

  Fig 3: Checking A/T Device (Detent Switch) Harness

  Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between detent switch as follows.

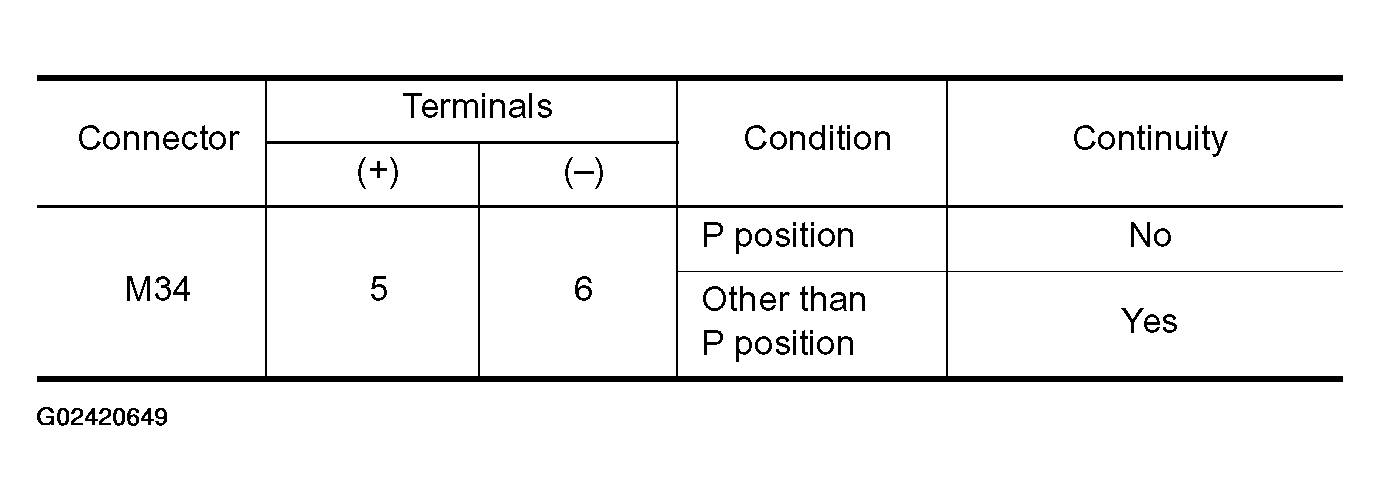

Fig 4: Terminals Continuity Reference Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

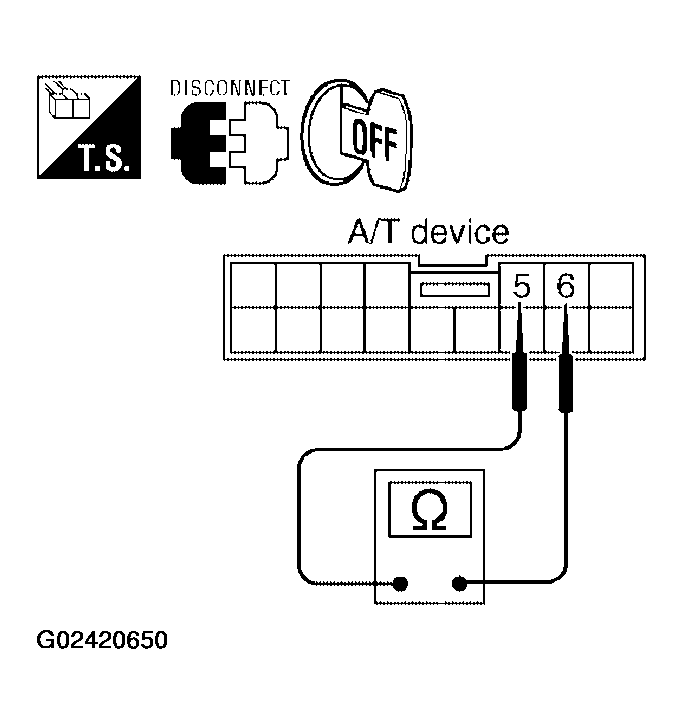

Fig 5: Checking Continuity Between Detent Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: GO TO 4.
• NG: Replace A/T device (detent switch).

1. Disconnect driver seat control unit.
2. Check continuity between driver seat control unit connector P2 terminal 21 and A/T device (detent switch) connector M34 terminal 6.

   21 (SB) - 6 (BR/Y): Continuity should exist.

3. Check continuity between driver seat control unit connector P2 terminal 21 and ground.

   21 (SB) - Ground: Continuity should not exist.

OK or NG

• OK: Replace driver seat control unit.
• NG: Repair or replace harness.

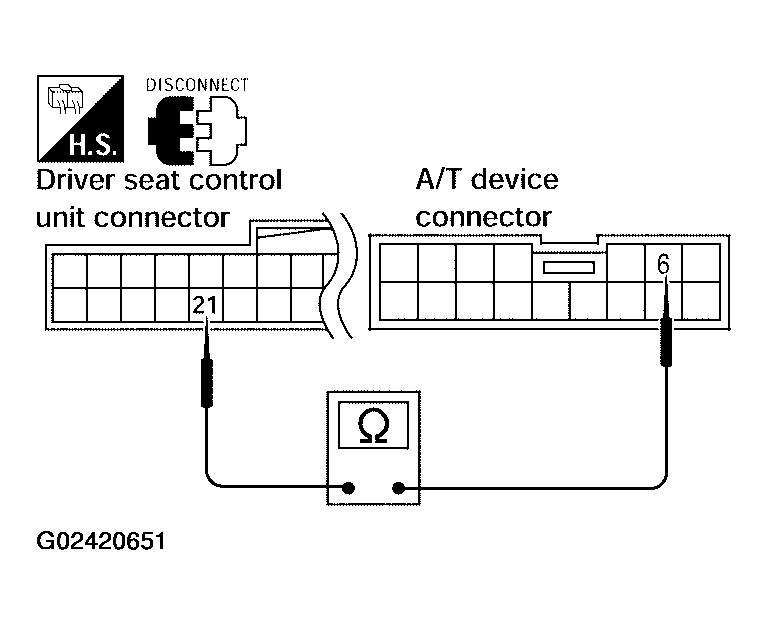

  Fig 6: Checking Continuity Between Driver Seat Control Unit Connector P2 Terminal 21 And A/T Device (Detent Switch) Connector M34 Terminal 6 And Ground

  Courtesy of NISSAN MOTOR CO., U.S.A.
