Sunroof Motor: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position sunroof assembly in the fully closed position.
  2. Remove roof console assembly. Refer to EXTERIOR & INTERIOR , "Headlining".
  3. Disconnect harness connector to remove sunroof motor.
  4. Remove motor mounting screws.
CAUTION:
  • When removing the sunroof motor, be sure that the sunroof is in the fully closed position.
  • Never run the removed motor as a single unit.

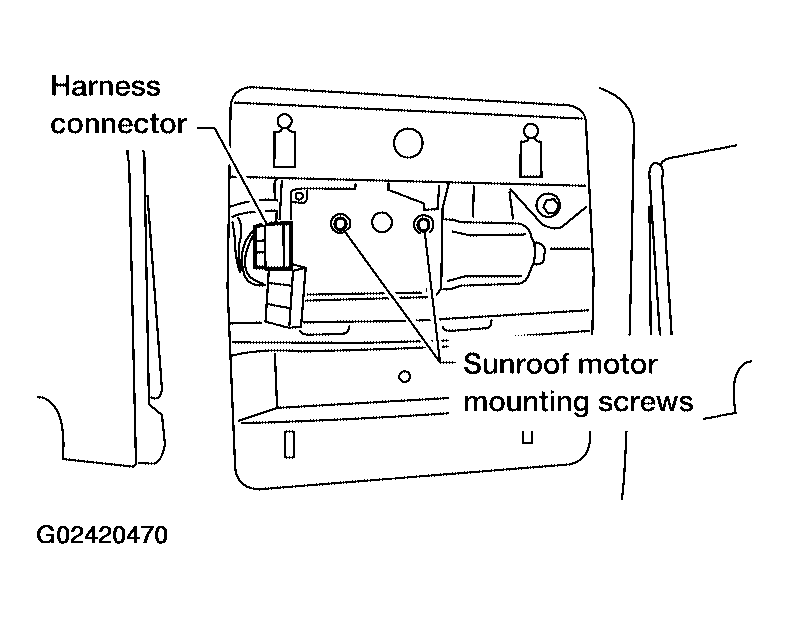

    Fig 1: Disconnecting Harness Connector
    G02420470Courtesy of NISSAN MOTOR CO., U.S.A.
