Glass Lid: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Open sunroof shade.
Ensure glass lid is closed.
Carefully pry away trim to access glass lid securing bolts.

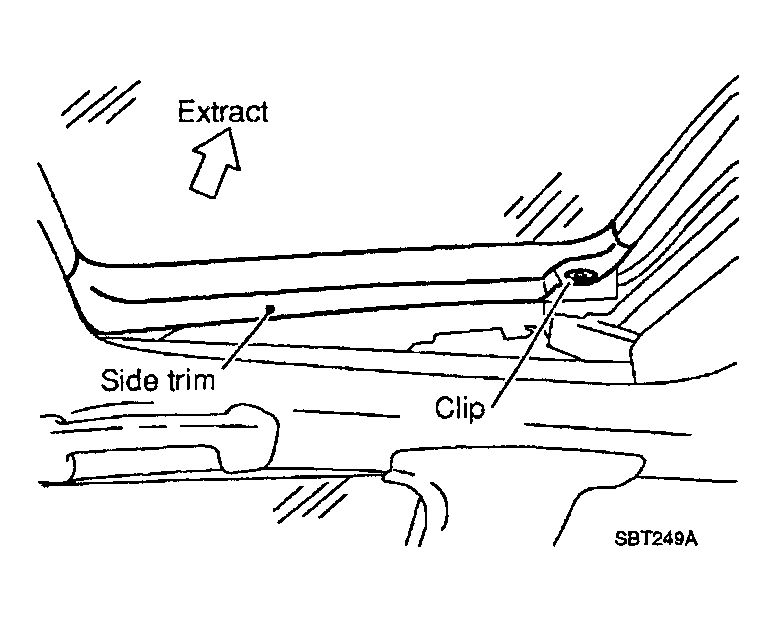

Fig 1: Identifying Side Trim And Clip

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove bolts securing glass lid assembly to sunroof assembly.
- Record the number of shims placed between the glass lid assembly and link and wire assembly.
