Drain Hoses

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

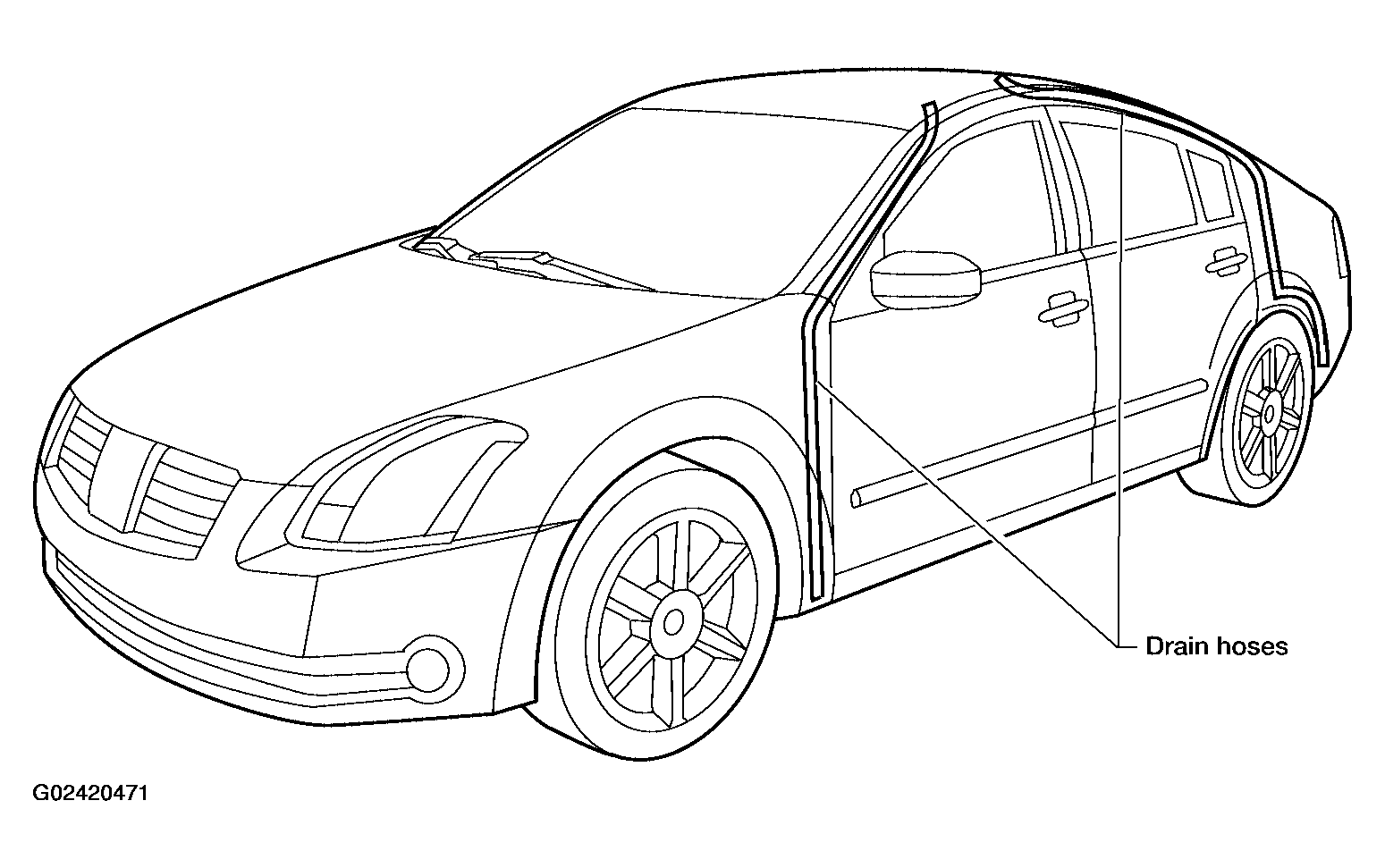

Fig 1: Locating Drain Hoses

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove headlining to access drain hose connections. Refer to EXTERIOR & INTERIOR , "Headlining".

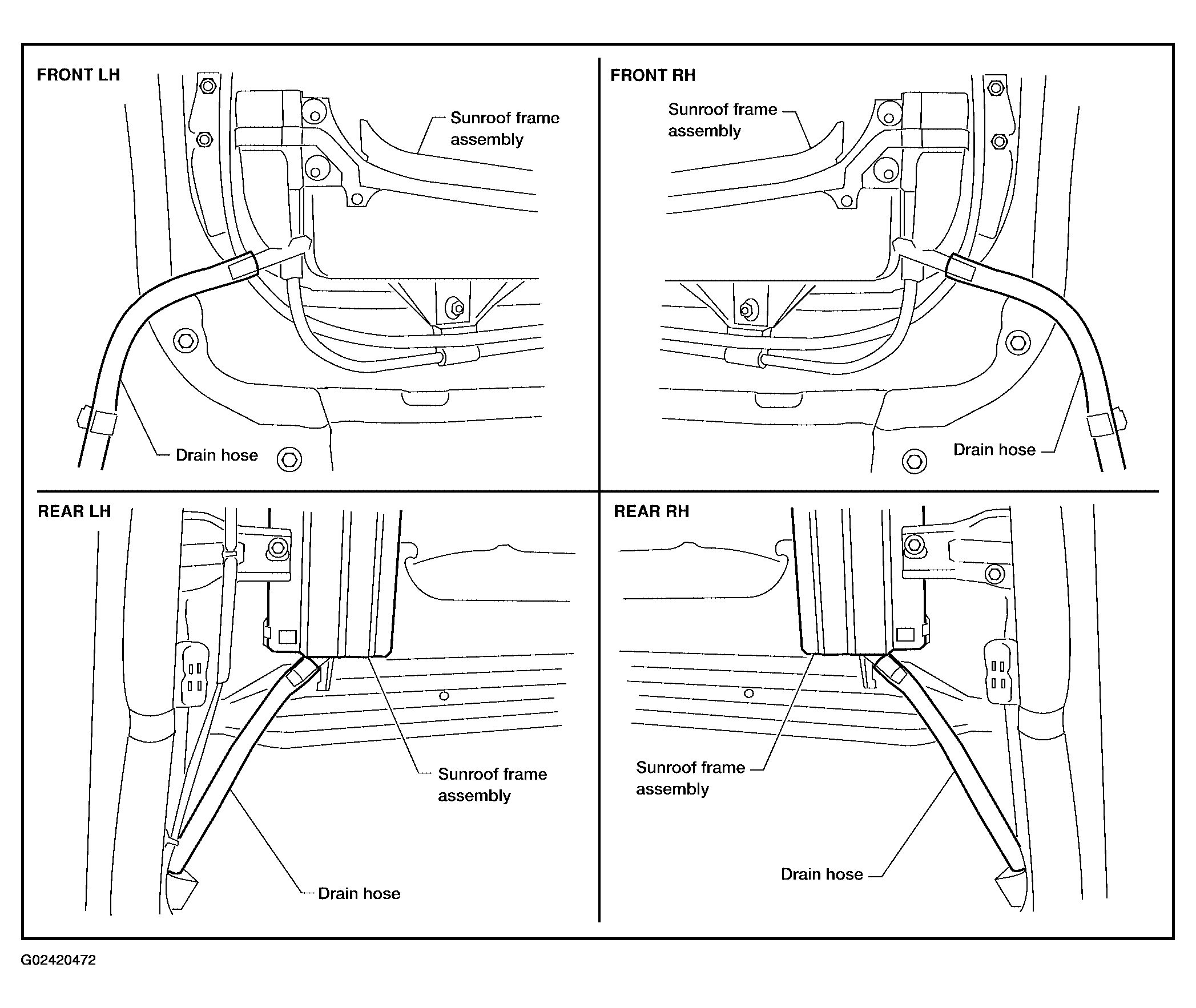

Fig 2: Identifying Drain Hoses
Courtesy of NISSAN MOTOR CO., U.S.A.
Check visually for proper connections, damage or deterioration.
If leakage occurs around trunk room, remove trunk side trim and check connecting area. Check for proper connection, damage or tear. Refer to EXTERIOR & INTERIOR "TRUNK ROOM TRIM & TRUNK LID FINISHER".
Remove drain hoses and check visually for any damage, cracks or deterioration.
Pour water into drain hoses and find damaged portion.

If any damaged portion is found at each step, replace the damaged part.

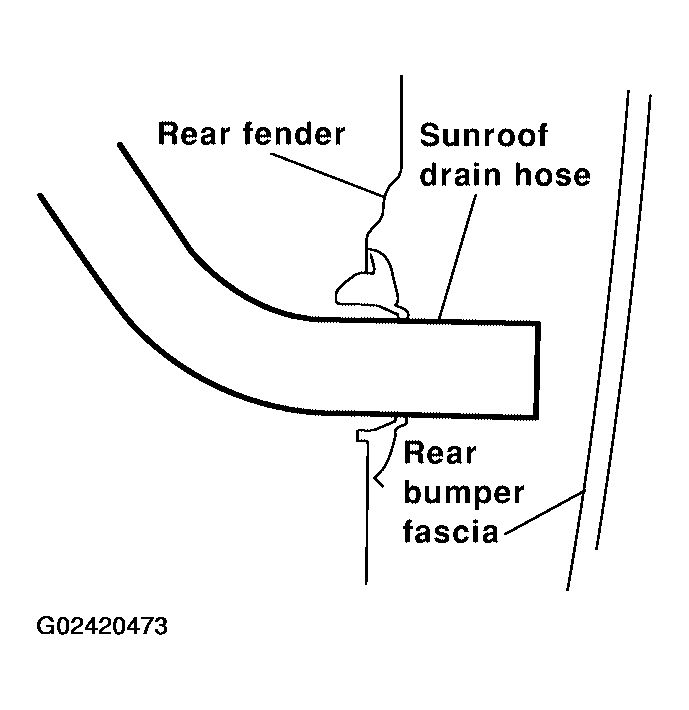

Fig 3: Checking visually for proper connections
Courtesy of NISSAN MOTOR CO., U.S.A.
