Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear of the headliner.
  2. Remove the rear pillar garnish.
  3. Remove the rear parcel shelf finisher.
  4. Remove the connectors and grounds for the rear window defogger and printed antenna.
  5. Remove rear pillar finishers.
WARNING: When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent glass splinters from entering your eyes or cutting your hands.
CAUTION:
  • When a windshield glass is to be reused, do not use a cutting knife or power cutting tool.
  • Be careful not to scratch the glass when removing.
  • Do not set or stand the glass on its edge. Small chips may develop into cracks.

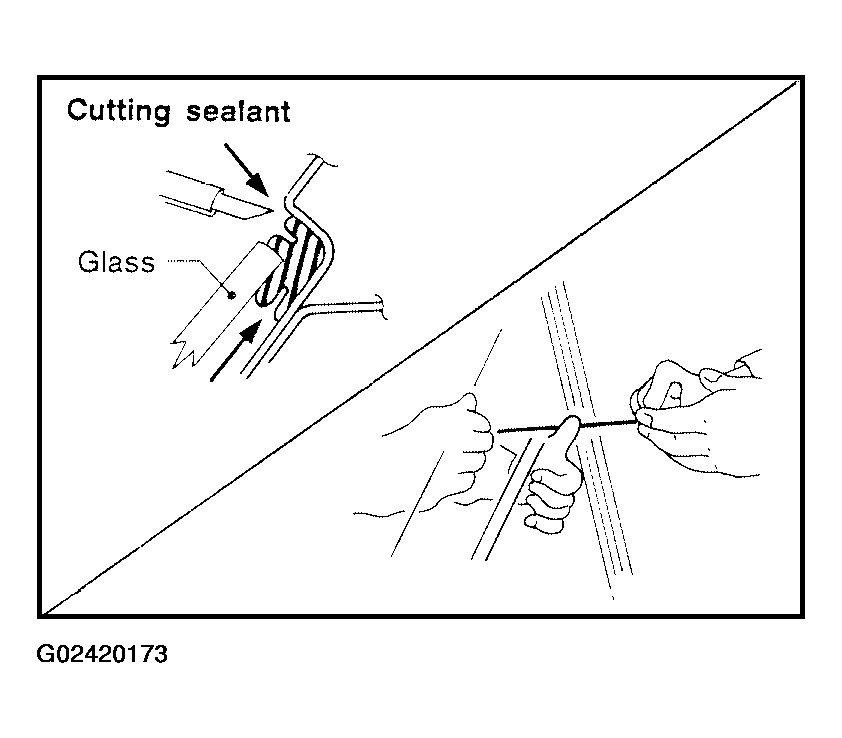

    Fig 1: Cutting Glass
    G02420173Courtesy of NISSAN MOTOR CO., U.S.A.
