Wiring Diagram - DEF -

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to PG-POWER, see POWER DISTRIBUTION .

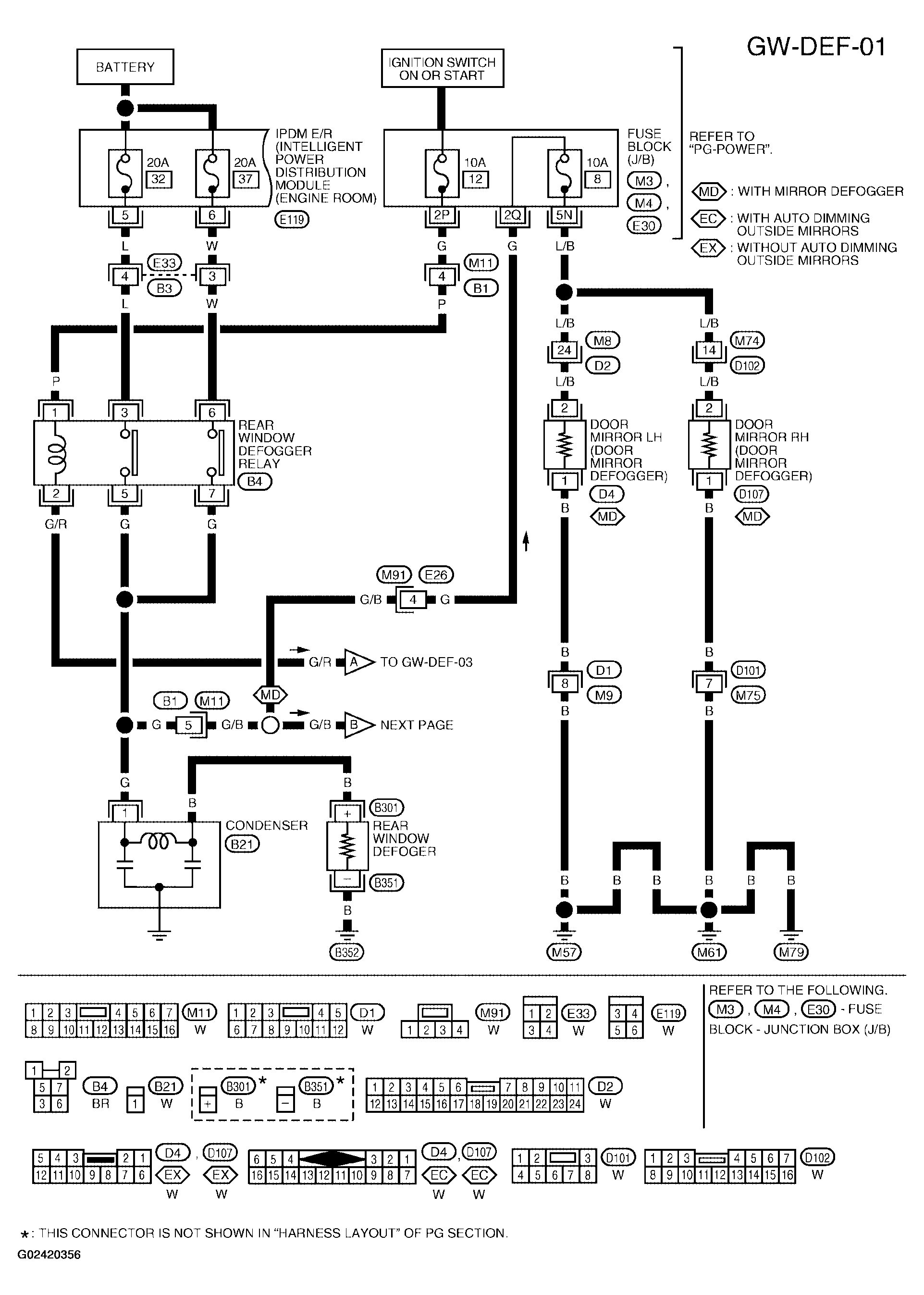

Fig 1: GW-DEF-01 - Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

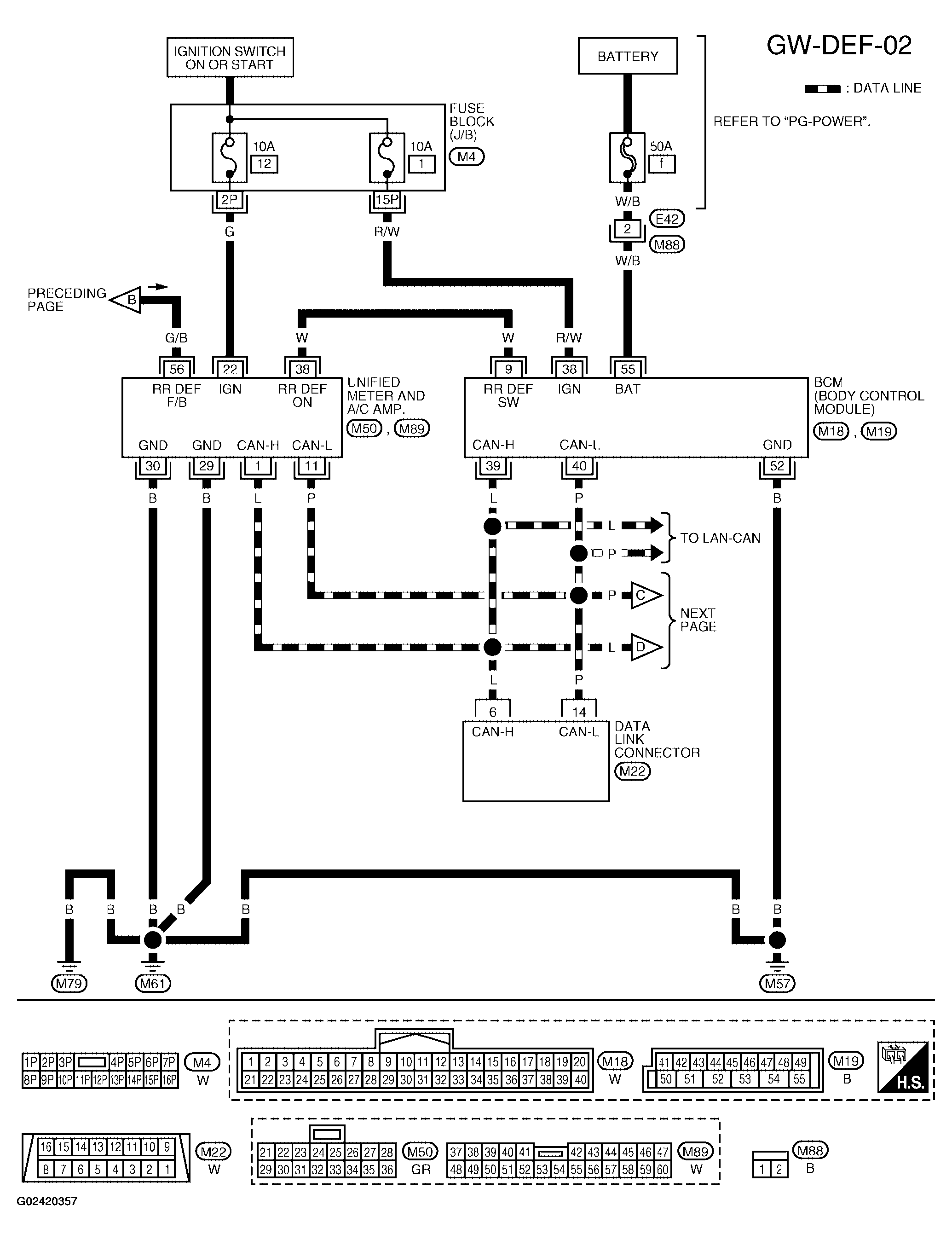

Fig 2: GW-DEF-02 - Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

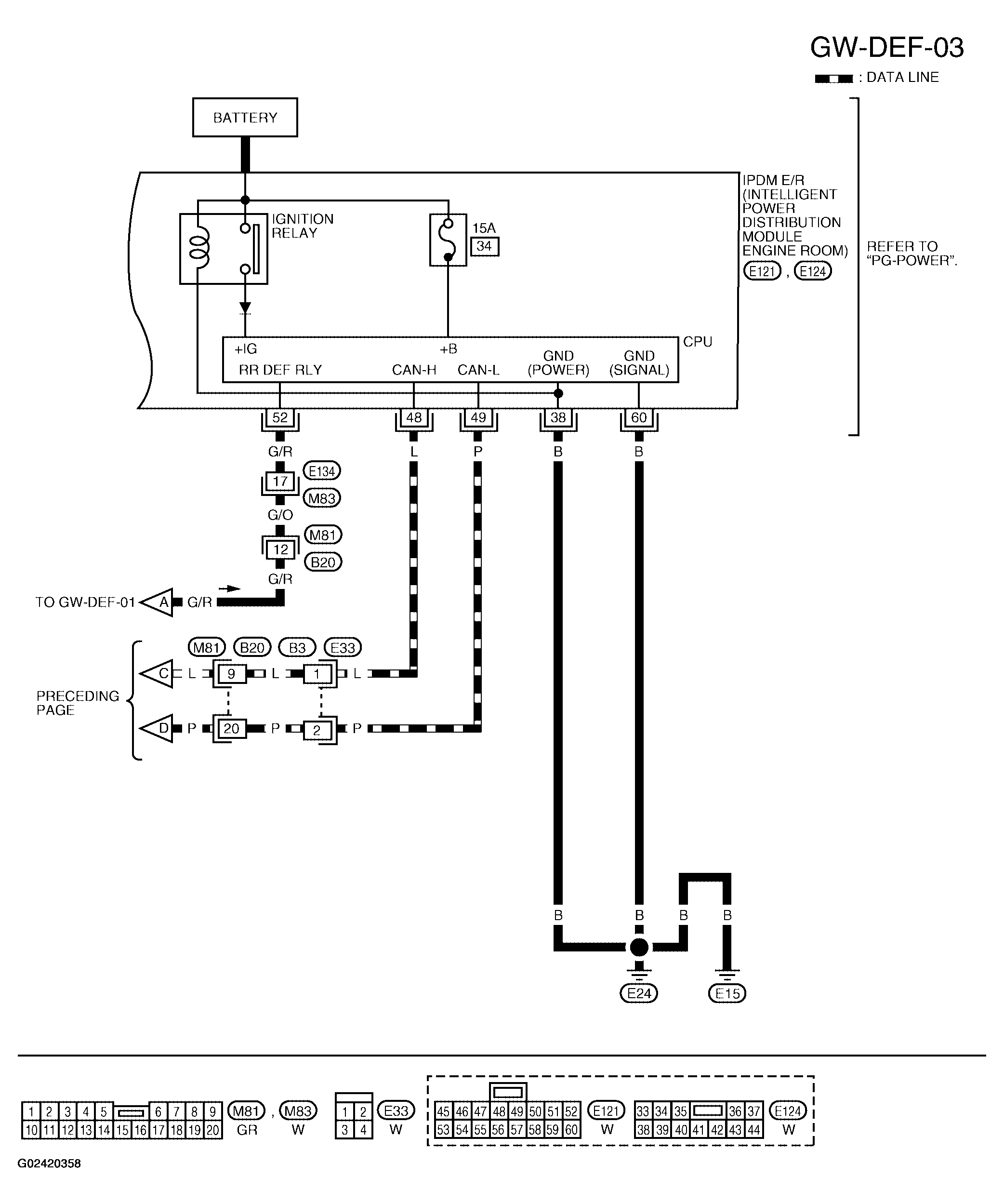

Fig 3: GW-DEF-03 - Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
