Component Parts and Harness Connector Location

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

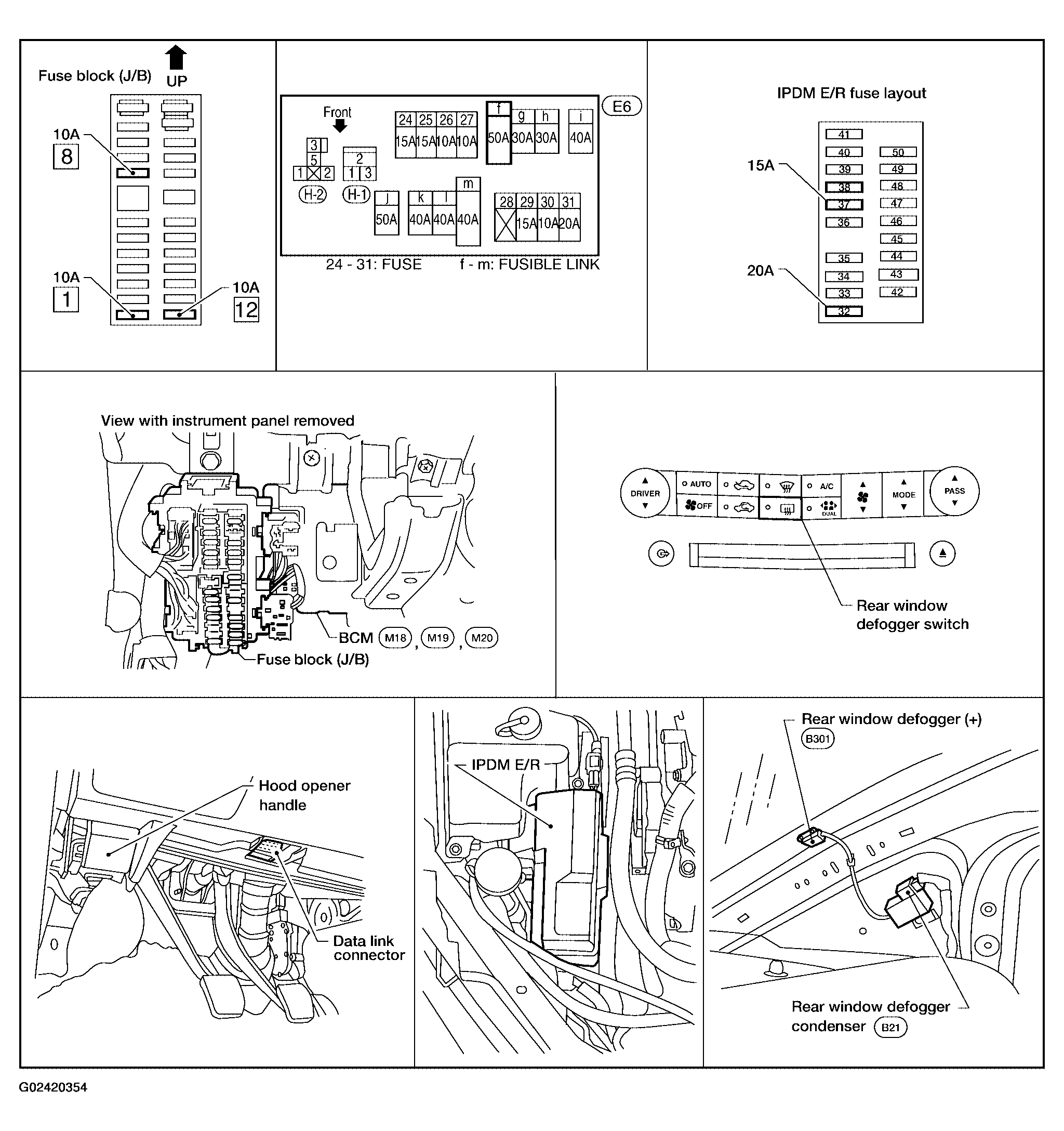

Fig 1: Identifying Rear Window Defogger Component Parts And Harness Connector Location
G02420354Courtesy of NISSAN MOTOR CO., U.S.A.
