Wiring Diagram - WINDOW - (With Front and Rear Power Window Anti-pinch System)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to PG-POWER, see POWER DISTRIBUTION .

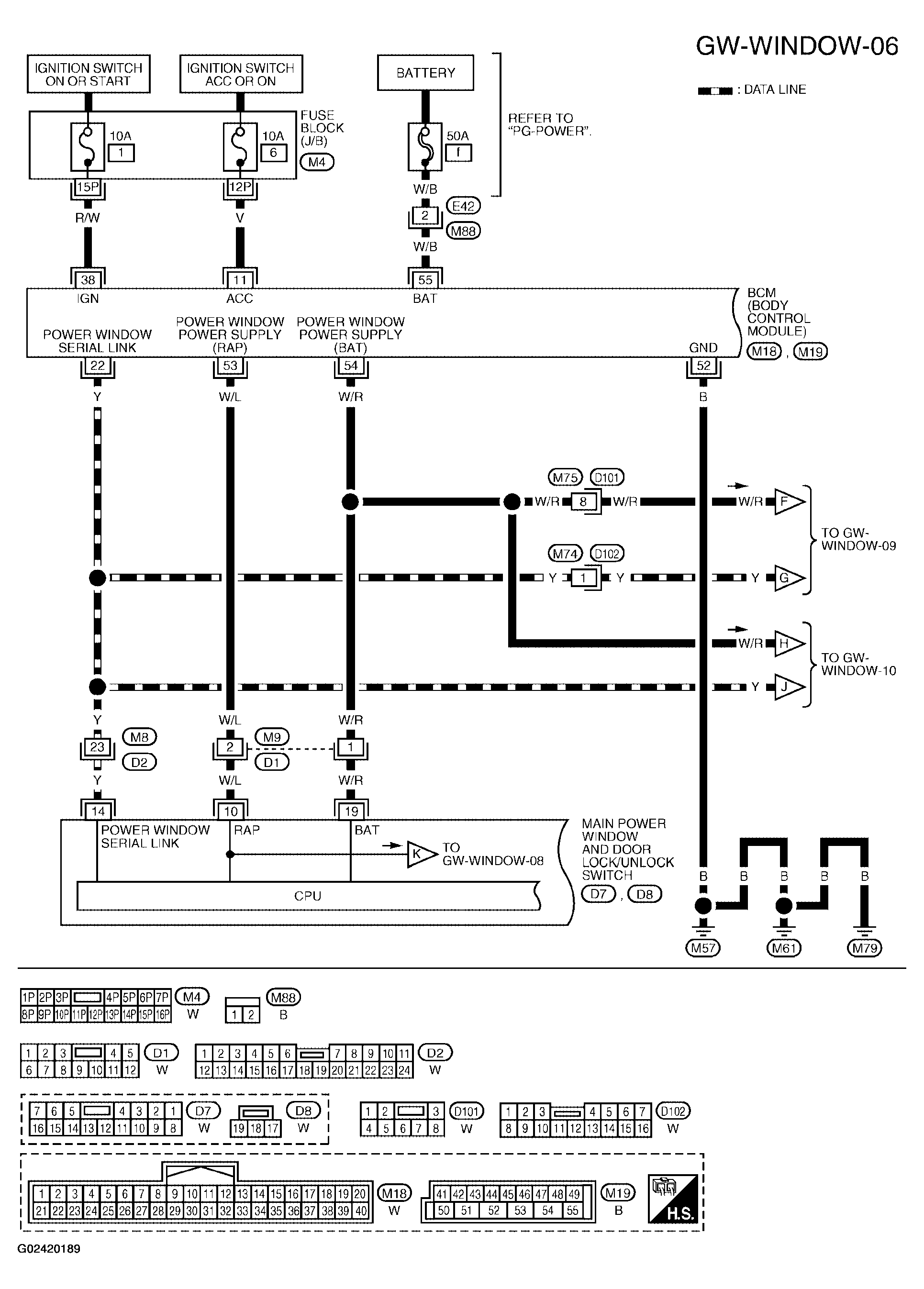

Fig 1: GW-WINDOW-06 - Wiring Diagram (With Front And Rear Power Window Anti-Pinch System) (1 Of 6)

G02420189

Courtesy of NISSAN MOTOR CO., U.S.A.

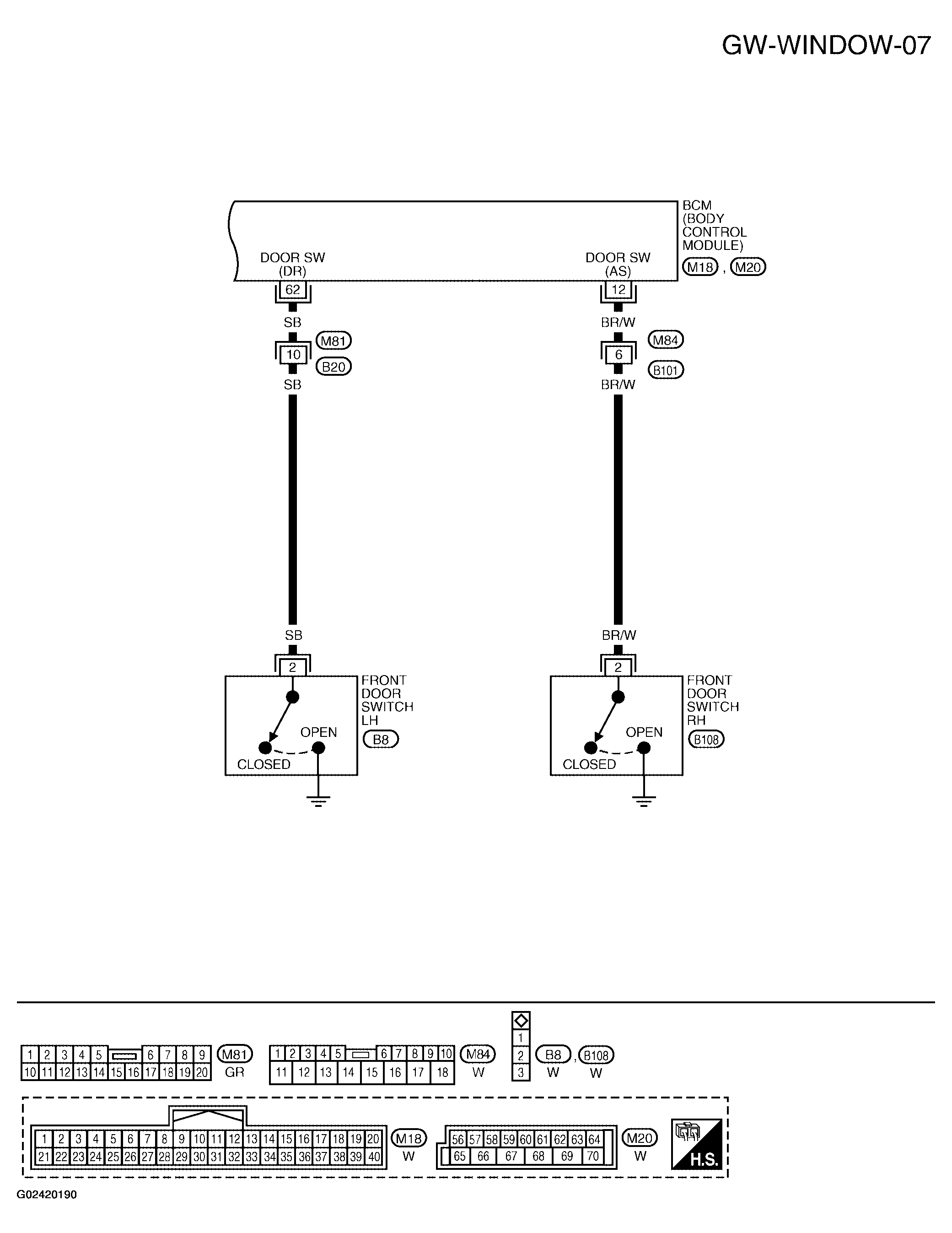

Fig 2: GW-WINDOW-07 - Wiring Diagram (With Front And Rear Power Window Anti-Pinch System) (2 Of 6)

G02420190

Courtesy of NISSAN MOTOR CO., U.S.A.

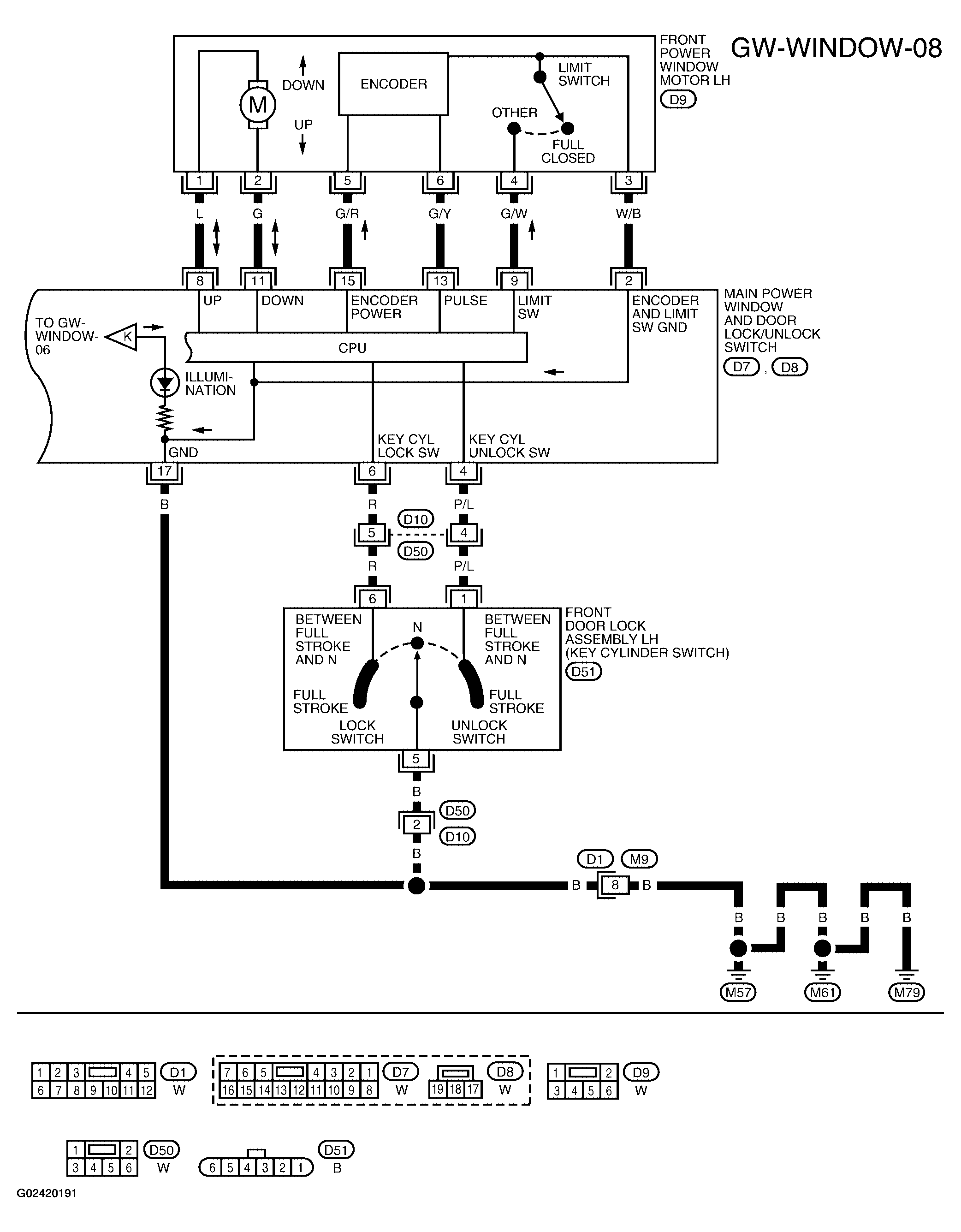

Fig 3: GW-WINDOW-08 - Wiring Diagram (With Front And Rear Power Window Anti-Pinch System) (3 Of 6)

G02420191

Courtesy of NISSAN MOTOR CO., U.S.A.

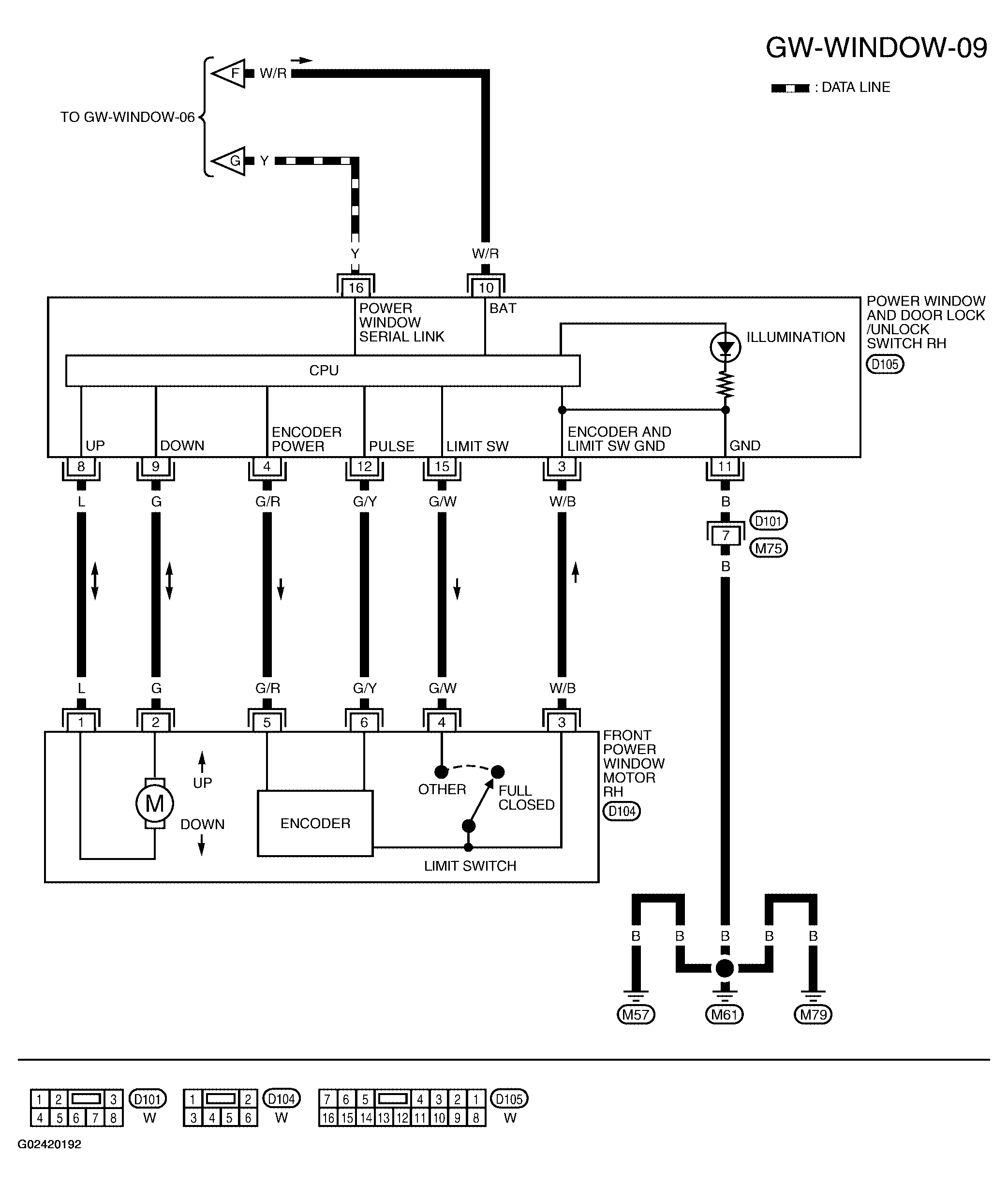

Fig 4: GW-WINDOW-09 - Wiring Diagram (With Front And Rear Power Window Anti-Pinch System) (4 Of 6)

G02420192

Courtesy of NISSAN MOTOR CO., U.S.A.

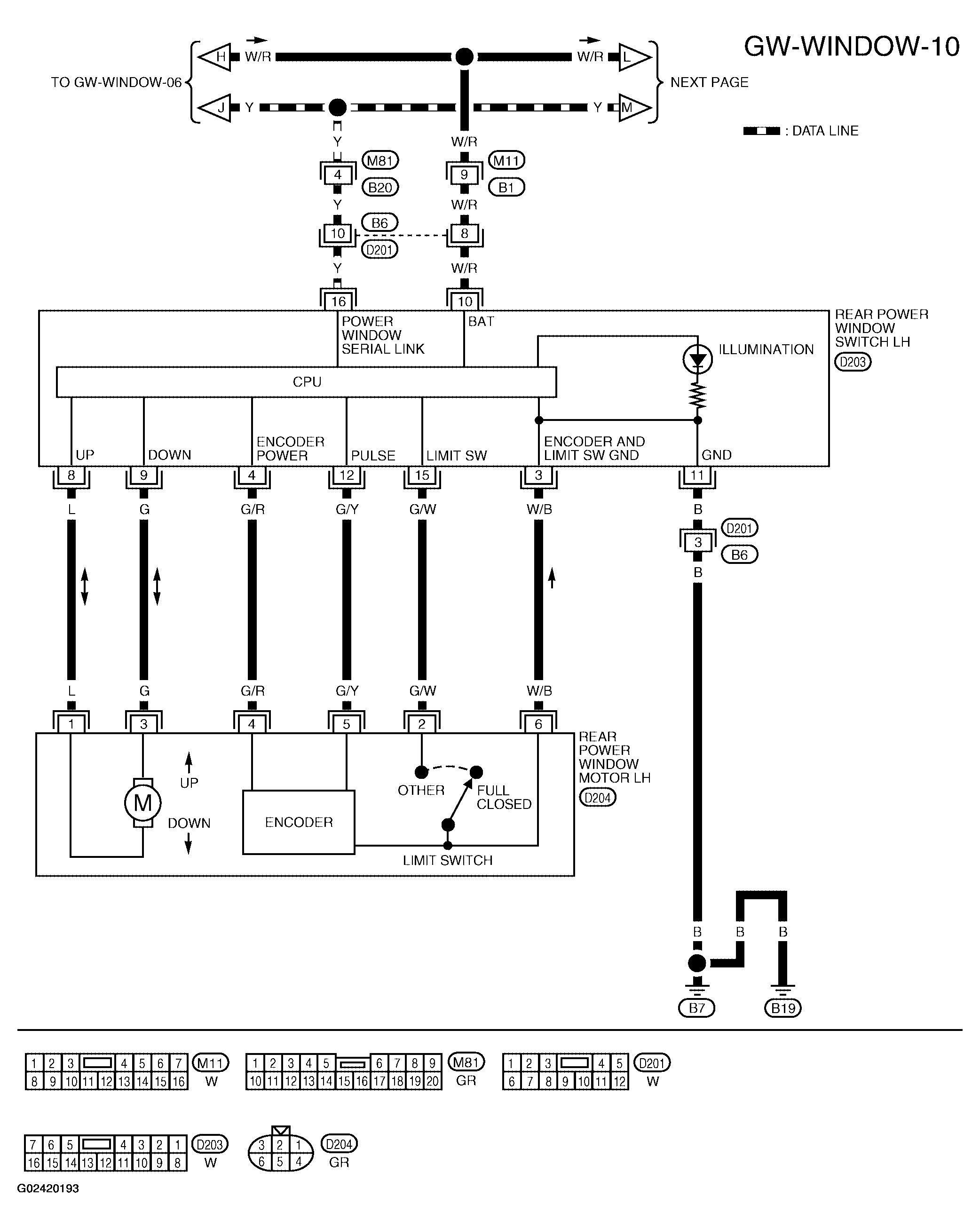

Fig 5: GW-WINDOW-09 - Wiring Diagram (With Front And Rear Power Window Anti-Pinch System) (5 Of 6)

G02420193

Courtesy of NISSAN MOTOR CO., U.S.A.

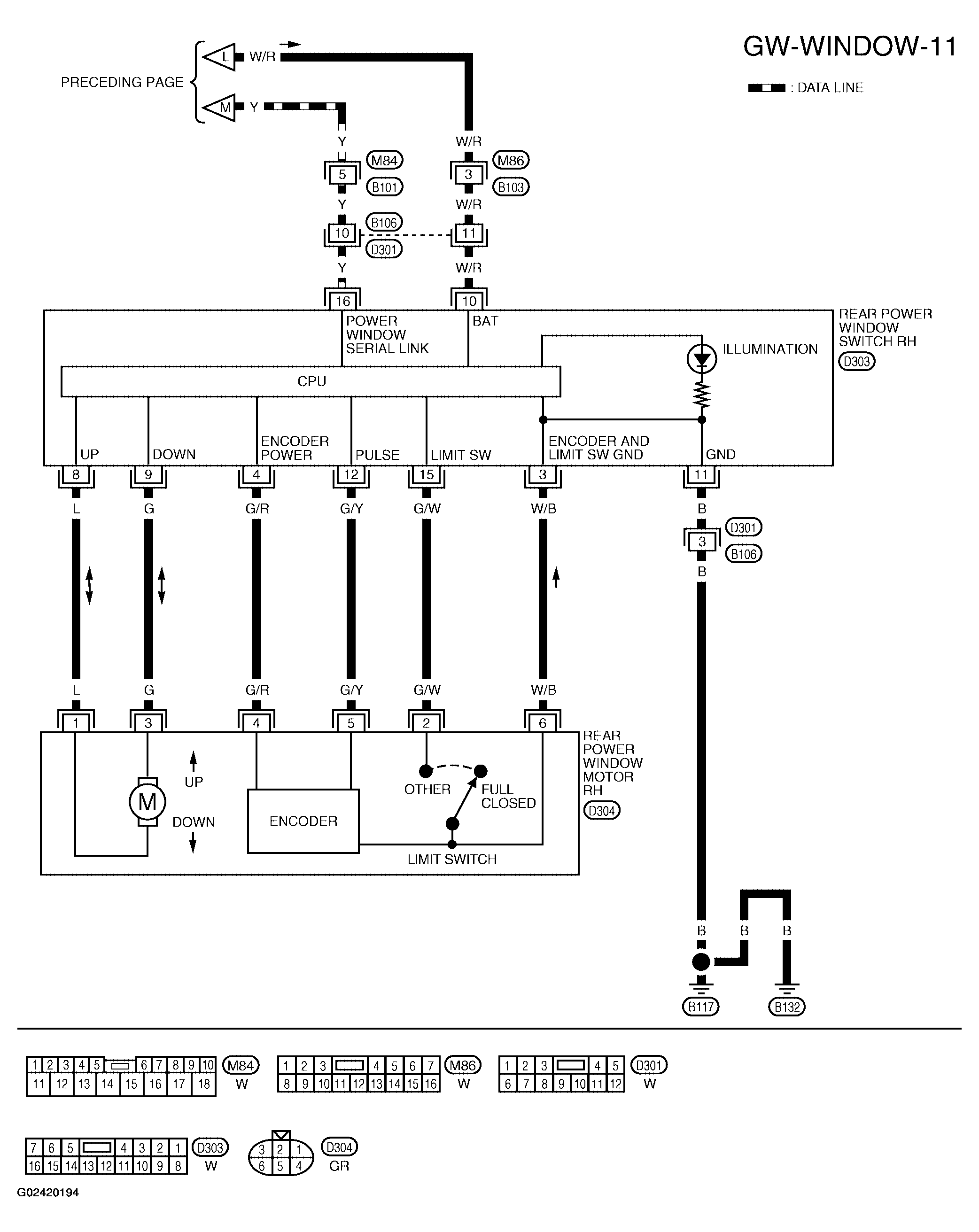

Fig 6: GW-WINDOW-10 - Wiring Diagram (With Front And Rear Power Window Anti-Pinch System) (6 Of 6)

G02420194

Courtesy of NISSAN MOTOR CO., U.S.A.
