Wiring Diagram - WINDOW - (With Front Left and Right Power Window Anti-pinch System)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to PG-POWER, see POWER DISTRIBUTION .

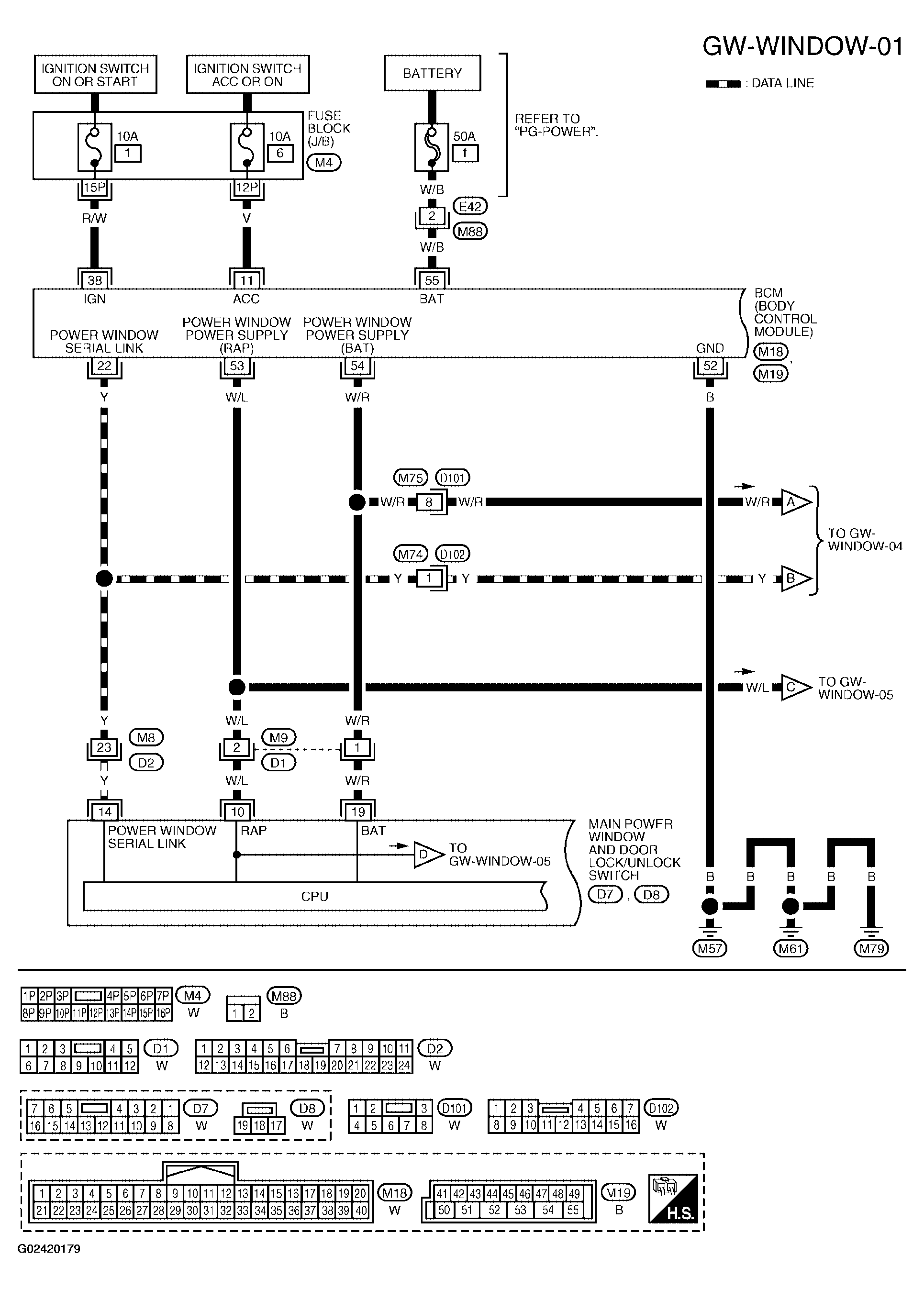

Fig 1: GW-WINDOW-01 - Wiring Diagram (With Front Left And Right Power Window Anti-Pinch System) (1 Of 5)

G02420179

Courtesy of NISSAN MOTOR CO., U.S.A.

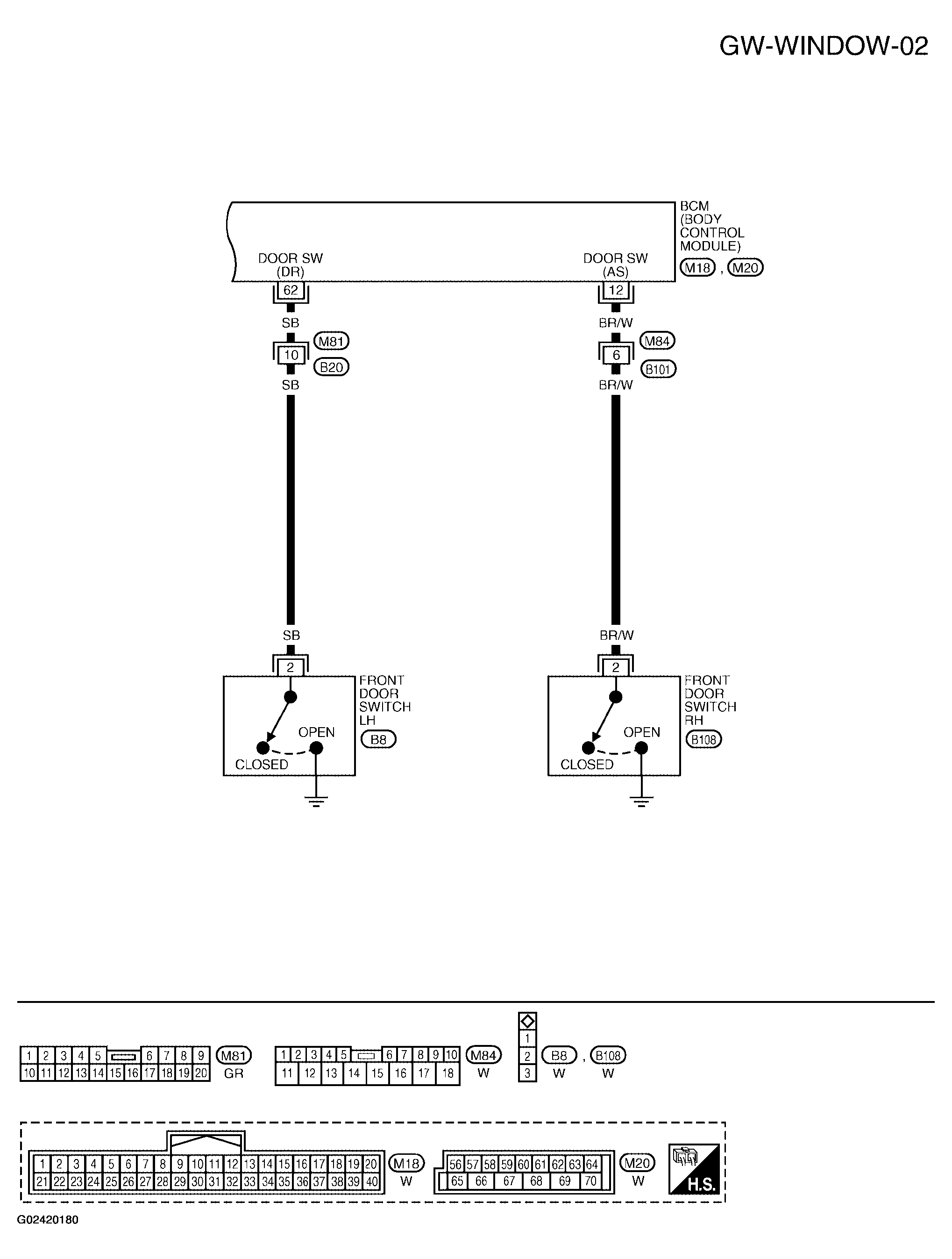

Fig 2: GW-WINDOW-02 - Wiring Diagram (With Front Left And Right Power Window Anti-Pinch System) (2 Of 5)

G02420180

Courtesy of NISSAN MOTOR CO., U.S.A.

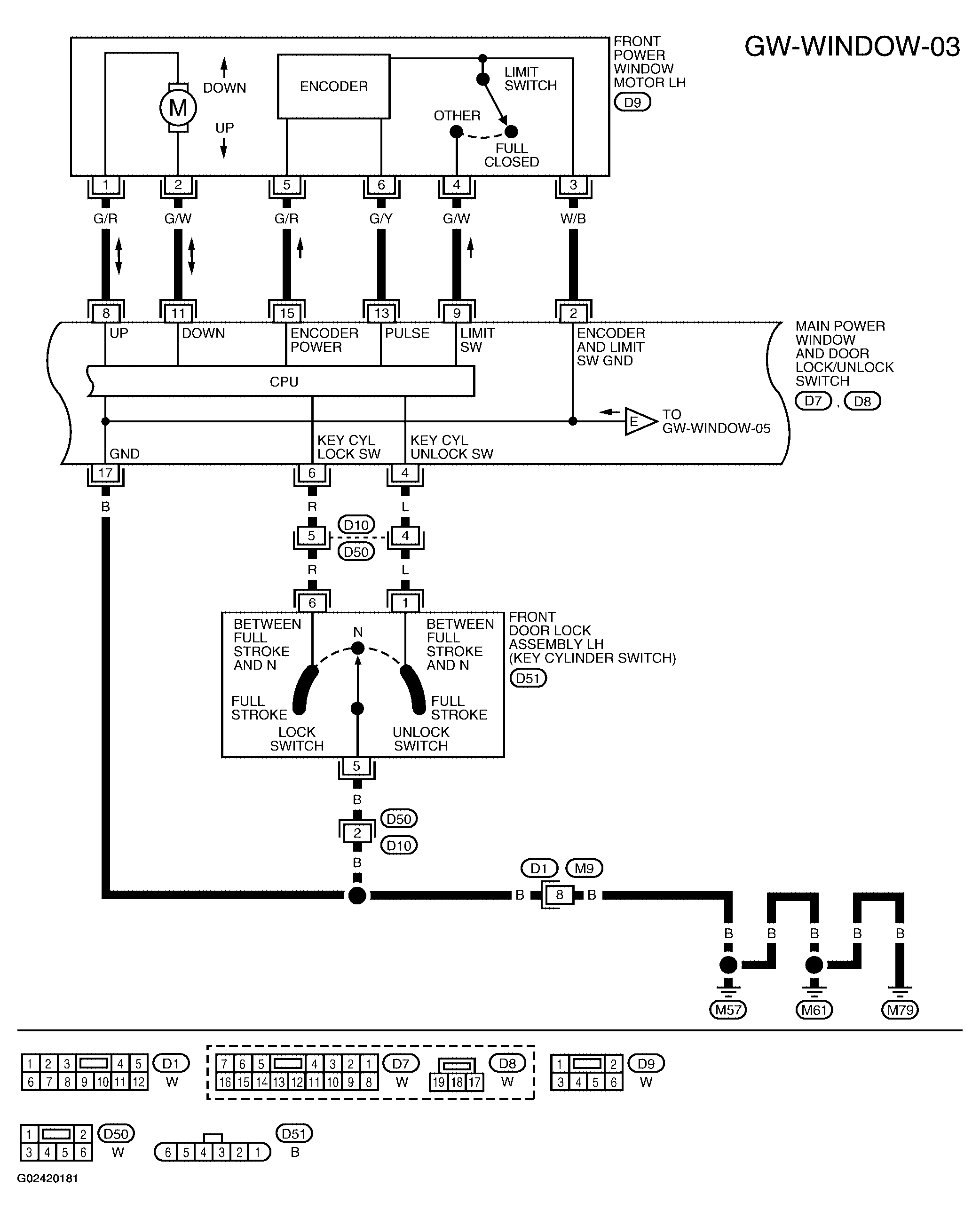

Fig 3: GW-WINDOW-03 - Wiring Diagram (With Front Left And Right Power Window Anti-Pinch System) (3 Of 5)

G02420181

Courtesy of NISSAN MOTOR CO., U.S.A.

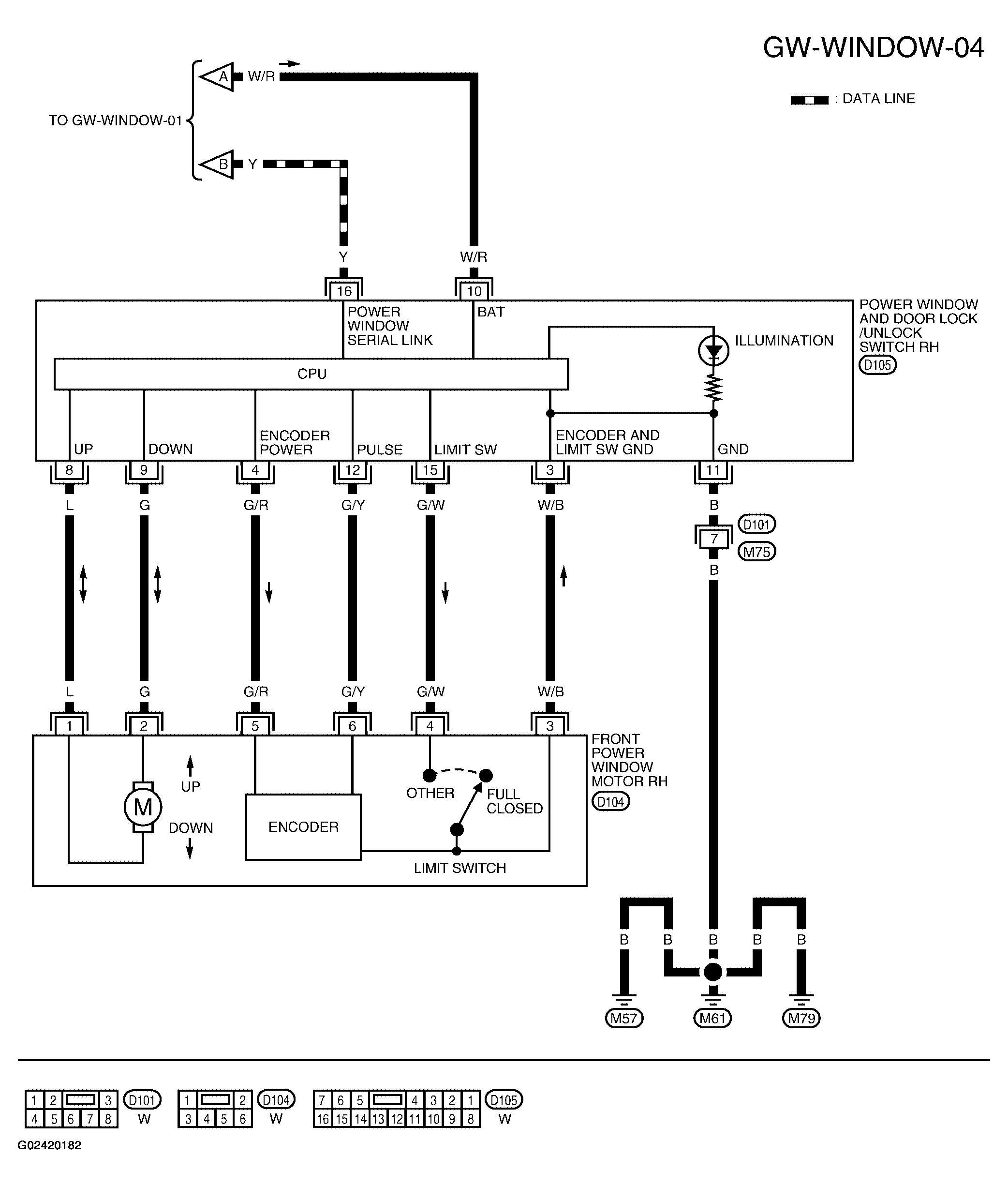

Fig 4: GW-WINDOW-04 - Wiring Diagram (With Front Left And Right Power Window Anti-Pinch System) (4 Of 5)

G02420182

Courtesy of NISSAN MOTOR CO., U.S.A.

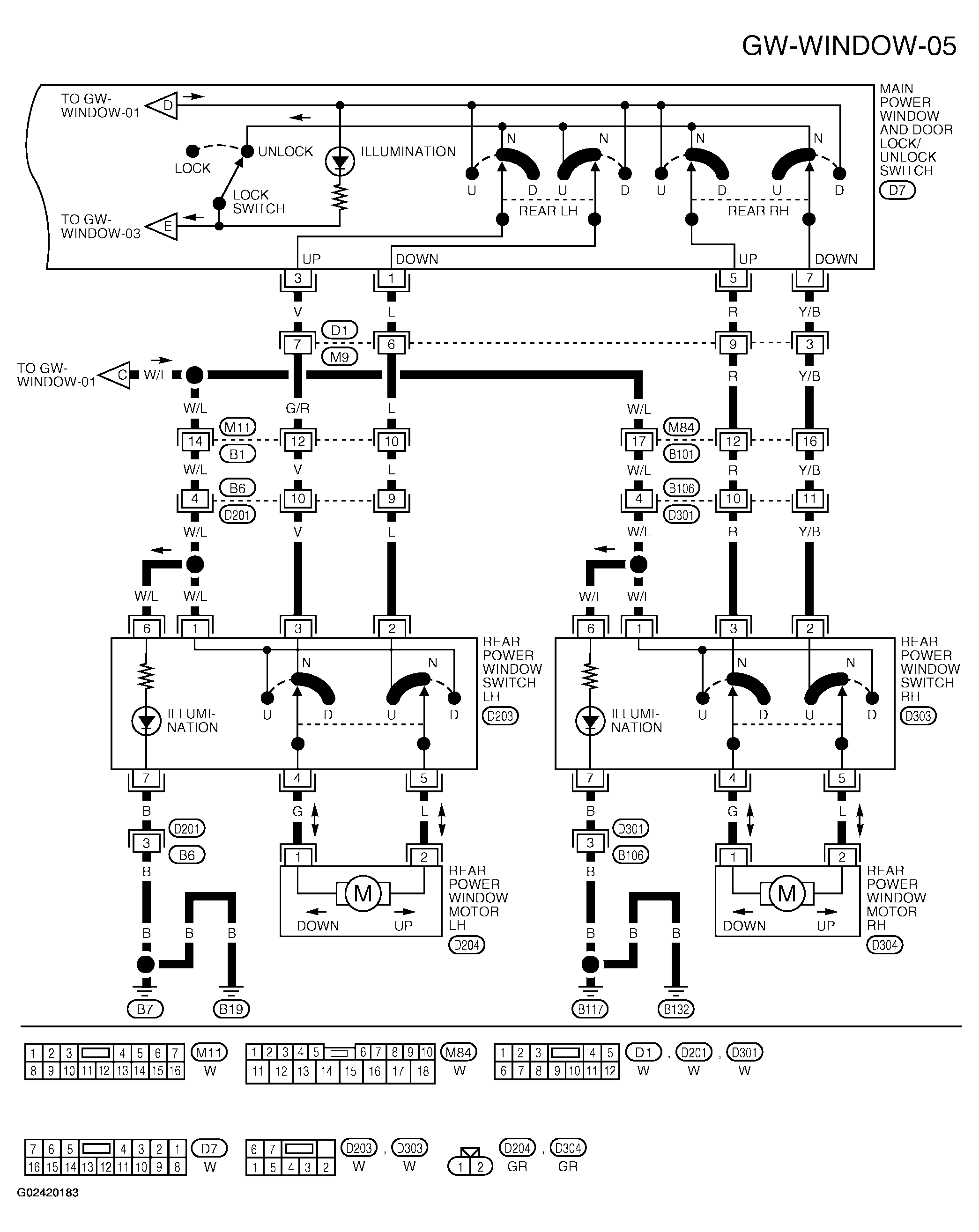

Fig 5: GW-WINDOW-05 - Wiring Diagram (With Front Left And Right Power Window Anti-Pinch System) (5 Of 5)

G02420183

Courtesy of NISSAN MOTOR CO., U.S.A.
