Terminal and Reference Value for Power Window and Door Lock/Unlock Switch RH and Rear Power Window Switch LH and RH (With Front and Rear Window Anti-pinch System)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

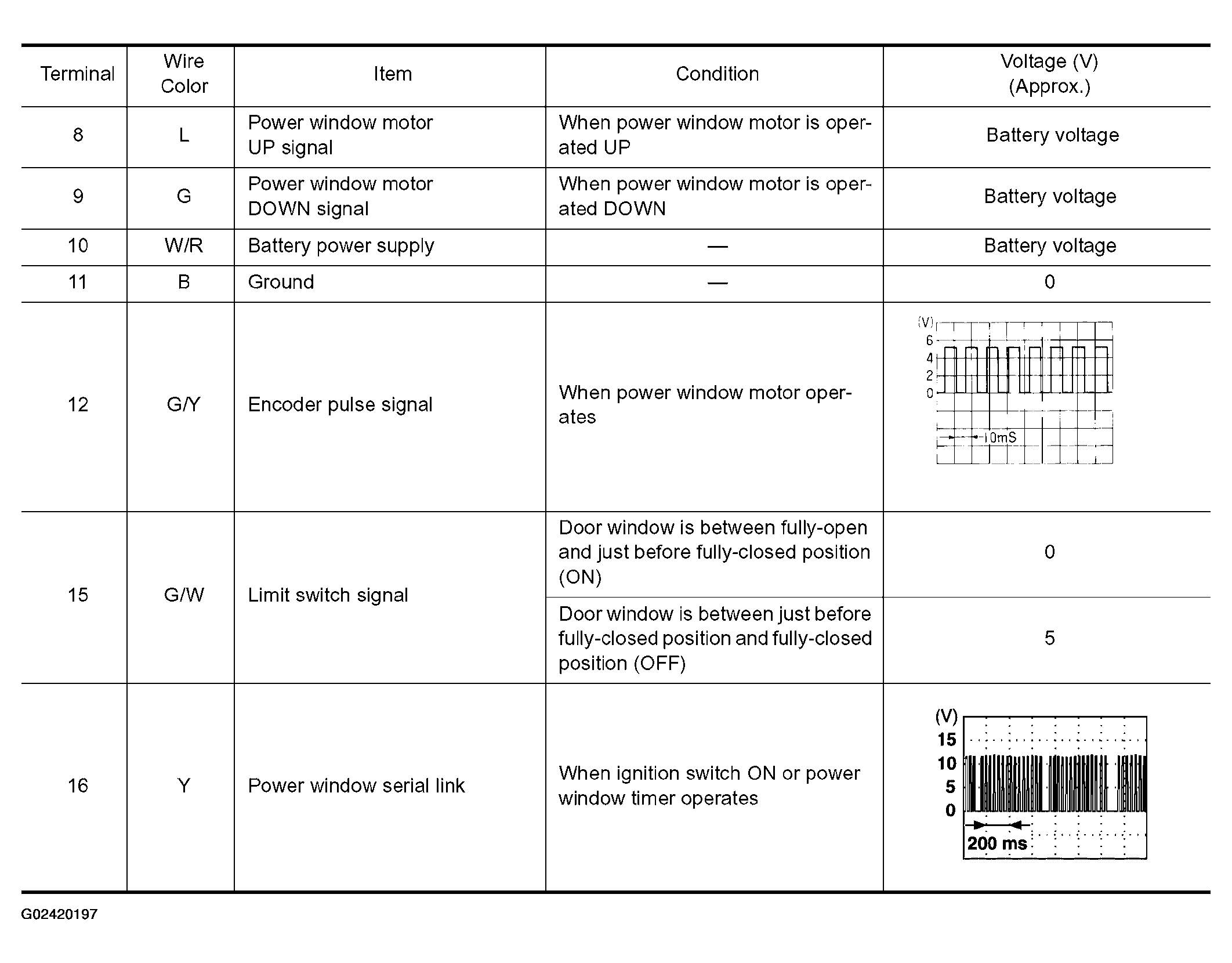

Fig 1: Power Window And Door Lock/Unlock Switch RH And Rear Power Window Switch LH And RH Terminal And Reference Value Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

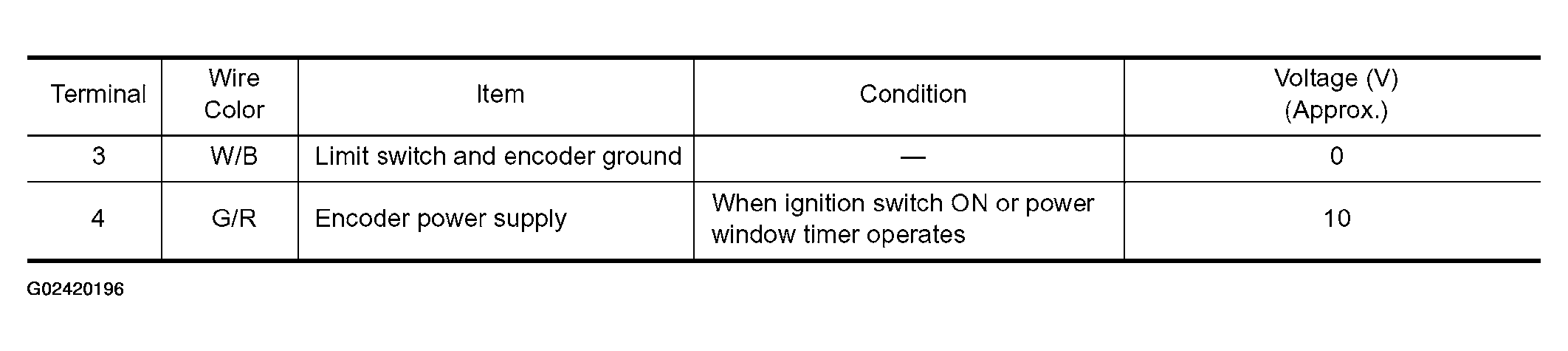

Fig 2: Power Window And Door Lock/Unlock Switch RH And Rear Power Window Switch LH And RH Terminal And Reference Value Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
