Terminal and Reference Value for Main Power Window and Door Lock/Unlock Switch (With Front and Rear Power Window Anti-pinch System)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

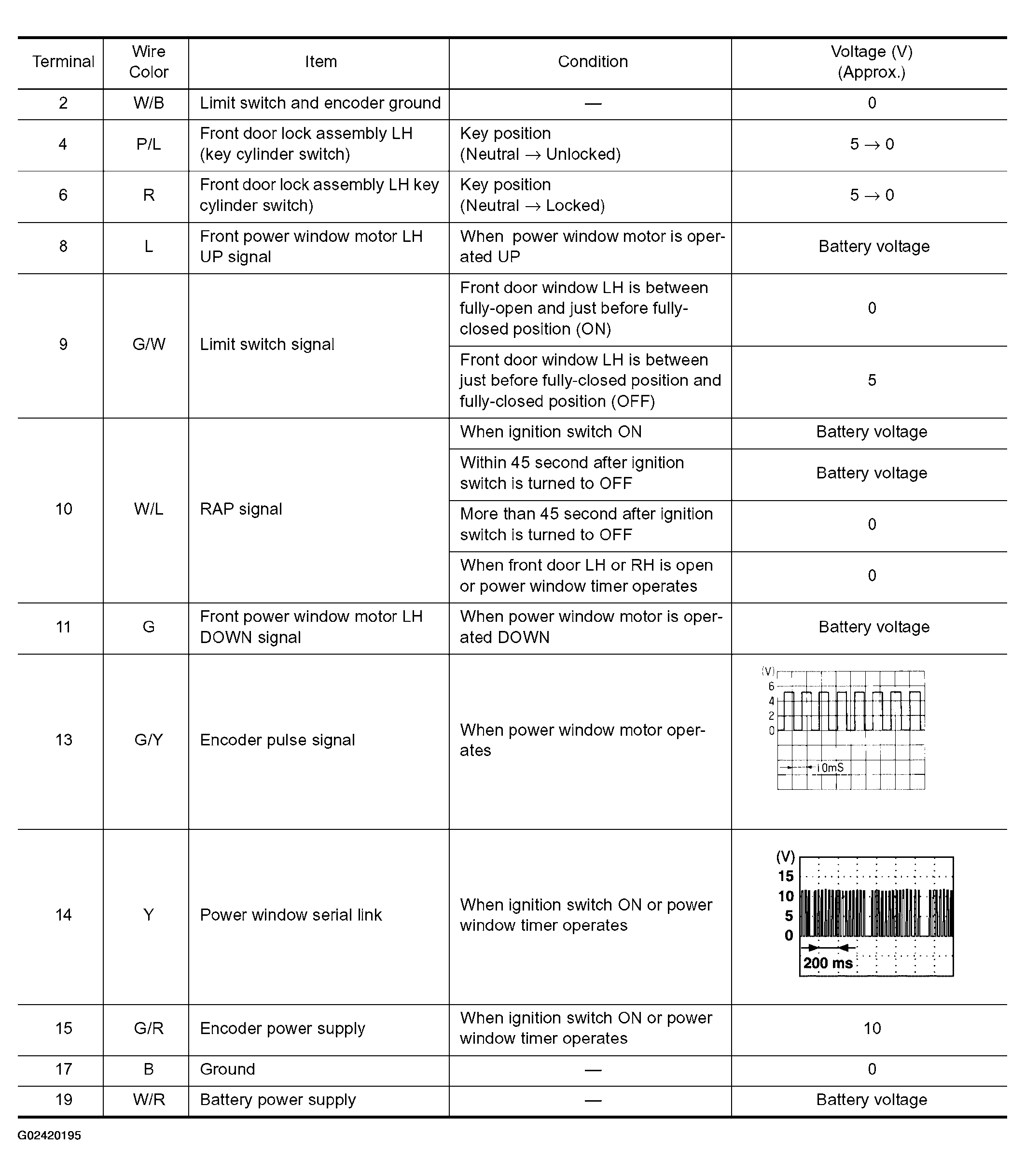

Fig 1: Main Power Window And Door Lock/Unlock Switch Terminal And Reference Value (With Front And Rear Power Window Anti-Pinch System)
G02420195Courtesy of NISSAN MOTOR CO., U.S.A.
