Terminal and Reference Value for Main Power Window and Door Lock/Unlock Switch (With Front Left and Right Only Power Window Anti-pinch System)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

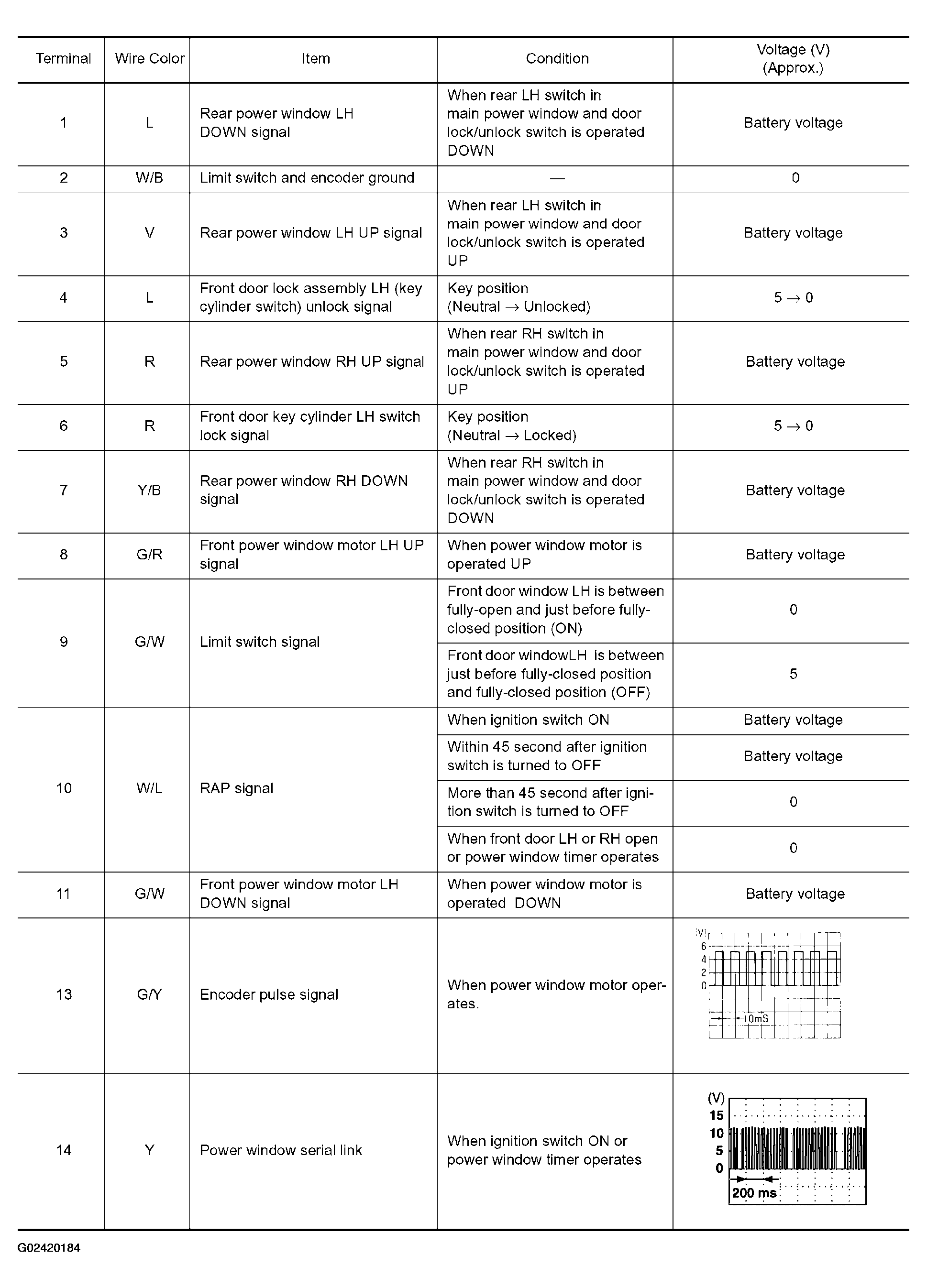

Fig 1: Main Power Window And Door Lock/Unlock Switch Terminal And Reference Value Chart (With Front Left And Right Only Power Window Anti-Pinch System) (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

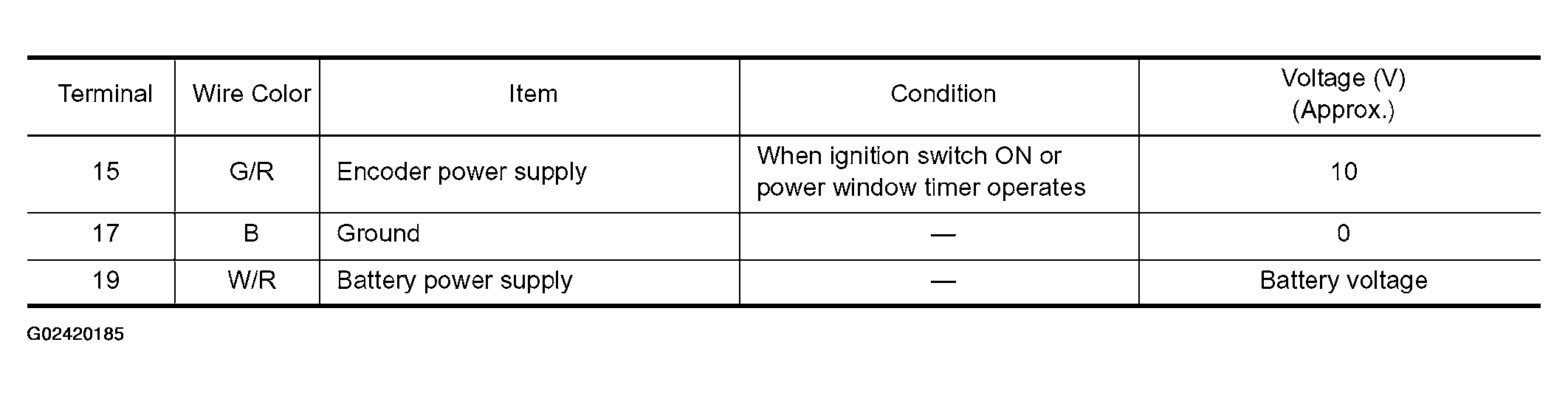

Fig 2: Main Power Window And Door Lock/Unlock Switch Terminal And Reference Value Chart (With Front Left And Right Only Power Window Anti-Pinch System) (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
