Rear Power Window Motor RH Circuit Check (With Front and Rear Power Window Anti-pinch System)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK REAR POWER WINDOW SWITCH RH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between rear power window switch RH connector D303 terminal 8, 9 and ground.

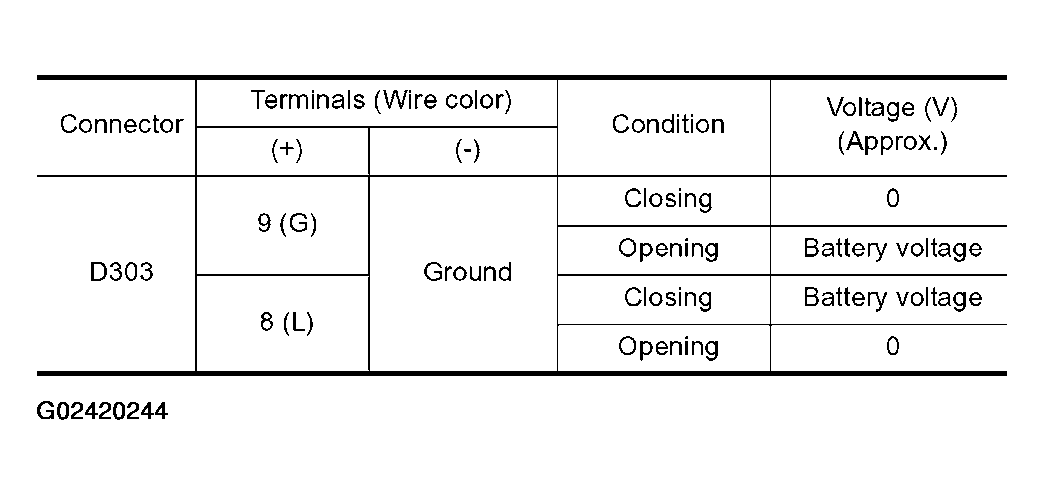

  Fig 1: Terminals Voltage Reference Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

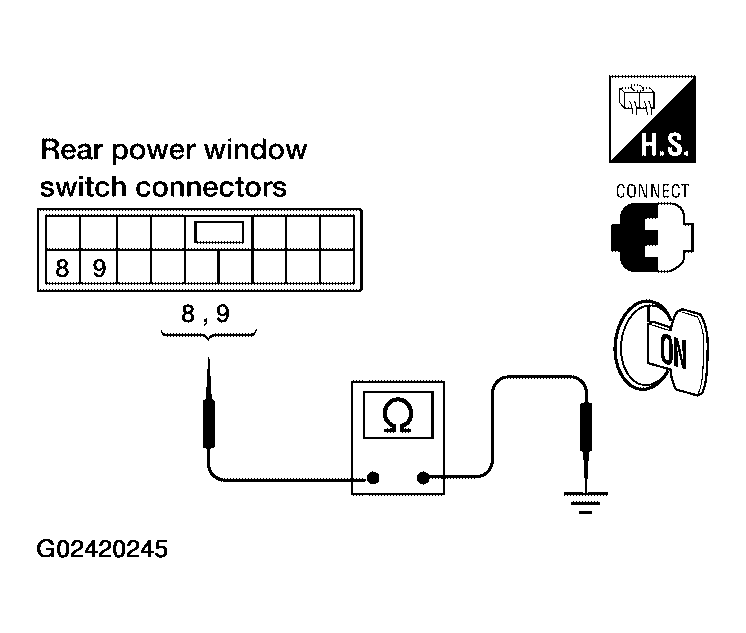

  Fig 2: Checking Voltage Between Rear Power Window Switch RH Connector D303 Terminal 8, 9 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: GO TO 2.
- NG: Replace rear power window switch RH.
CHECK REAR POWER WINDOW MOTOR RH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear power window switch RH and rear power window motor RH.
3. Check continuity between rear power window switch RH connector D303 terminal 8, 9 and rear power window motor RH connector D304 terminal 1, 3.
  9 (G) - 3 (G): Continuity should exist.

  8 (L) - 1 (L): Continuity should exist.
OK or NG
- OK: Replace rear power window motor RH. Refer to "REAR DOOR GLASS AND REGULATOR ".
- NG: Repair or replace harness.

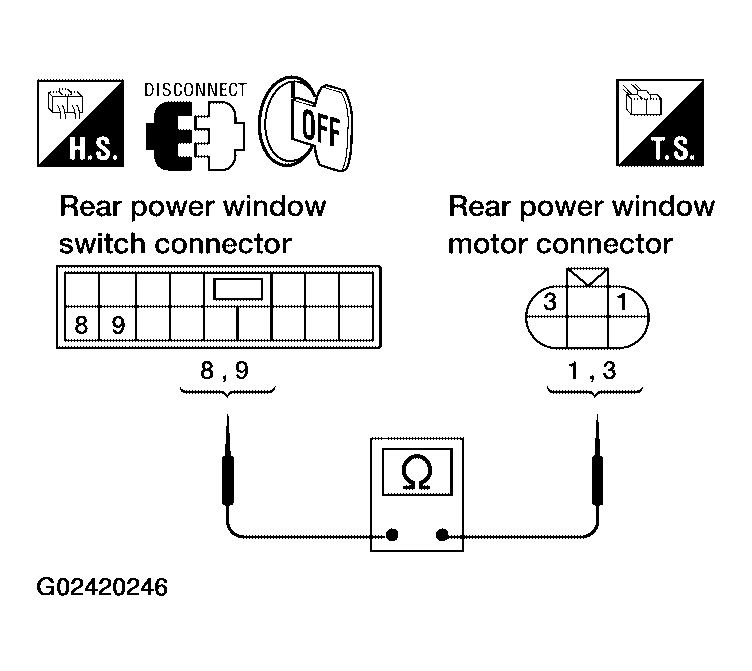

  Fig 3: Checking Continuity Between Rear Power Window Switch RH Connector D303 Terminal 8, 9 And Rear Power Window Motor RH Connector D304 Terminal 1, 3
  Courtesy of NISSAN MOTOR CO., U.S.A.
