Rear Power Window Motor LH Circuit Check (With Front and Rear Power Window Anti-pinch System)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK REAR POWER WINDOW SWITCH LH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between rear power window switch LH connector D203 terminal 8, 9 and ground.

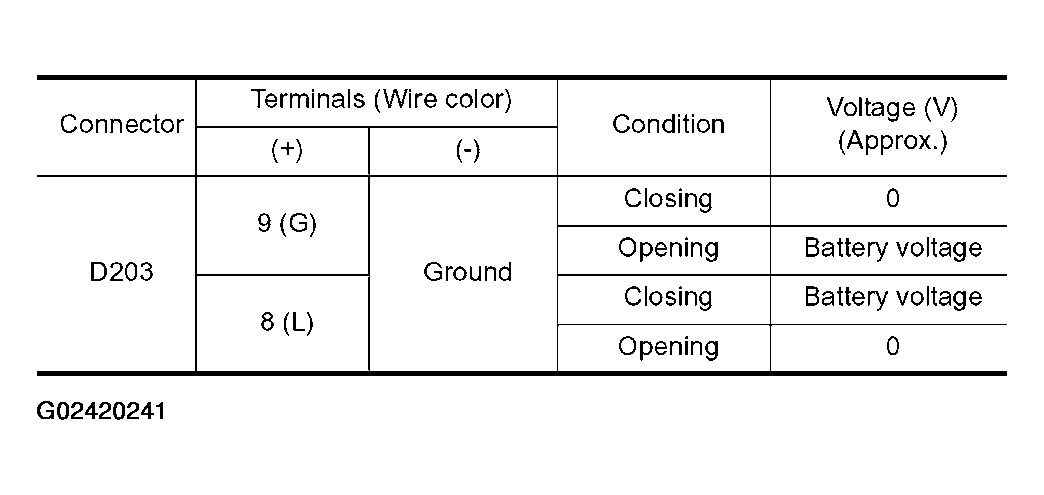

  Fig 1: Terminals Voltage Reference Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 2: Checking Voltage Between Rear Power Window Switch LH Connector D203 Terminal 8, 9 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: GO TO 2.
- NG: Replace rear power window switch LH.
CHECK REAR POWER WINDOW MOTOR LH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear power window switch LH and rear power window motor LH.
3. Check continuity between rear power window switch LH connector D203 terminal 8, 9 and rear power window motor LH connector D204 terminal 1, 3.
  9 (G) - 3 (G): Continuity should exist.

  8 (L) - 1 (L): Continuity should exist.
OK or NG
- OK: Replace rear power window motor LH. Refer to "REAR DOOR GLASS AND REGULATOR ".
- NG: Repair or replace harness.

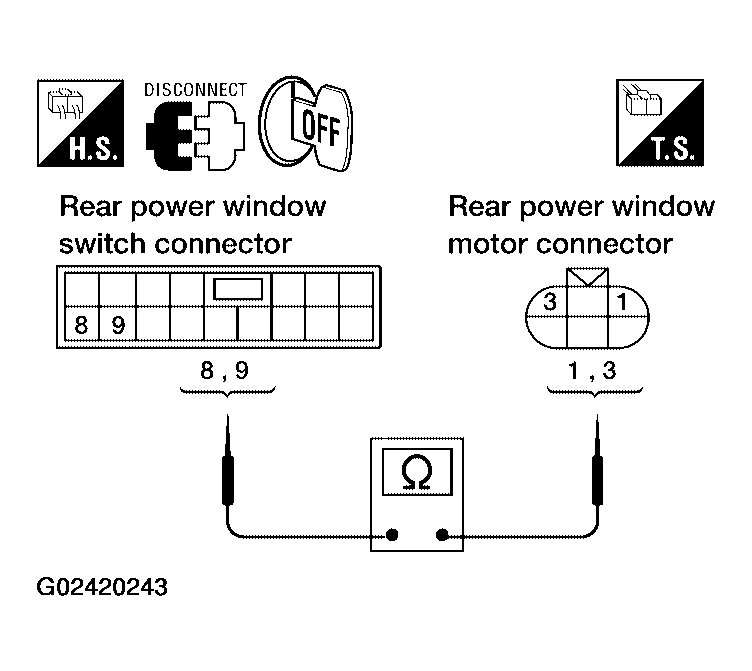

  Fig 3: Checking Continuity Between Rear Power Window Switch LH Connector D203 Terminal 8, 9 And Rear Power Window Motor LH Connector D204 Terminal 1, 3
  Courtesy of NISSAN MOTOR CO., U.S.A.
