Power Window Serial Link Check Rear LH or RH (With Front and Rear Power Window Anti-pinch System)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK REAR POWER WINDOW SWITCH LH OR RH
1. Replace with operative rear power window switch LH or RH.
2. Does window operates normally?
OK or NG
- OK: Replace rear power window switch LH or RH.
- NG: GO TO 2.
CHECK POWER WINDOW SERIAL LINK CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect main power window and door lock/unlock switch and rear power window switch LH or RH.
3. Check continuity between main power window and door lock/unlock switch connector D7 terminal 14 and rear power window switch connector D203 (LH) or D303 (RH) terminal 16.
  14 (Y) - 16 (Y): Continuity should exist.
OK or NG
- OK: Replace main power window and door lock/unlock switch.
- NG: Repair or replace harness.

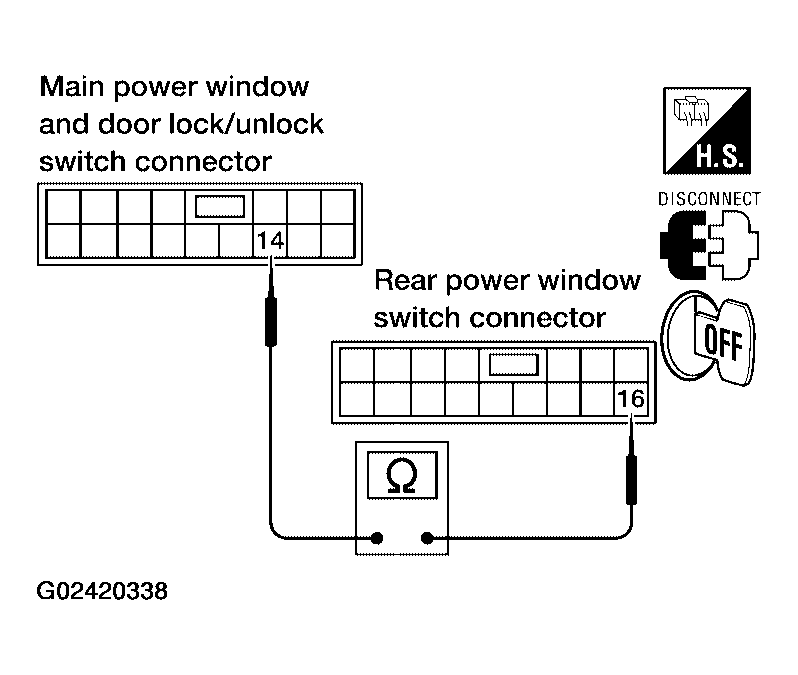

  Fig 1: Checking Power Window Serial Link Circuit
  Courtesy of NISSAN MOTOR CO., U.S.A.
