Limit Switch Circuit Check Rear LH and RH (With Front and Rear Anti-pinch System)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK REAR POWER WINDOW MOTOR LH AND RH LIMIT SWITCH SIGNAL
1. Turn ignition switch ON.
2. Check voltage between rear power window switch LH or RH connector and ground.

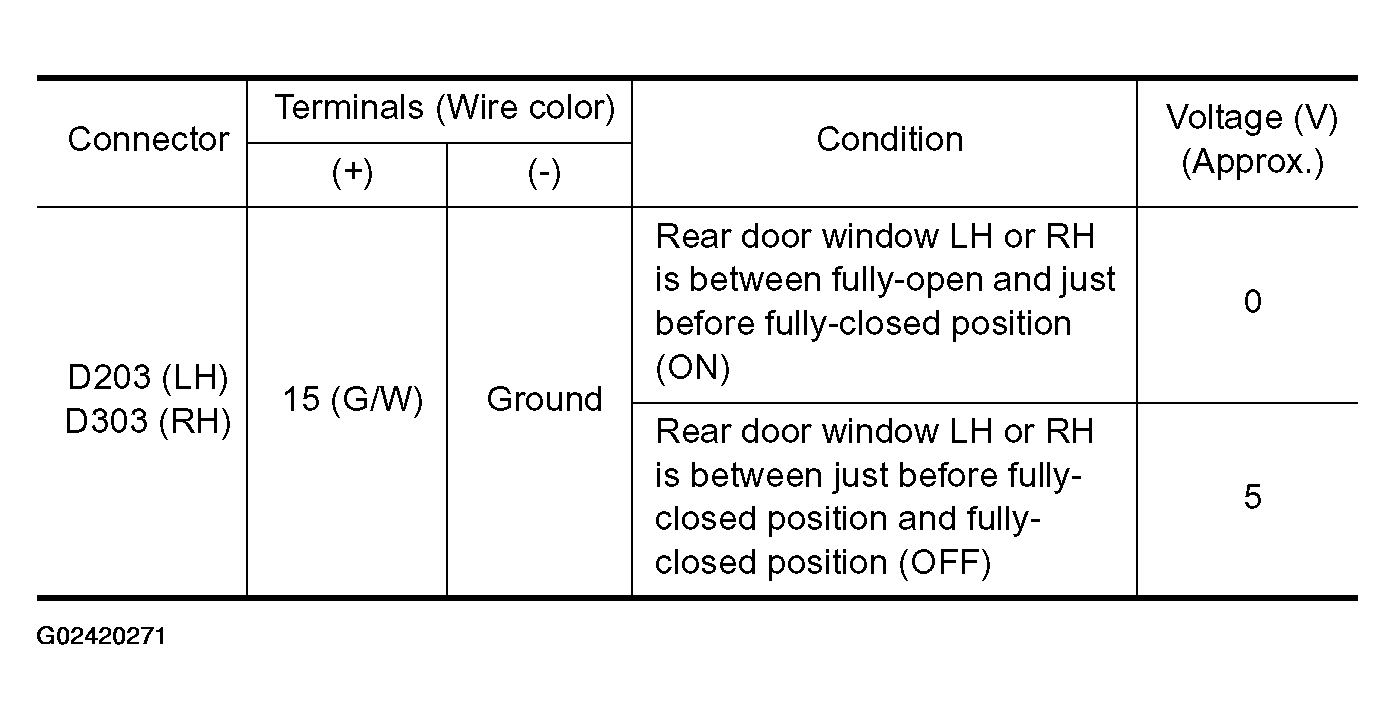

  Fig 1: Terminals Voltage Reference Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

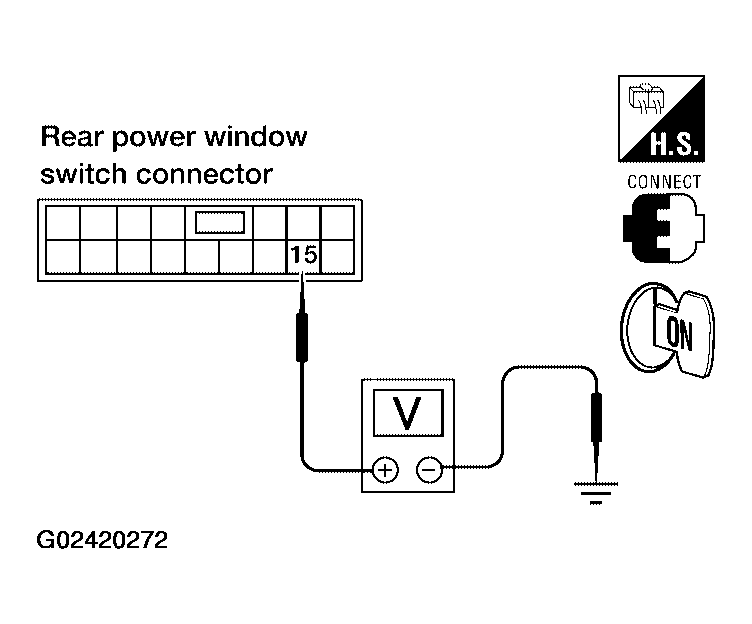

  Fig 2: Checking Voltage Between Rear Power Window Switch LH Or RH Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Limit switch circuit is OK.
- NG: GO TO 2.
CHECK LIMIT SWITCH GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear power window switch LH or RH.
3. Check continuity between rear power window motor LH or RH connector D204 (LH), D304 (RH) terminal 6 and ground.
  6 (W/B) - Ground: Continuity should exist.
OK or NG
- OK: GO TO 4.
- NG: GO TO 3.

  Fig 3: Checking Continuity Between Rear Power Window Motor LH Or RH Connector D204 (LH), D304 (RH) Terminal 6 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK HARNESS CONTINUITY
1. Disconnect rear power window switch LH or RH.
2. Check continuity between rear power window motor LH or RH connector D204 (LH), D304 (RH) terminal 6 and rear power window switch LH or RH connector D203 (LH), D303 (RH) terminal 3.
  6 (W/B) - 3 (W/B): Continuity should exist.
OK or NG
- OK: Replace rear power window switch LH or RH.
- NG: Repair or replace harness.

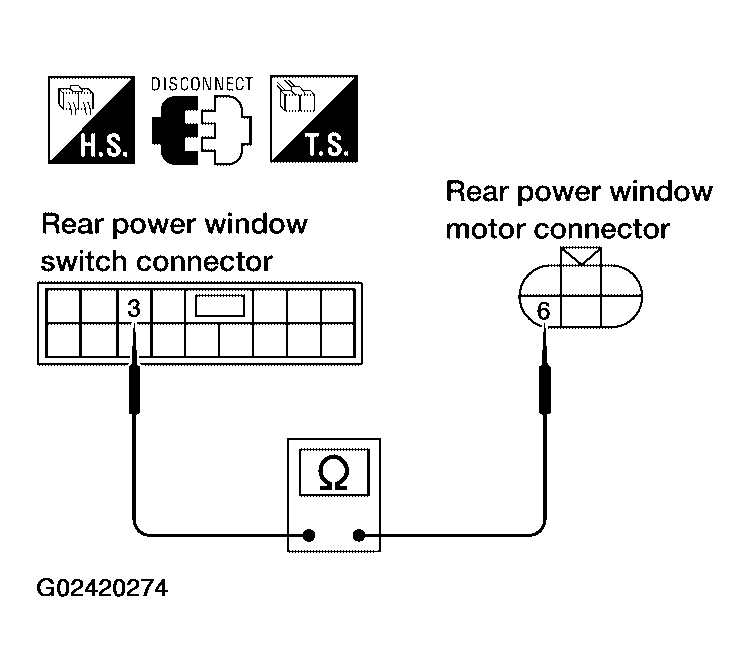

  Fig 4: Checking Harness Continuity
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK REAR POWER WINDOW SWITCH LH OR RH OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Check voltage between rear power window switch LH or RH harness connector D203 (LH) or D303 (RH) terminal 15 (G/W) and ground.
  15 (G/W) - Ground: Approx. 5V
OK or NG
- OK: GO TO 5.
- NG: Replace rear power window switch LH or RH.

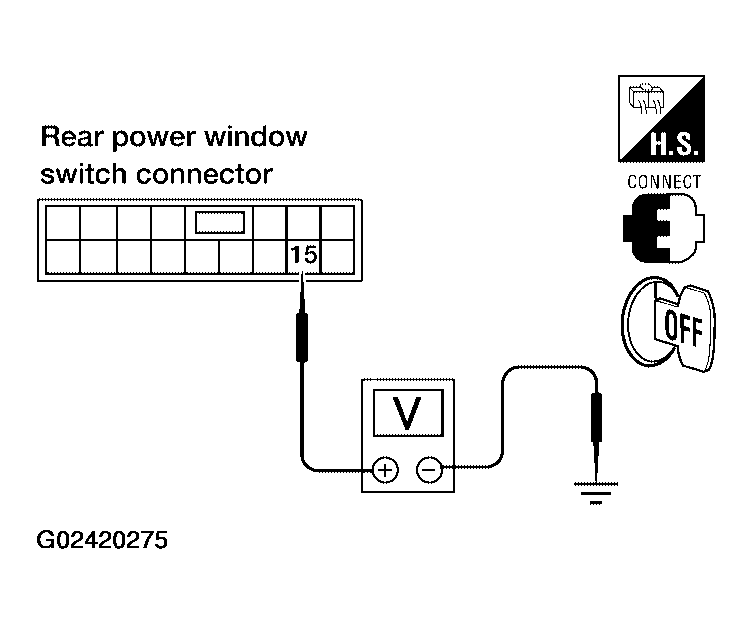

  Fig 5: Checking Voltage Between Rear Power Window Switch LH Or RH Harness Connector D203 (LH) Or D303 (RH) Terminal 15 (G/W) And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect rear power window switch LH or RH.
3. Check continuity between rear power window switch LH or RH connector D203 (LH), D303 (RH) terminal 15 and rear power window motor LH or RH connector D204 (LH), D304 (RH) terminal 2.
  15 (G/W) - 2 (G/W): Continuity should exist.
OK or NG
- OK: GO TO 6.
- NG: Repair or replace harness.

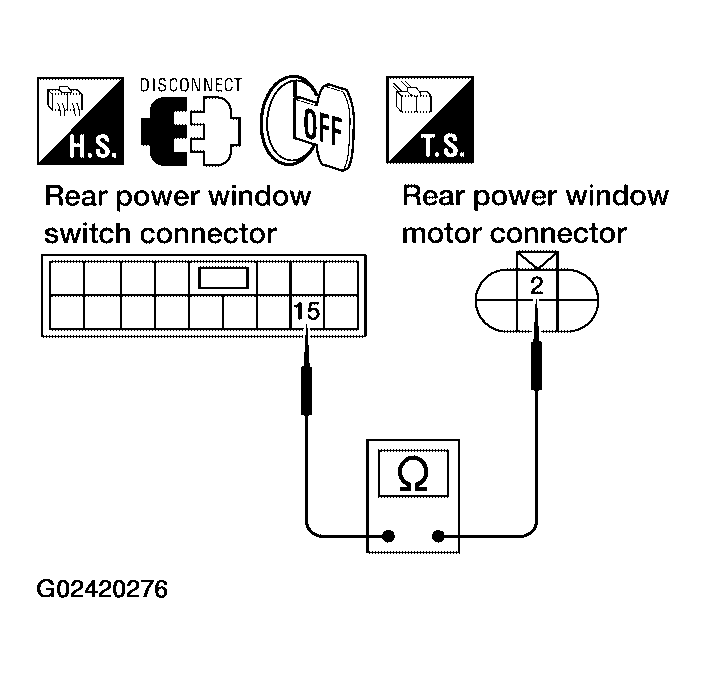

  Fig 6: Checking Harness Continuity
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK LIMIT SWITCH
1. Connect rear power window motor LH or RH and rear power window switch LH or RH.
2. Turn ignition switch ON.
3. Check continuity between rear power window motor LH or RH connector D204 (LH), D304 (RH) terminal 2 and 6.

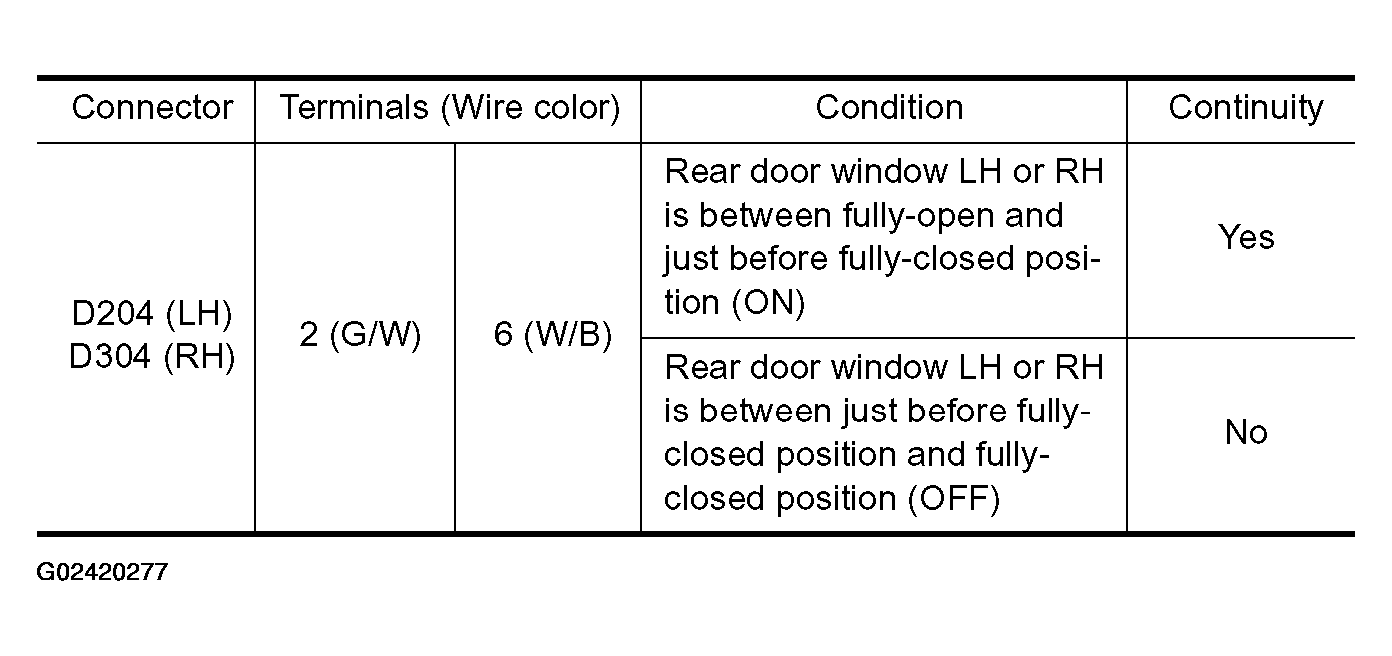

  Fig 7: Terminals Continuity Reference Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

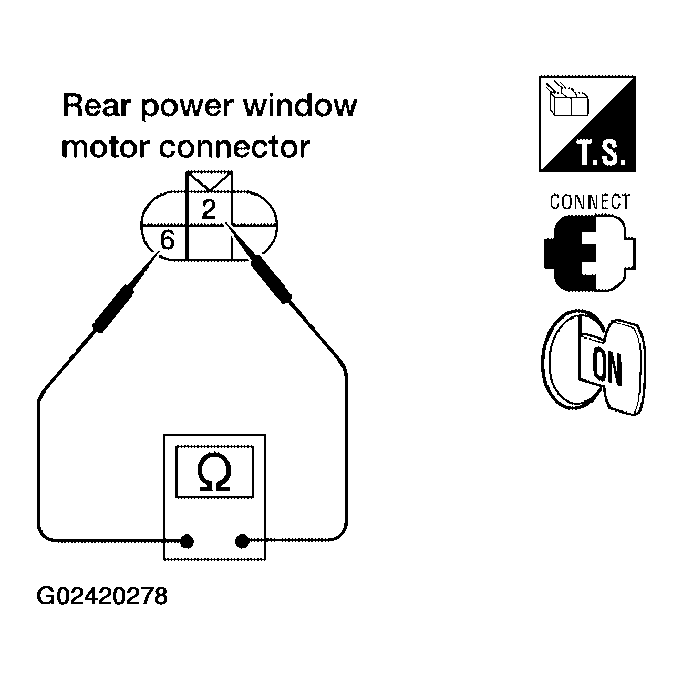

  Fig 8: Checking Continuity Between Rear Power Window Motor LH Or RH Connector D204 (LH), D304 (RH) Terminal 2 And 6
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Repair or replace harness.
- NG: Replace rear power window motor LH or RH. Refer to "REAR DOOR GLASS AND REGULATOR ".
