Front Power Window Motor LH Circuit Check (With Front Left and Right Only Power Window Anti-pinch System)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between main power window and door lock/unlock switch connector D7 terminal 8, 11 and ground.

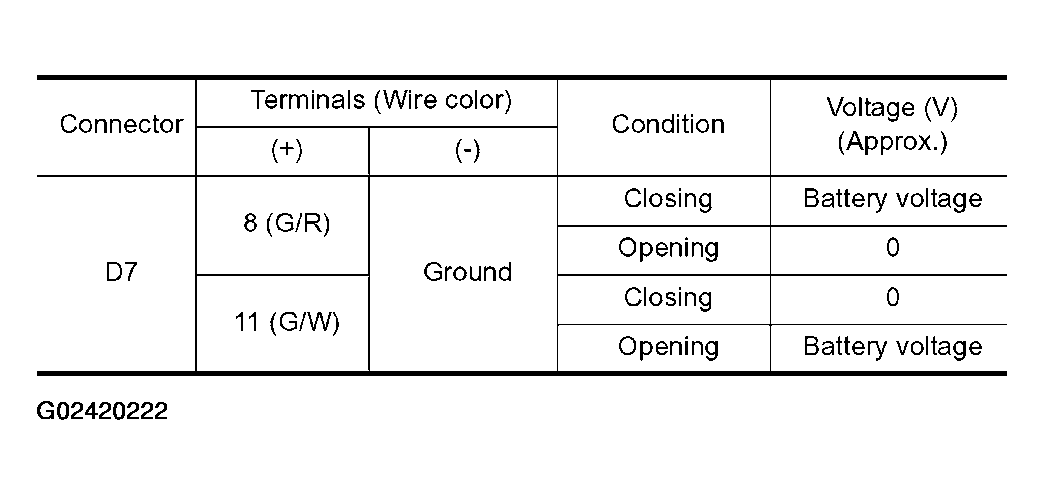

  Fig 1: Terminals Voltage Reference Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

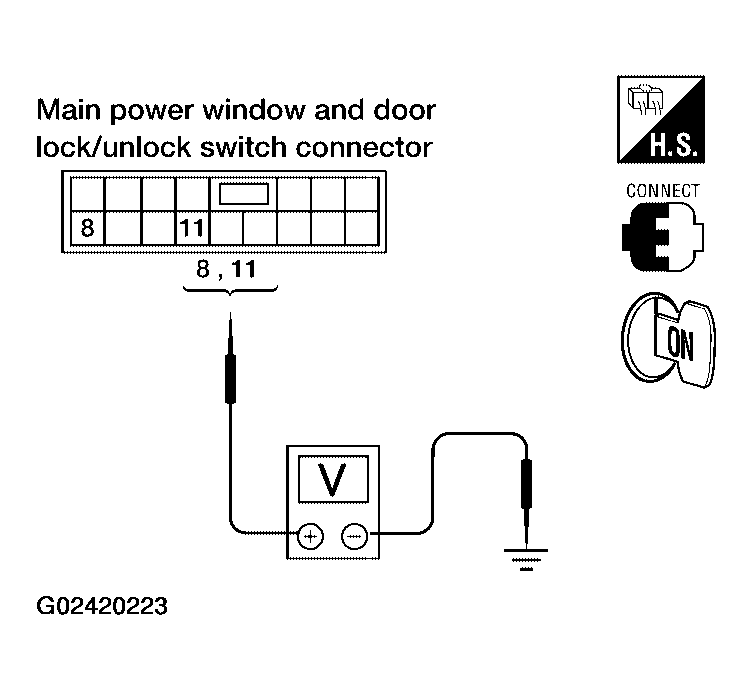

  Fig 2: Checking Voltage Between Main Power Window And Door Lock/Unlock Switch Connector D7 Terminal 8, 11 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: GO TO 2.
- NG: Replace main power window and door lock/unlock switch.
CHECK POWER WINDOW MOTOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect main power window and door lock/unlock switch and front power window motor LH.
3. Check continuity between main power window and door lock/unlock switch connector D7 terminal 8, 11 and front power window motor LH connector D9 terminal 1, 2.
  8 (G/R) - 1 (G/R): Continuity should exist.

  11 (G/W) - 2 (G/W): Continuity should exist.
OK or NG
- OK: Replace front power window motor LH. Refer to "FRONT DOOR GLASS AND REGULATOR ".
- NG: Repair or replace harness.

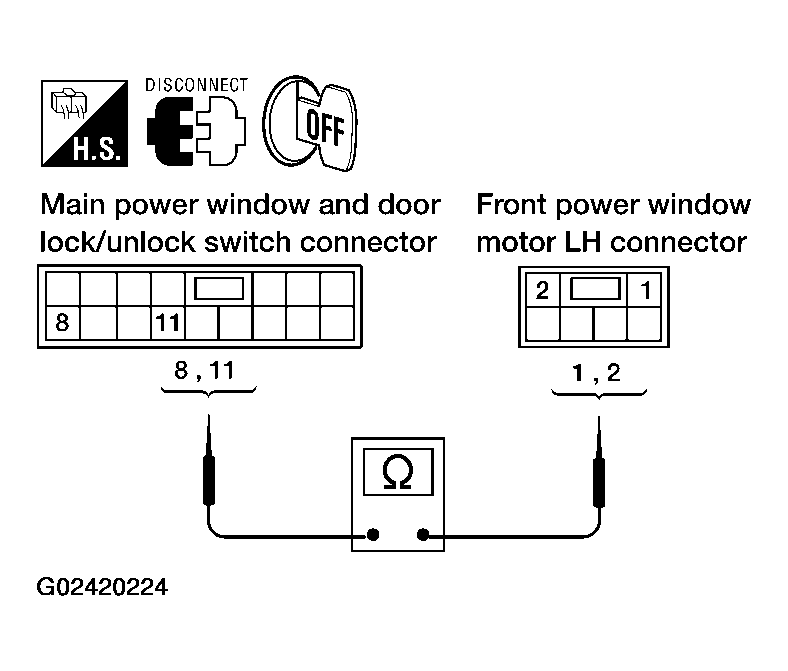

  Fig 3: Checking Power Window Motor Circuit
  Courtesy of NISSAN MOTOR CO., U.S.A.
