Door Switch Check

With CONSULT-II

Check front door switches ("DOOR SW-DR" and "DOOR SW-AS") in "DATA MONITOR" mode with CONSULT-II.

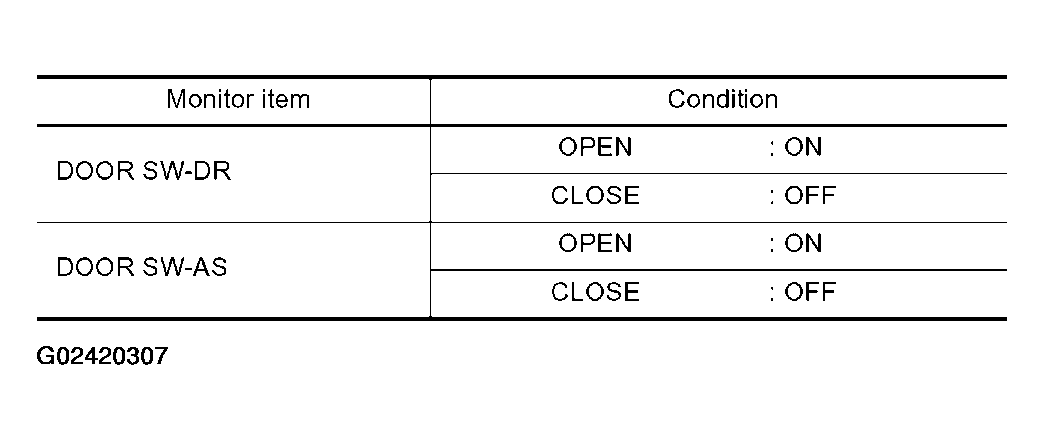

Fig 1: Monitor Item Condition Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

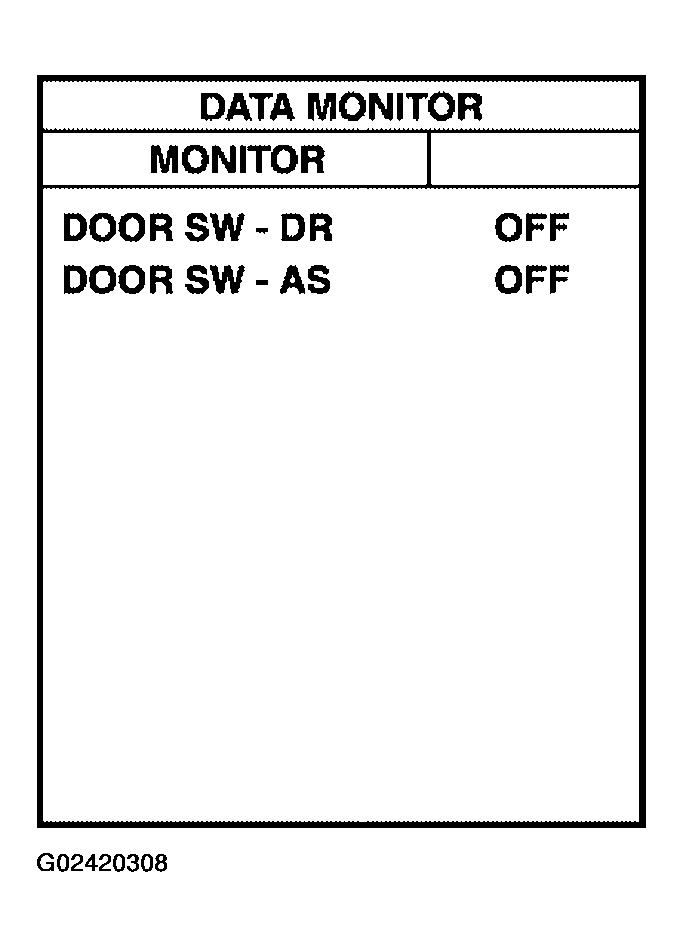

Fig 2: DATA MONITOR - CONSULT II Display Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector and ground.

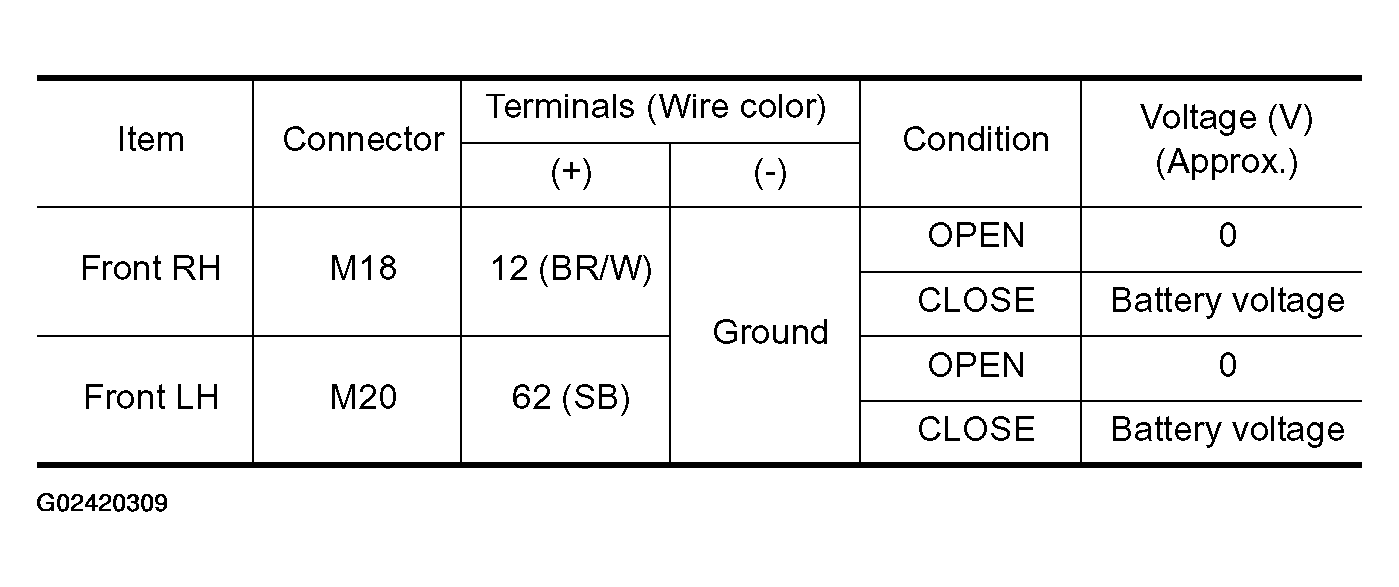

Fig 3: Terminals Voltage Reference Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

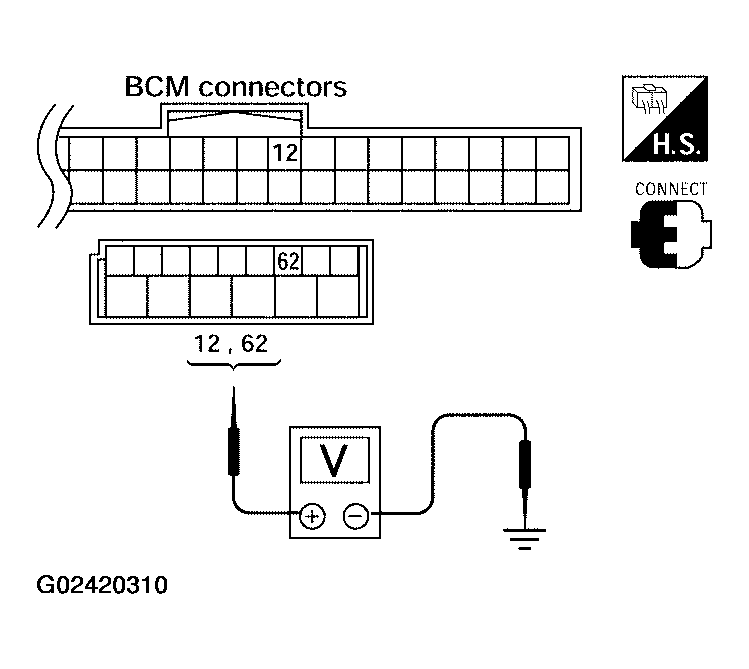

Fig 4: Checking Voltage Between BCM Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: Front door switch is OK.
• NG: GO TO 2.

1. Turn ignition switch OFF.
2. Disconnect front door switch LH or RH and BCM connector.

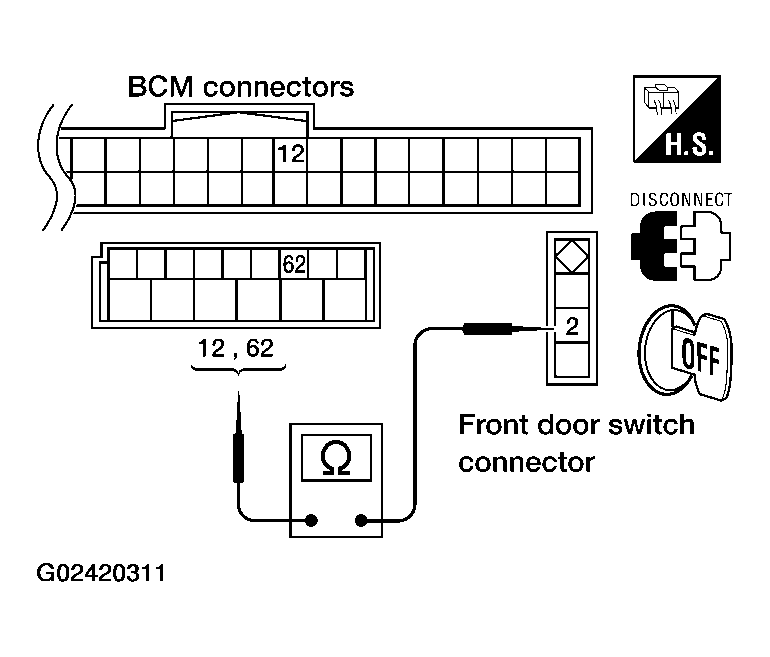

3. Check continuity between front door switch connector B8 (LH) or B108 (RH) terminal 2 and BCM connector M18 terminal 12 and connector M20 terminal 62.

   Front LH

   2 (SB) - 62 (SB): Continuity should exist.

   Front RH

   2 (BR/W) - 12 (BR/W): Continuity should exist.

4. Check continuity between front door switch connector B8 (LH) or B108 (RH) terminal 2 and ground.

   2 (SB or BR/W) - Ground: Continuity should not exist.

   Fig 5: Checking Continuity Between Front Door Switch Connector B8 (LH) Or B108 (RH) Terminal 2 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: GO TO 3.
• NG: Repair or replace harness.

1. Disconnect front door switch LH or RH.
2. Check continuity between each front door switch terminal 2 and body ground part of front door switch.

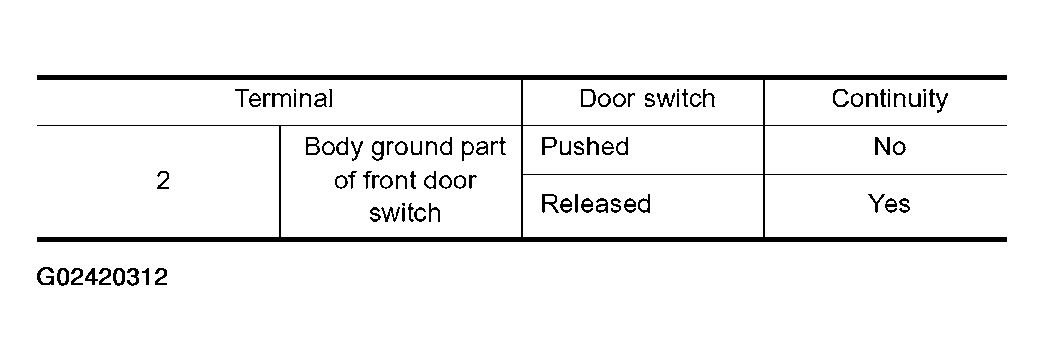

   Fig 6: Terminals Continuity Reference Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

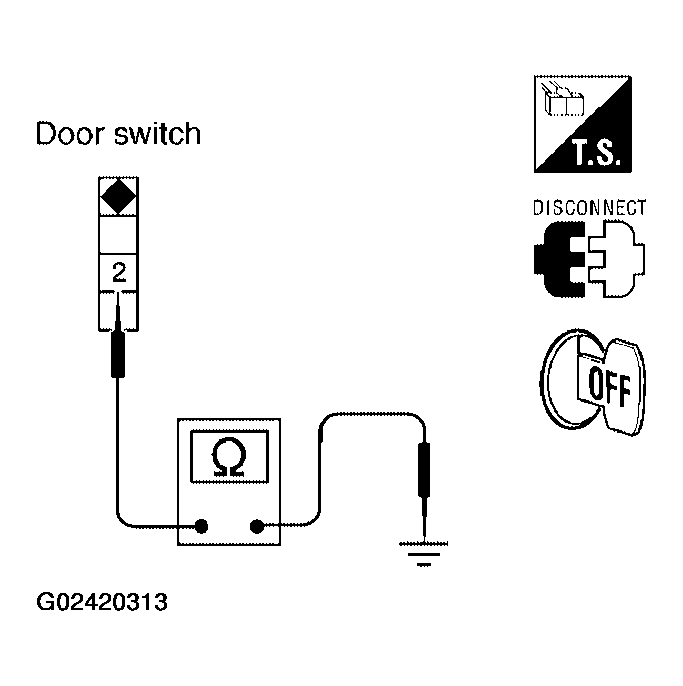

   Fig 7: Checking Continuity Between Front Door Switch Terminal 2 And Body Ground Part Of Front Door Switch

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: Further inspection is necessary. Refer to .
• NG: Replace malfunctioning front door switch.
