Wiring Diagram - I/MIRR -

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to PG-POWER, see 1 POWER DISTRIBUTION .

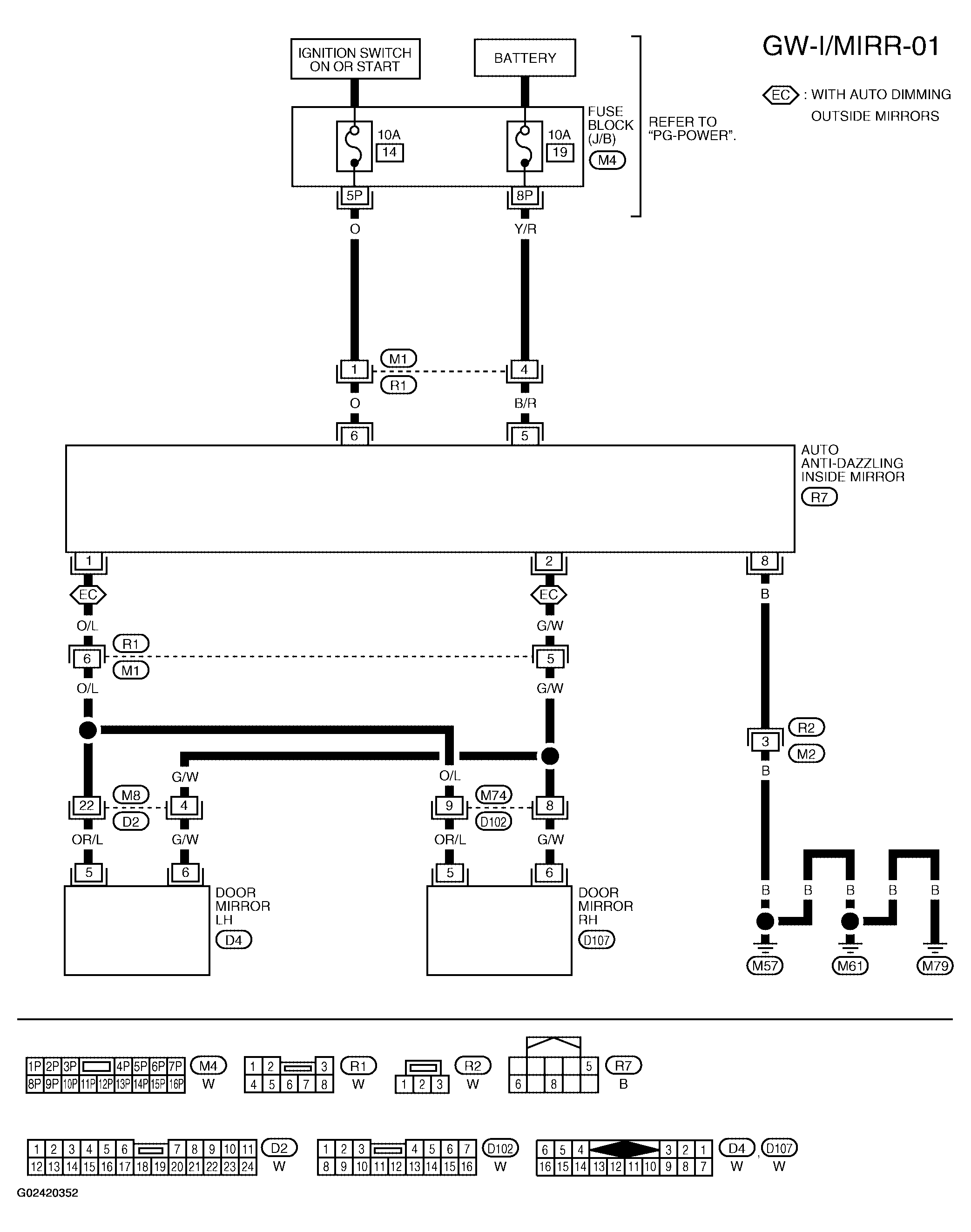

Fig 1: GW-I/MIRR-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
