Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center console. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Disconnect warning lamp connector.
  3. Remove all parking brake cable mounting nuts and bolts, loosen and remove adjusting nut.

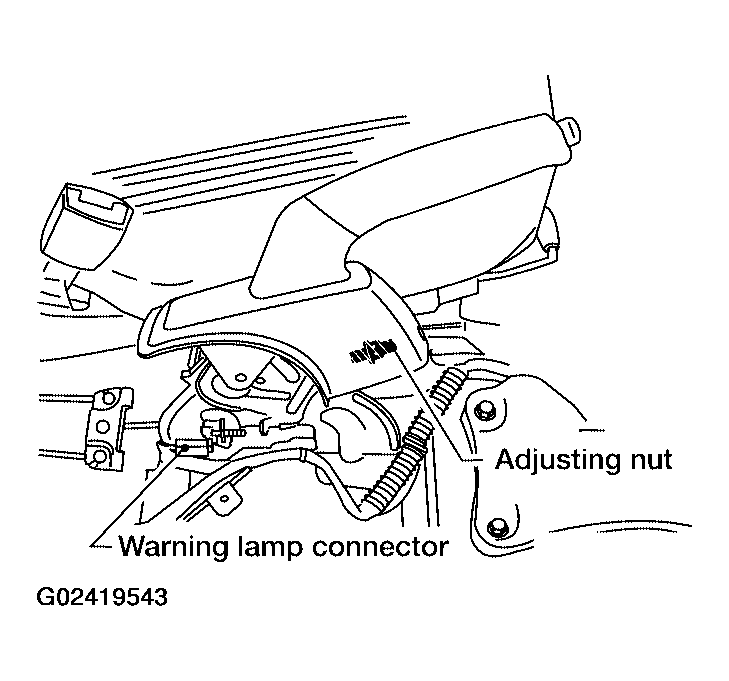

    Fig 1: Removing Adjusting Nut
    G02419543Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the rear brake rotor. Refer to FRONT & REAR DISC PADS
  5. Remove the lock plate mounting bolt.
  6. Remove the pin, then the parking brake cable.

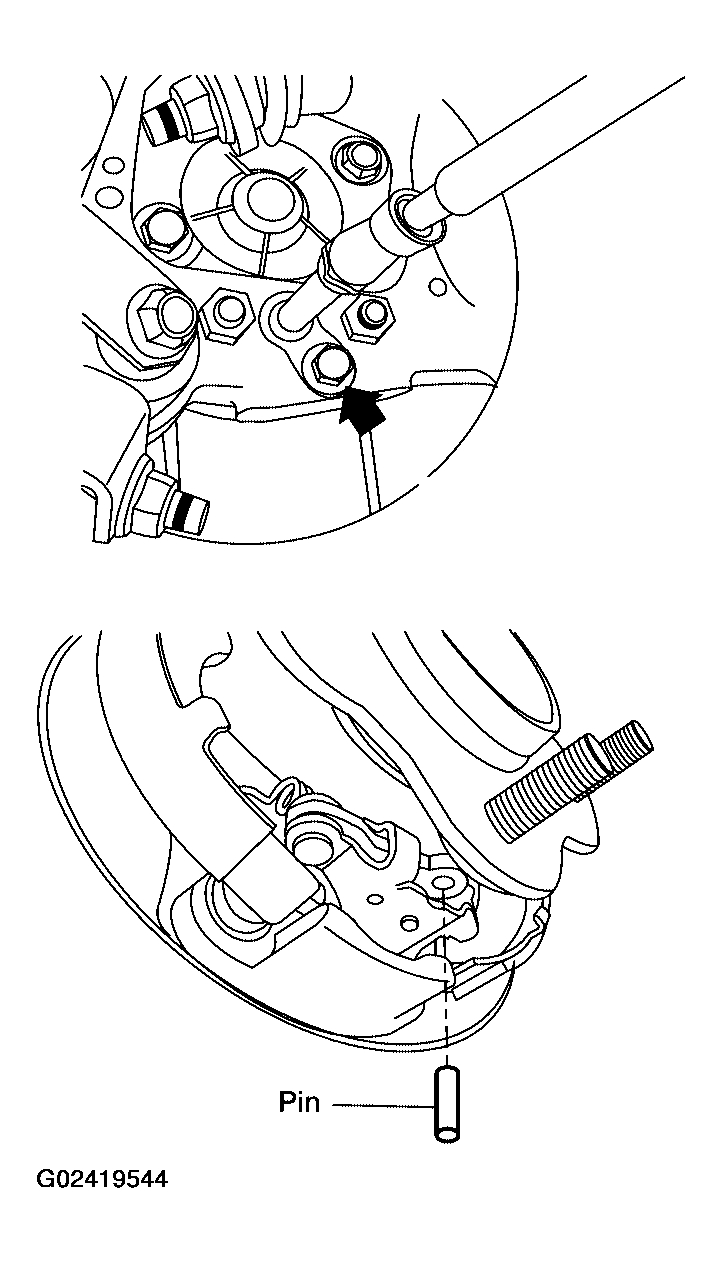

    Fig 2: Removing Lock Plate Mounting Bolt
    G02419544Courtesy of NISSAN MOTOR CO., U.S.A.
