5-Speed A/T Models: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the starter insulator.

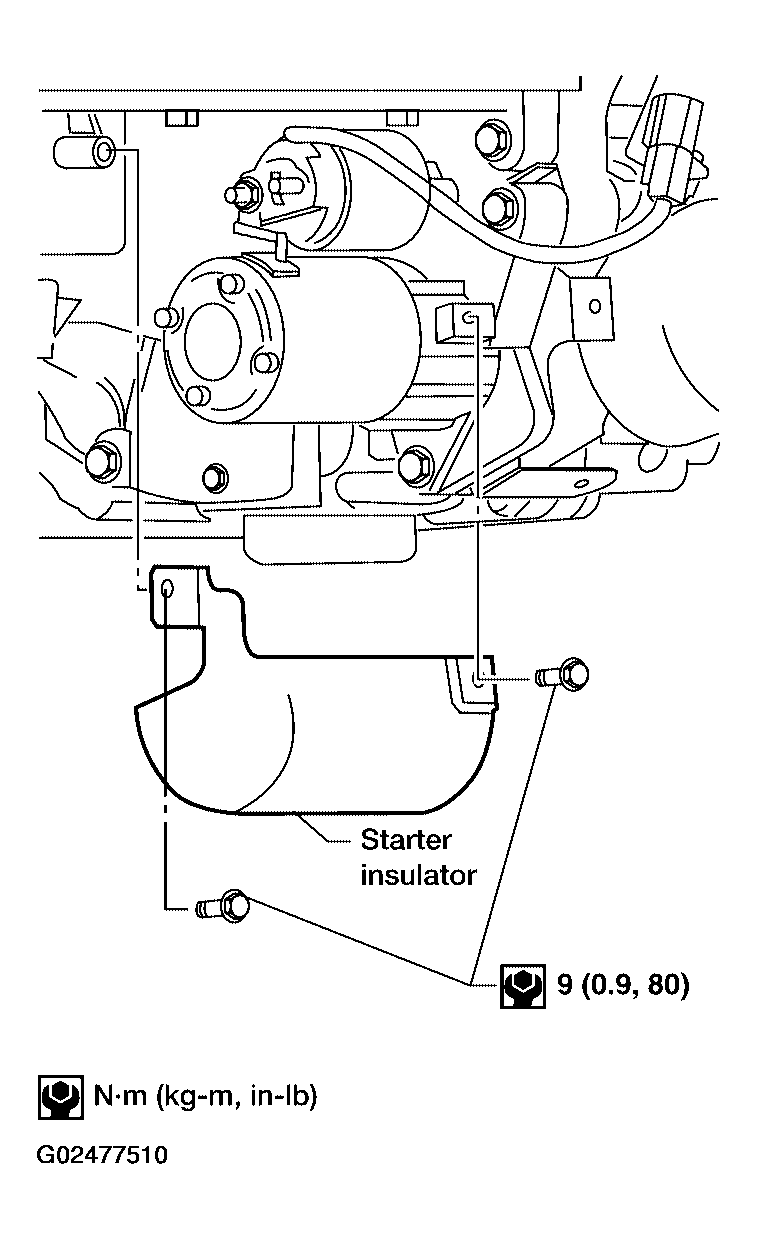

    Fig 1: Starter Insulator With Torque Specifications
    G02477510Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the harness bracket and harness protector from the starter engine room harness.
  4. Disconnect the starter harness connectors.
  5. Remove the two starter mounting bolts, using power tools.
  6. Remove the starter.

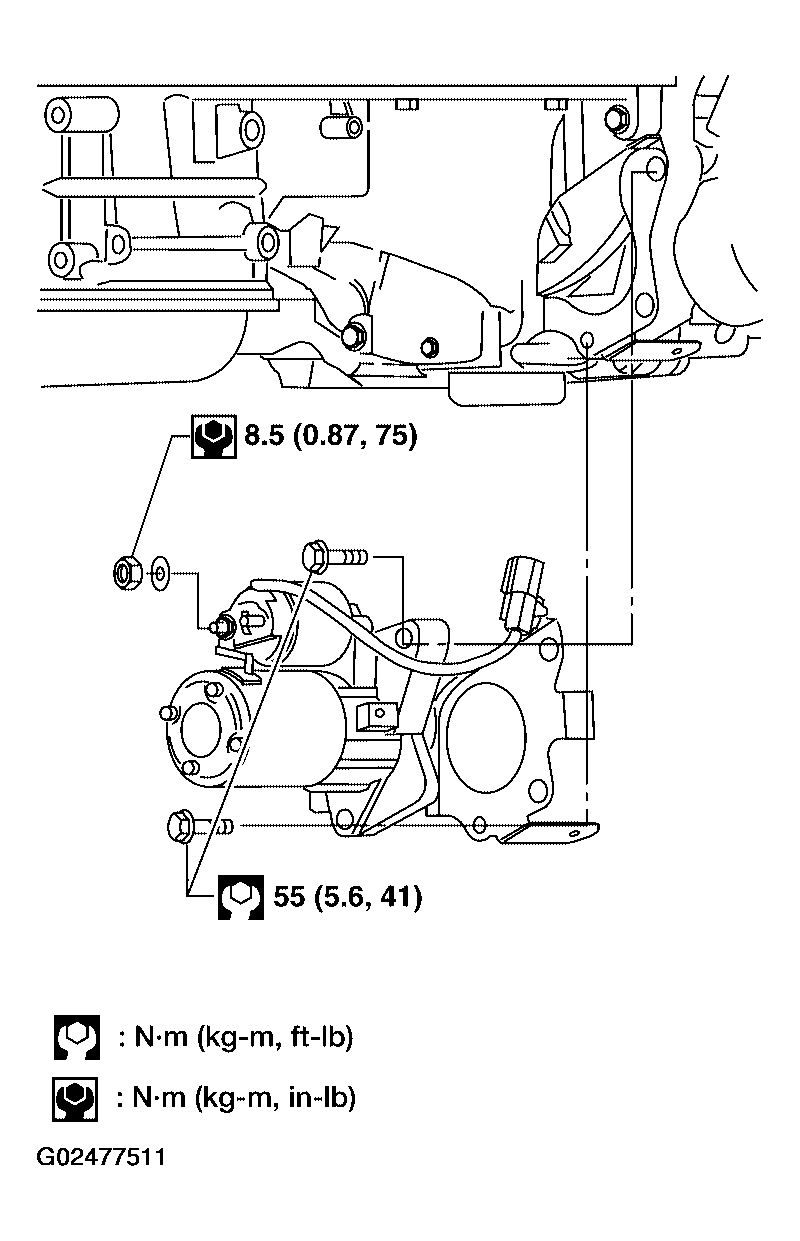

    Fig 2: Starter Motor (5 Speed A/T Models) With Torque Specifications
    G02477511Courtesy of NISSAN MOTOR CO., U.S.A.
