Wiring Diagram - CHARGE -

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to PG-POWER, see GROUND DISTRIBUTION or POWER DISTRIBUTION .

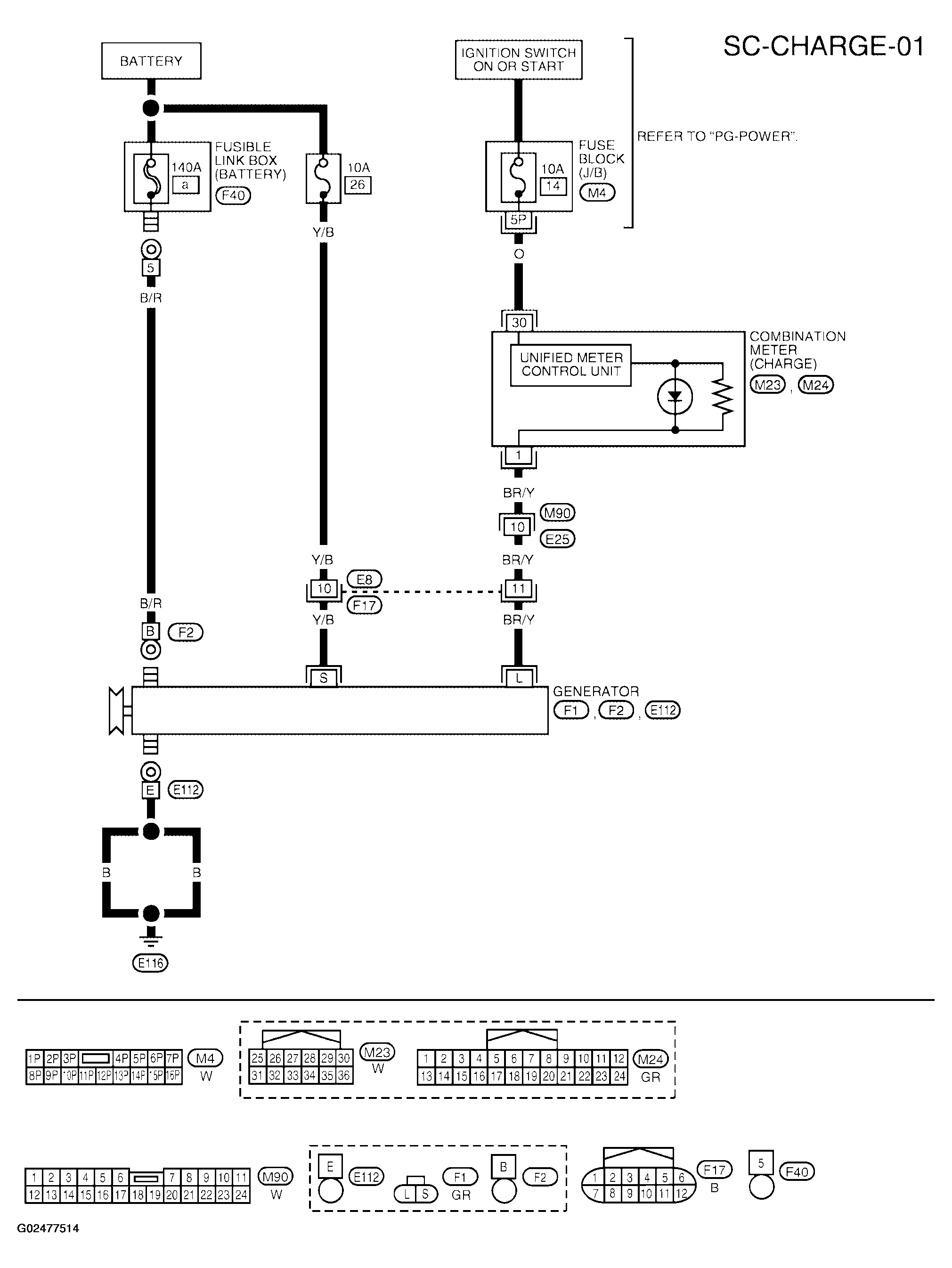

Fig 1: Wiring Diagram SC-CHARGE-01

Courtesy of NISSAN MOTOR CO., U.S.A.
