Check "B" Terminal Circuit

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK "B" TERMINAL CONNECTION
Check to see if "B" terminal is clean and tight.

OK or NG
- OK: GO TO 2. Confirm repair by performing complete Battery/Starting/Charging system test.
- NG: Repair "B" terminal connection.
CHECK GENERATOR "B" TERMINAL CIRCUIT
Check voltage between generator connector F2 terminal B (B/R) and ground using a digital circuit tester.

Battery voltage should exist.

OK or NG
- OK: GO TO 3.
- NG: Check the following.
  - 140A fusible link [letter a , located in fusible link box (battery)]
  - Harness for open or short between generator and fusible link

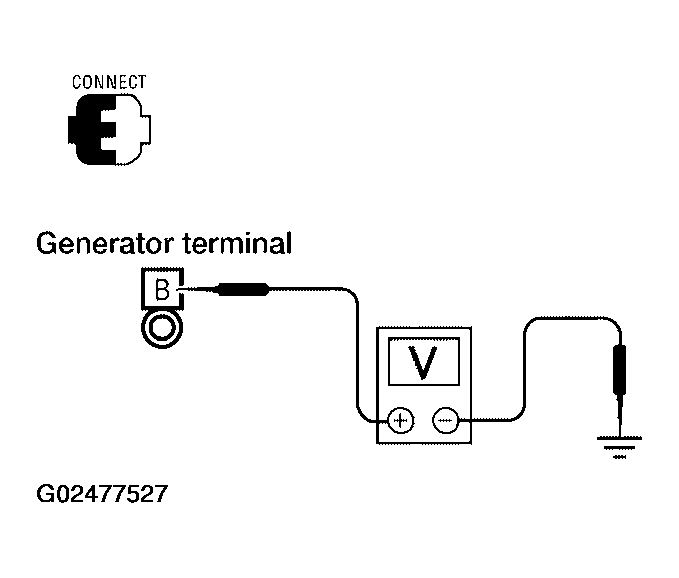

    Fig 1: Checking Voltage Between Terminal B And Ground
    Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK "B" TERMINAL CONNECTION QUALITY (VOLTAGE DROP TEST)
Check voltage between generator connector F2 terminal B (B/R) and battery positive terminal using a digital circuit tester.

With engine running at idle and warm: Less than 0.2V

OK or NG
- OK: GO TO 4.
- NG: Check harness between the battery and the generator for poor continuity.

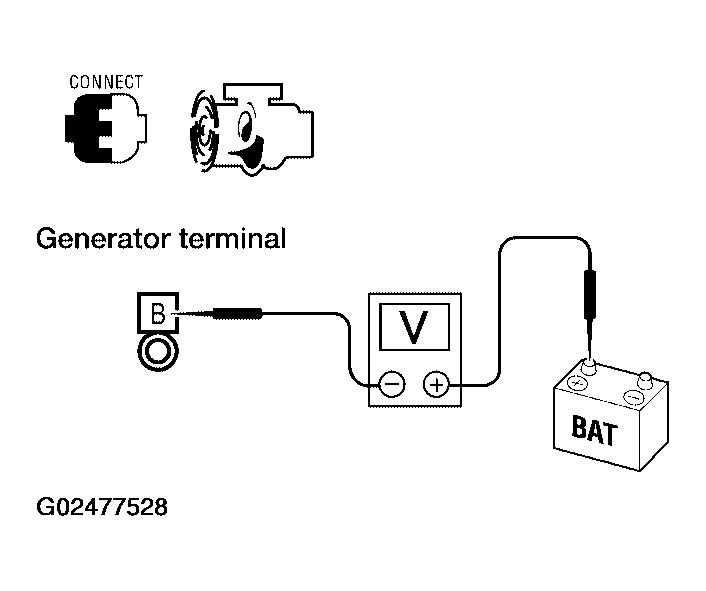

  Fig 2: Checking Voltage Between Terminal B And Battery Positive Terminal
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK GENERATOR DRIVE BELT TENSION
Check generator drive belt tension. Refer to SPECIFICATIONS & DRIVE BELT ROUTING .

OK or NG
- OK: Replace the generator. Refer to "REMOVAL ". Confirm repair by performing complete battery/starting/charging system test.
- NG: Readjust drive belt tension. Refer to TENSION ADJUSTMENT .
